Grundig LCD TV Power Supply (SMPS VTY194-32) schematic for 22, 28, 32, 40 and 48 inch

For Models:

22QUER521, 22QUER4400, 22QUER4421, 22QUER5420, 22QUER5400,

22QUER5421, 22VLE5421, 22VLE5520, 28VLE4400, 28VLE4401,

28VLE4500, 28VLE5401, 28VLE5401, 28VLE5500, 32QUER555,

32QUER555, 32QUER4400, 32QUER4401, 32QUER5400, 32QUER5400,

32QUER5405, 32QUER5405, 32QUER5406 , 40QUER521, 40QUER555,

40QUER685, 40VLE4420, 40VLE4421, 40VLE5420, 40VLE5421, 40VLE5425,

48QUER555, 48QUER685, 48QUER4420, 48QUER4421, 48QUER5420, 48QUER5421

Hamburg

28CLE5407, 32CLE5407, 40CLE5427, 48CLE5427.

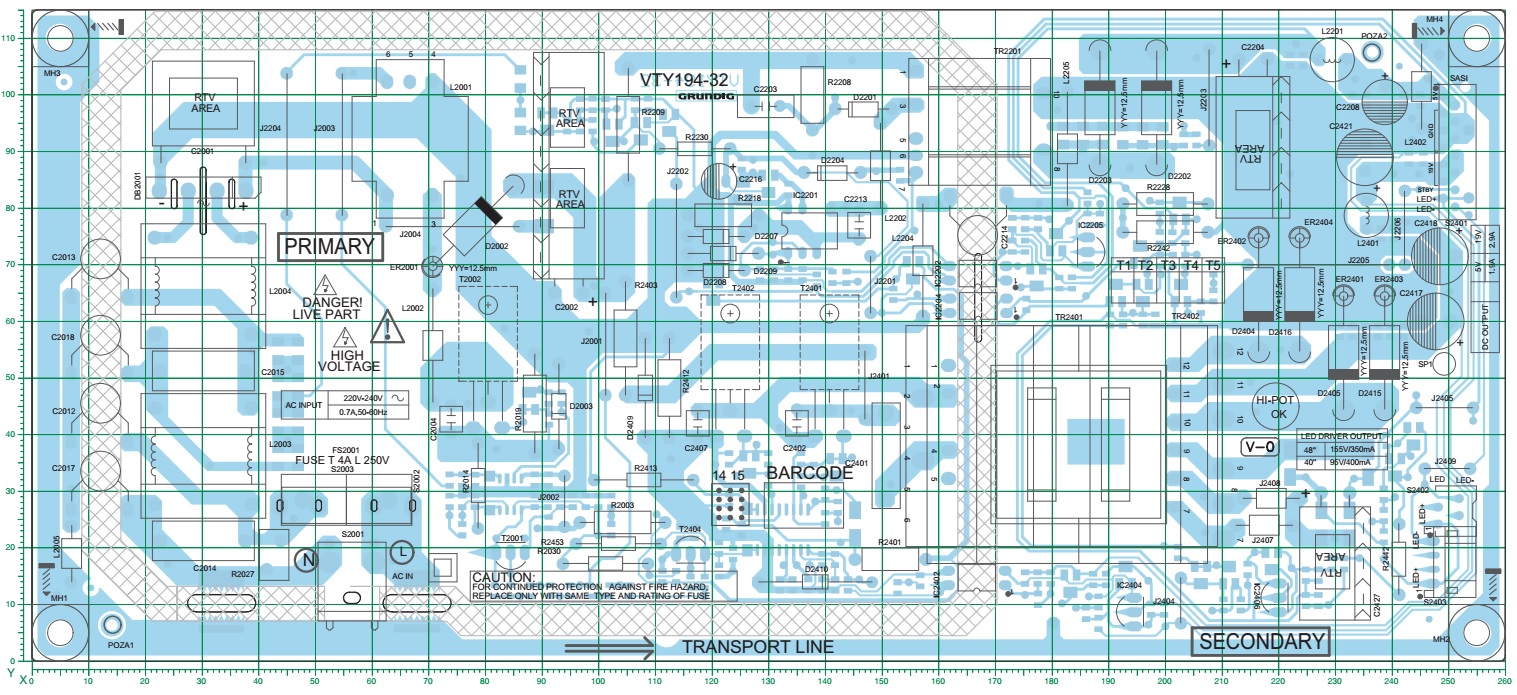

PWB - component and foil side

Schematic [Circuit diagram]

Click on the pictures to magnify
