Technical description and composition of the PHILIPS 52PFL9606T TV, type of panel and applicable modules. The composition of the modules.PHILIPS LED
Model: 52PFL9606T / 12
Chassis / Version: Q551.2E LA
Panel: LK520D3LB63 (SRPJ)
T-CON: RUNTK 4920TP CPWBX 4920TP & 3104_303_54152 (310432867067)
LED driver (backlight): RUNTK4949TPZZ
Power Supply (PSU): DPS-318AP
PWM Power: DDA006
MainBoard: 3104_313_65392 (310432866782) & 3104_313_65372
IC MainBoard: 29F4G08ABAD
Tuner: TH2627
Specifications 52PFL9606T
PHILIPS 52PFL9606T
General repair guidelines for TV LCD LED
Possible manifestations of defects
- The PHILIPS 52PFL9606T TV does not turn on and does not show any signs of operability at all. There is no reaction to the remote control and control buttons from the front panel.
Most likely in this case, the main switching power supply (IIPS) DPS-318AP is faulty. It is necessary to measure its output voltages, and in case of their absence (full or partial), it is necessary to check the serviceability of the power switches of the converters and rectifier diodes for the presence of a possible short circuit.
In the event of a breakdown in the secondary circuits of the converter, it can usually fail in short circuit mode, and in the event of a short circuit in the power elements of the primary circuit, the mains fuse or current sensor at the source of the key most often breaks.
Breakdown of power switches (MosFet) in pulsed sources is sometimes caused by malfunctions of other circuit elements, for example, in circuits supplying a PWM controller, frequency-setting or damper ones, as well as in negative feedback circuits (OOS) of stabilization. PWM controllers (PWM) DDA006, if they do not have visible damage to the case and open short circuit between the terminals, are usually checked by replacement.
- There is no image, there is sound, it is responding to the remote control. Or immediately after turning on for a second, the image may appear and immediately disappear.
In some of these cases, the malfunction is caused by a lack of backlighting on the display. The reason for this may be a break in the LED circuit, or a problem in stabilizing their power supply.
To check the health in the LED circuit, it is better to use a current source with a maximum voltage of 200V. We do not recommend using any voltage sources for this purpose. You can check each LED individually with a simple Chinese multimeter (powered by 9 volts) in the P-N-junction test mode. If you connect the red probe of the multimeter to the anode of the LED, and the black to its cathode, then the 3-volt LED will light up slightly, and in the opposite direction you can detect the transition of the emergency zener diode. A zener diode PN junction indirectly indicates a LED-a
- The TV does not turn on, the indicator indicates standby or operating mode, or blinks.
Repair or diagnostics of the 3104_313_65392 motherboard should begin by checking the stabilizers and power converters needed to power the microcircuit and matrix. If necessary, update or replace the software (software). Sometimes they require checking or replacing (if necessary) the elements of the MainBoard - 29F4G08ABAD. In cases where the BGA processor is used, its malfunction is usually detected by the local heating method.
In the absence of tuning to the channels of on-air or cable television, you should make sure that the software is correct, as well as in accordance with the ratings of the supply voltage at the terminals of the tuner TH2627. It is also necessary to check the presence of pulses of data exchange between the tuner and the processor via the I2C bus using an oscilloscope.
It should be remembered! Attempts to self-repair a PHILIPS 52PFL9606T TV, in the absence of the necessary qualifications and experience, are categorically not recommended and are fraught with negative consequences, up to the complete non-serviceability of the device!
The matrix is installed (LED-panel) Main features of the PHILIPS 52PFL9606T device:
The matrix (LED panel) LK520D3LB63 (SRPJ) is installed.
The matrix control uses the Timing Controller (T-CON) RUNTK.
The LED driver RUNTK4949TPZZ is used to power the backlight LEDs.
The necessary supply voltages for all nodes of the PHILIPS 52PFL9606T TV are generated by the DPS-318AP power supply module or its analogs using DDA006 microcircuits.

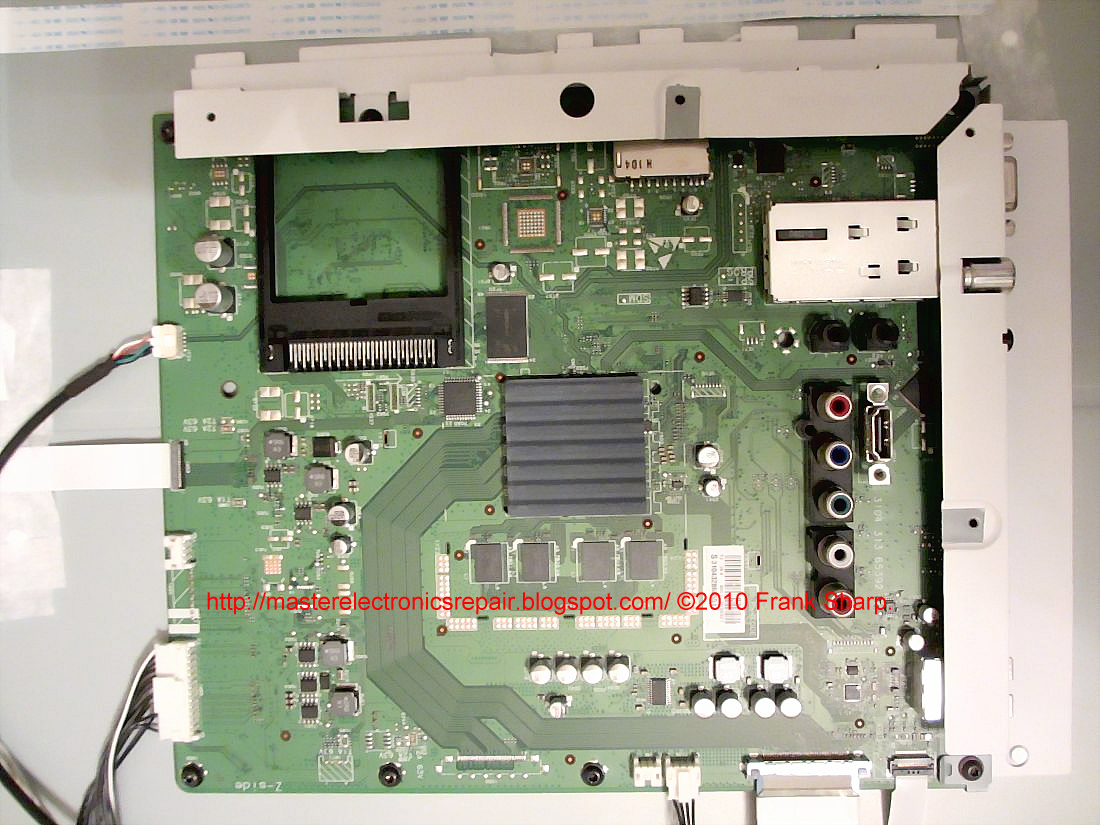

MainBoard - the main board (motherboard) is a module 3104_313_65392, using microchips 29F4G08ABAD and others.
Tuner TH2627 provides reception of television programs and tuning to channels. L) LK520D3LB63 (SRPJ).
The matrix control uses the Timing Controller (T-CON) RUNTK.
The LED driver RUNTK4949TPZZ is used to power the backlight LEDs.
The necessary supply voltages for all nodes of the PHILIPS 52PFL9606T TV are generated by the DPS-318AP power supply module or its analogs using DDA006 microcircuits.
MainBoard - the main board (motherboard) is a 3104_313_65392 module, using 29F4G08ABAD chips and others.
The TH2627 tuner provides TV reception and channel tuning.
