ACER AT-2602 - AT2603 - DISASSEMBLE PROCEDURE

ACER AT-2602 - AT2603 - DISASSEMBLE PROCEDURE




DISSASSEMBLY
  • Turn off the power to the system and all peripheral.
  • Unplug the AC adapter and all power and signal cables from the system.
NOTE: There are several types of screws used to secure the product. The screws vary in length. Group the same type of screws together during the disassembly process as well as remember the screw location for each screw type. If you fasten the screws to the wrong location, the screws may cause damage to the product.
                                                    Click on the images to Enlarge.
Removing the TV Stand
  • Release the four screws fastening the TV stand.
  • Then pull out the TV stand.

Removing the I/O Cover
  • Release those screws marked in yellow for removing the I/O cover.
  • Slide the I/O cover shown as arrows then detach it.

Removing the Rear Cover
  • Release those screws as shown for removing the rear cover.
  • Then lift the rear cover.



Removing the ESD Shield Top
  • Release the nine screws securing the ESD shield top.
  • Then lift the ESD shield top as shown.


Removing the Main Board and I/O Board
  • This is the upper view of the main board and the location of those connectors.
  • Disconnect the keypad to main board cable.
  • Disconnect the speakers to main board cable.
  • Disconnect the LVDS to main board cable.



  • Disconnect the inverter board to main board cable.
  • Disconnect the power board to main board cable.
  • Disconnect the other power board to main board cable.
  • Disconnect the power switch to main board cable.
  • Release the ten screws fastening the main board and the I/O board.
  • Remove them together then separate them.

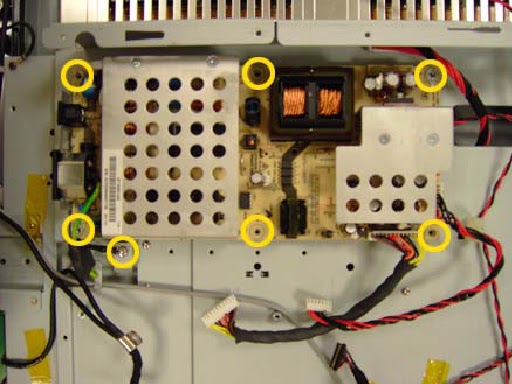

Removing the Power Supply Board
  • Release the seven screws fastening the power supply board and the cable then detach the power supply board.
Removing the PCD Holder
  • Release those screws marked in yellow.
  • Then lift the PCD holder as shown.





Removing the Keypad Board and the Power Button Board
  • Release the five screws fastening the keypad board then detach it.
  • Release the four screws fastening the power button board then detach it.
  • They are the keypad board and the power button board with their corresponding cables.


Removing the LCD
  • Release the four screws on the LCD brackets.
  • Then lift the LCD.


Removing the Speakers
  • Release the four screws securing the speaker.
  • Repeat the anterior two steps to remove the other speaker.
