AKAI 21CT32FSR - HOW TO ENTER SERVICE MODE - +B ADJUSTMENT

AKAI 21CT32FSR - HOW TO ENTER SERVICE MODE - +B ADJUSTMENT - Factory Settings - Universal Remote Control Set-up Codes - {Click on Pictures to Zoom In}


+B ADJUSTMENT
  • Receive standard color pattern RF signal, or receive a good transmission signal, and  set picture to “Standard Mode”.
  • Adjust VR501 to get +B (VD631 -) voltage =110 V
IIC BUS CONTROL ADJUSTMENTS & ENTER AND EXIT SERVICE MODE
  • For remote controller of factory.
Continuous push [test] key on remote controller, the TV mode will change as follow:
NORMAL => M => BUS OPEN [you can select “M” ( factory mode ) or “normal” mode.]
  • For remote controller of user
Push [menu] key, àdisplay picture manual à  push digital key 8500 à display M.
Push [standby] key , exit factory mode and TV will be standby.
GEOMETRICAL ADJUSTMENT -MENU-8
Receive standard Crosshatch pattern signal for PAL system.
  • Adjust VSLOPE value to the horizontal line just appear from half bottom shadow.
  • Adjust VSHIFT value the center horizontal line corresponds to CRT vertical center.
  • Adjust Vamp value to get 90% of vertical picture contents would be displayed on CRT.
  • Adjust HSHIFT value to get the picture horizontal center correspond to CRT horizontal center.
  • Receive standard Crosshatch pattern signal for NTSC system, and again adjust.
AGC TOP ADJUSTMENT - MENU-7
Receive 60dBu (1mv)VH color bar signal adjust AGC value voltage from high to low to   picture noise reduce gradually to be just disappeared.
CRT CUT-OFF, WHITE  BALANCE & SUB-BRIGHT ADJUSTMENT
Receive gray and white 2 steps signal.
CRT cut off adjustment
  • Push [▲P+][▼P-] key to select “SC”, push [►V+][◄V-] key then automatically vertical scan will be stopped.
  • Adjust SCREEN control on Flyback transformer to get the darkest single horizontal line (red, green,or blue, sometimes shows more yellow, more purple or more white).
  • Push [V+][V-] key again, vertical scan work repeat.
  •  Select RD/BD menu.
  • Adjust RD/BD to get color temperature as x=281, y=311.
Sub-brightness adjustment (use stair case signal)
  • Select SB MENU.
  • Adjust SB to get the darkest step being on or off.
SHIP MODE - MENU-6
  • Select “SHIPMODE”, push [V+][V-]key may be shipped.
  • Note: Any increase the screens of FBT current, the darking single ought   no flyback line, AV state.

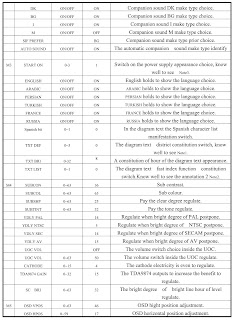

21" DEFAULT SETTINGS [IIC BUS CONTROL NTDA93X1]
Factory default settings

TEXT DEF : TXT_def = 0: Pan_Euro + Cyrillic
  1. Farsi English + French + Turkish
  2. Arabic + English + French + Turkish
  3. UKRAINIAN
Attention:
When TXT_def=0, will appear" the TXT LANGUAGE" in the customer Setup menu, press V+/ V- key," the TXT LANGUAGE" will appear the following circulation: W- TR-> EAST1-> EAST2-> W- TR
  • The W- TR diagram text includes the following language:
 English German Swedish/Fin/Dan/Hungarian Italian French Spanish/Portuguese Turkish
  • The EAST1 diagram text includes the following language:
Polish German Estonian  Slovenian Czech/Slovak Rumanian
  • The EAST2 diagram text includes the following language:
Polish German Swedish/Fin/Dan/Hungarian, Lettish Russian Slovenian Czech/Slovak Estonian.
  • Make use of 4 color keys of the remote control; browse 4 pages of the enactment quickly, namely index function.
  • The TV/ AV sets the saving key for the index.
  • While using this function," the TXT LIST" establishes for" ON" in the customer menu.
Example: if want to use the color key of the red quickly 230 pages of enter the diagram text:
The sequence press" TEXT"," red key","2","3","0" on the remote control," TV/ AV"
Switch on the hour appearance constitution
[0]  Connect the AC power, enter to need the machine appearance automatically
[1]  Connect the AC power, automatically switch on appearance
[2]  Connect the AC power, if shut down the appearance as the diagram text appearance, enter the diagram text appearance automatically.
UNIVERSAL REMOTE CONTROL SET-UP CODES FOR AKAI
GE UNIVERSAL REMOTE CONTROL: 0105 0002 0077 0254
RCA RCR 311W: 1221, 1001, 1046, 1078, 1203, 1204
RCA RCR 312W: 10812, 11675, 10060, 10702, 10030, 10672
Others: 1134 1052 1204 1201 1157 1203 1132 1075 1061 1003 1210 1231 1019 1054 1051 1203 1077 1014 1314 1007 1172 1031 1072 1274 1160 1285 1162 1035 1349 1433 1243 1012 1140 1190 1144 1091 1141 1288 1184 1109 1351 1311 1341 1342 1211
