BEKO DFS1500 DISHWASHER _ DISASSEMBLY INSTRUCTIONS
DRAIN HOSE
[1] Position of Drain Hose during the assembley of product.
[2] Position of Drain and Water Supply hoses before disassembling.
When the hose is to be
replaced, the unit, which is seen at the right back top corner of the machine
is required to be removed after being cut.
3
wire clamps and 2 plastic hose clamps are removed for dismantling the drain
hose.
TOP PLATE
- Manner of opening the latch of the upper plate.
- Disassembly of top plate after the screws are dismantled.
- The plate is pulled back for approximately 1 cm. by unscrewing the bolts that are located at both sides of the upper plate in upward direction. Afterwards, the plate is removed by pulling it upwards.
TOP PLATE MID SUPPORT

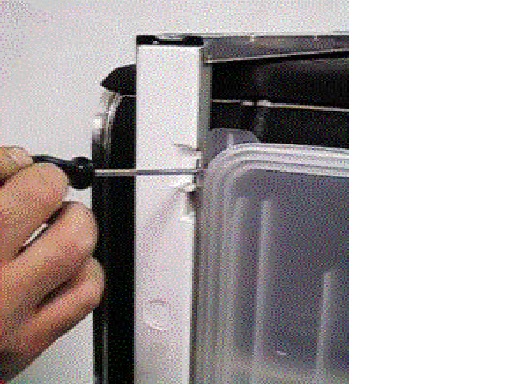

The part can be dissembled by loosening 2 snops screw driver.
LOCK GROUP

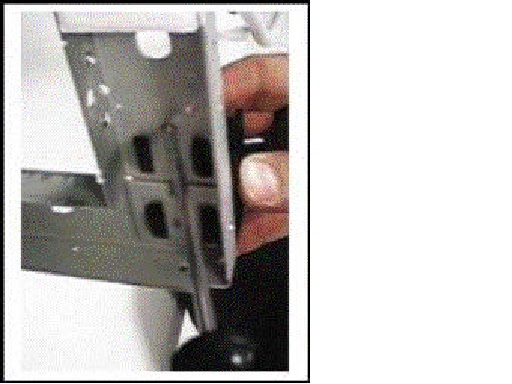

- Door lock is mounted to the control panel by shown two snap fits.
BOTTOM TRAY
While providing service to
the components located beneath the machine, the machine is moved to a place
other than the place of installation.
- For dismantling the tray, the machine is inclined backwards with an angle of approximately 40°.

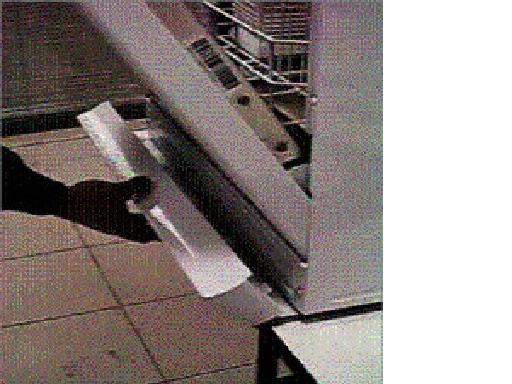

- The door is swiftly opened and the plastic cover located at the bottom of the machine is taken out, by being rotated in the downward direction without using any tool. Afterwards when this plastic cover is re-positioned the similar procedure is applied but this time by being rotated in the reverse direction.
- 4 screws holding the base and located on the front side are removed and the components beneath the machine are accessed. Thus, it is possible to work on all the components except for the Water Inlet Valve, Clip Holder and the Drain Hose.
OVERFLOW GAUGE
- The mechanism attaching the overflow gauge to the base is pulled to the front direction, by pressing the latches and then is taken out. NTC is taken out by being rotated 30°.
HEATER
- Pipe type heater is used in the machine. It is taken out by unscrewing the two spring clamps.
CIRCULATION PUMP
- Circulation pump is connected to the motor by snap fits shown.
- After the clamps and cable connections of the circulation pump are removed, the screws of the motor holding plate connected to the body frame are unscrewed. So as to detach the circulation pump from the motor holding plate, the connection is cut off by breaking the white coloured auricle shown in the photo, and a new auricle is installed during the assembly.
FEEDING PIPE OF THE UPPER SPRAY ARM AND FILTER SUPPORT
- Filter support is freed after the related screw is loosened. After the notch of the feeding pipe of the upper spray arm is released, both of the parts are taken out. After the notch located on the filter support is extended, it is removed from the upper feeding pipe.
SIDE WALLS
- A total of 7 screws, as 3 in the front, 2 at the back and 2 at the top, are loosened and the side walls are taken out.
REGENERATION CONTAINER
- The 2 metal notches are released through a screwdriver. The lid of the regeneration container is taken out by being rotated in the counter clockwise direction at 5-10°.
FLOW-METER
- The electronic counter on the flow meter located at the left lower corner of the regeneration container, is taken out as demonstrated in the photo and detached from the socket.
HINGE PLATES
- 3 screws on the both sides are loosened. 2 screws on the both sides of the connection sheet of the hinge arm are unscrewed and the plates are removed.
DETERGENT CONTAINER
- The inner door plate, held by 8 notches, is taken out by releasing the lobes.
CABLE CASE
- To replace any cable, the cable case is opened and the replacement is made.
CONCRETE SHEET
- Both of the sidewalls are dismantled. A total of 4 screws connecting the concrete sheet to the frames from both sides are unscrewed. 2 screws that connect the base to the concrete sheet are unscrewed. Water inlet hose is taken out. Base is dismantled. The connection made to prevent the occurrence of siphonage in the drain hose is removed by cutting the hose clamp. The concrete is taken out and the sheet is freed from its connections.
BEKO DFS1500 DISHWASHER _ DISASSEMBLY INSTRUCTIONS -
DRAIN HOSE, WATER INLET VALVE & CLIP BOX

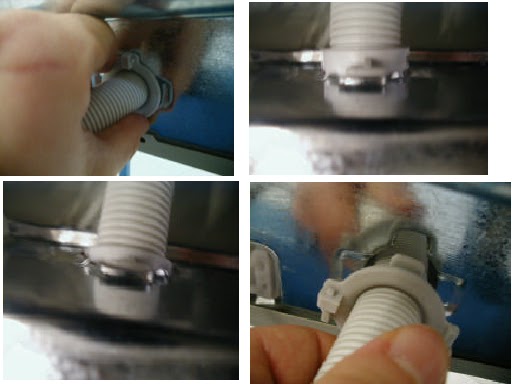

- To render services to these components, the operators should work on the backside of the machine. The concrete sheet should be removed. The hose holder is taken out by turning as it is seen in the picture.
- The drain hose holder is made up two symmetric parts, which fit together by the help of the snaps, and should be located approximately 30 cm from the hose end.
- For disassembling the water inlet valve, the screw of the water inlet valve located on the concrete sheet is unscrewed.
- Water inlet valve is taken out by being rotated in the clockwise direction. (according to the back of machine).
- For dismantling the interference filter and the main power cable first of all dismantle the sockets.
- Unscrew the screw mounted on the main power cable holder and release the cable.
- Then unscrew the two screws, assembling the interference filter and the concrete sheet.
- Push the filter as it is seen in the picture in order to release it.
FOOTS
- The notch in the middle is pressed by a screwdriver.
UPPER SPRAY ARM
- Upper spray is disassembled from shown snap fit. Upper spray and middle spray feeding hose is a unite part.
