BEKO L6E – PE CHASSIS LCD – PLASMA - HOW TO ENTER SERVICE MODE - OPTIONS

BEKO L6E – PE CHASSIS LCD – PLASMA - HOW TO ENTER SERVICE MODE - OPTIONS - Universal Remote Control Set-up Codes

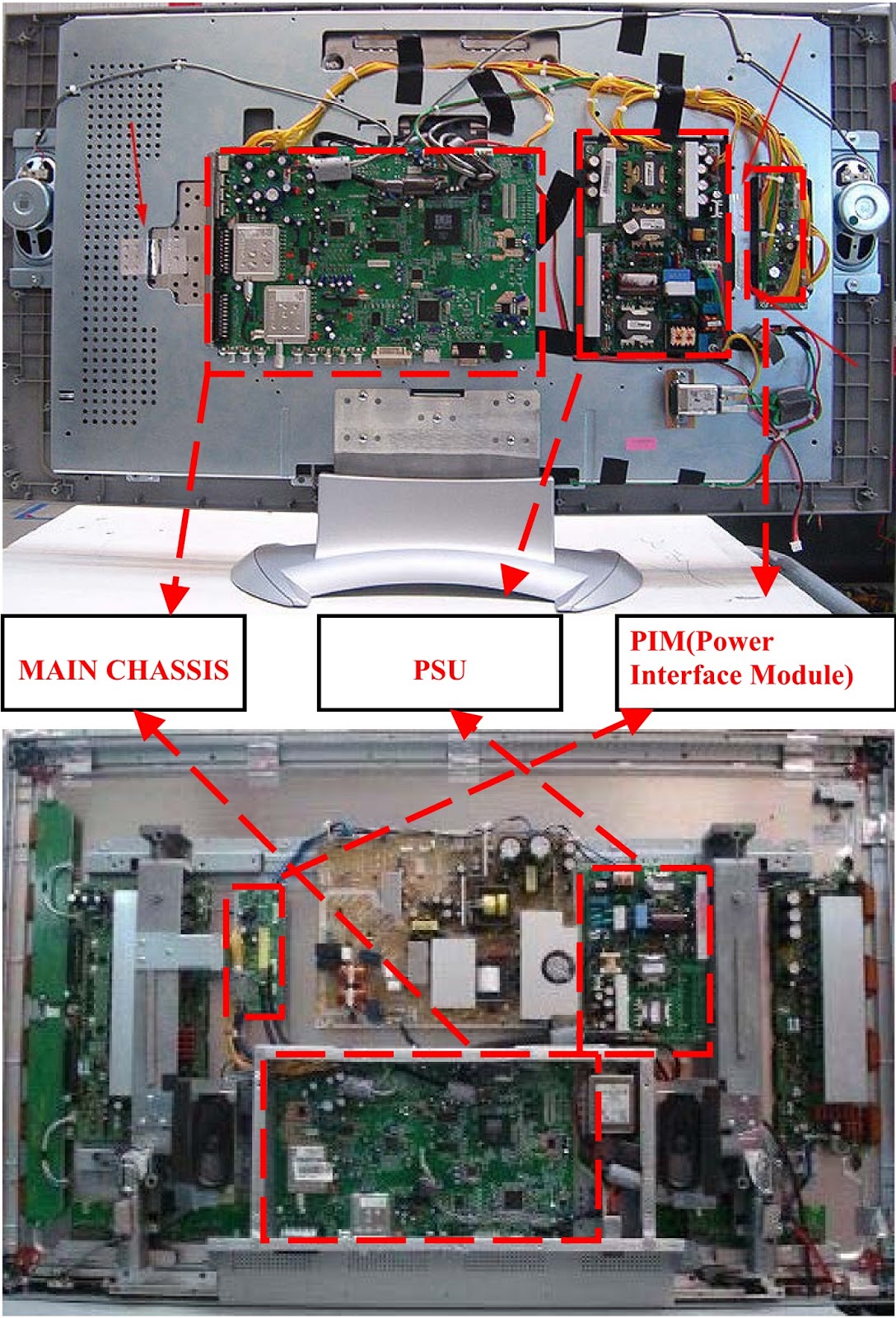

SET APPEARANCE OF LCD & PLASMA
SERVICE MODE
  • Service Menu is entered by pressing “9, 3, 0, 1” keys on the remote controller when the OSD Menu is Picture icon is highlighted in the Main Menu.
  • Service Menu has 3 sub-menus. These are:
  1. Adjustment
  2. Selection
  3. Option
Pressing OK button can do navigation through these menus.
Every adjustment made in this menu is saved automatically.
ADJUSTMENT
FACTORY MODE: There are two (2) values for this adjustment “OFF” and “ON”. When “OFF” is set, the unit goes to stand-by at start up else the unit operates directly.
I2S PRESCALE:  This topic adjusts the level of the volume received via HDMI.
SCART PRESCALE:  This topic adjusts the level of Analog Stereo Sound at MSP Scart Audio inputs.
NICAM PRESCALE:  This topic adjusts the level of NICAM Stereo Sound at MSP IF Audio inputs.
FM/AM PRESCALE:  This topic adjusts the level of FM/AM Stereo Sound at MSP IF Audio inputs.
AGC: Adjusts the AGC(Automatic Gain Control) value.
WHITE R / WHITE G / WHITE B/ PIP WHITE R / PIP WHITE G / PIP WHITE B:  These are used for color bias adjustment. Unlike other items in the service menu, changes will take effect immediately.

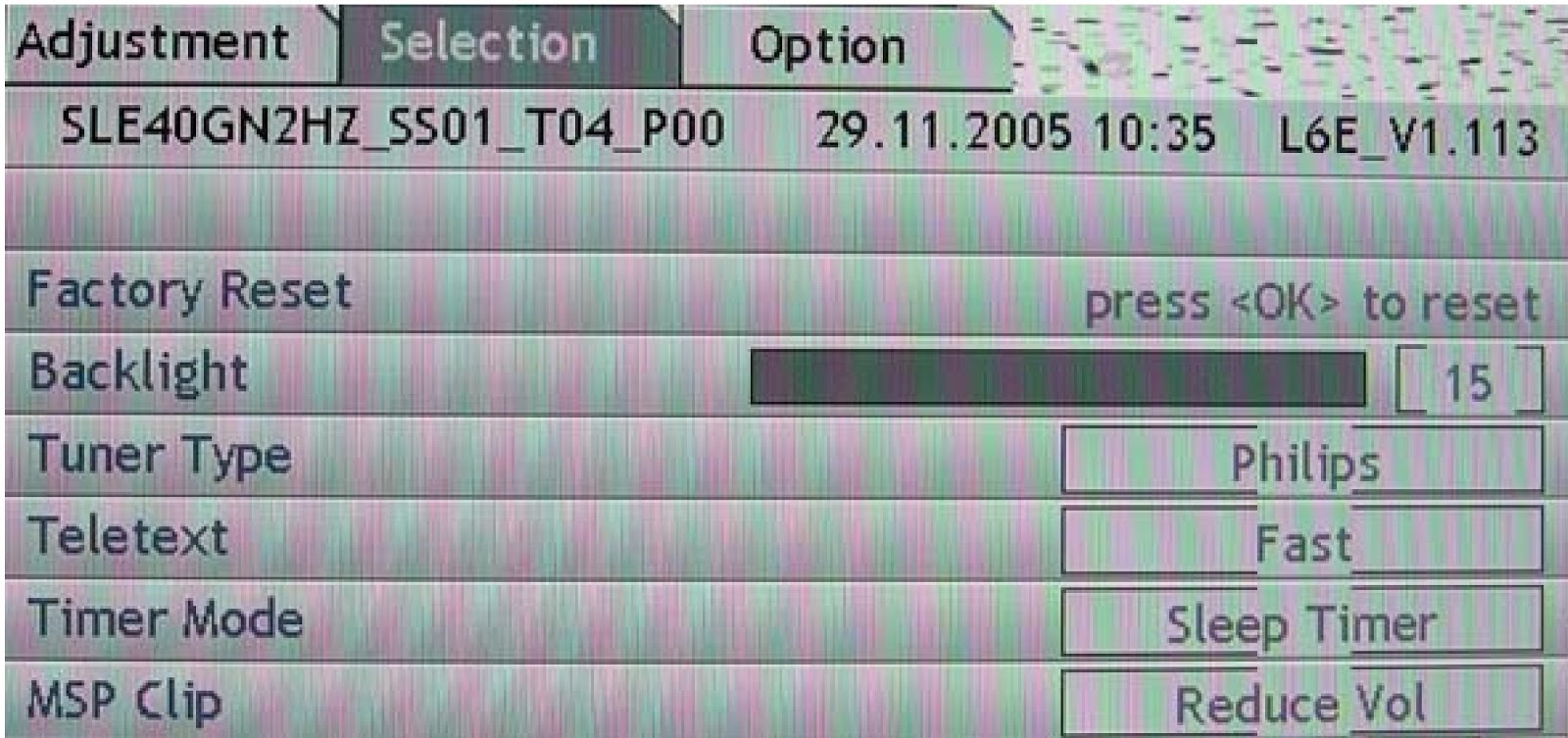

SELECTION
FACTORY RESET: Resets all the values to factory values.
BACKLIGHT: Selects the backlight illumination level of the panel.
TUNER TYPE:  Selects the type of the tuner, should be selected parallel to the tuner used in the unit.
TELETEXT: Selects the Teletext type(No Text, Fast, Fast&Top).
TIMER MODE: If OFF TIMER is selected, the user will be able to enter time of the day info for the TV to switch off. If SLEEP TIMER is selected, the user can specify some time period, after which the TV will go to stand by automatically.
MSP CLIP: There are four (4) values for this topic, with “Reduce Vol” MSP output limiting is done by Volume, with “Reduce Tone” MSP output limiting is done by bass and treble, with “Compromise MSP output limiting is done by volume, bass and treble, and with “Dynamic” MSP output limiting is done automatically internal by IC.
HOTEL MAX VOLUME:  By this topic the volume level at Hotel Mode can be limited, also see HOTEL MODE under OPTIONS.
COUNTRY: Selects the Country.
OPTIONS
HOTEL MODE: Enabling Hotel Mode has two effects. First, SETUP menu is no longer accessible by the user. Second, maximum adjustable volume value is limited to HOTEL VOLUME value.
STDBY RECALL: If this Option is “OFF”, the TV will stay in Stand By mode when switched on. If this Option is “ON”, the TV will recall its last stand by status.
RECALL LAST AV: If this Option is “ON”, then the TV will recall the last AV mode when switched on, If this Option is “OFF” then will start up with standby.
MSP CAR. MUTE: If this option is “ON”, sound processor’s carrier mute functionality will be enabled. The MSP will mute the sound automatically if the signal quality is bad. Setting this option “OFF” will disable this function.
WSS RF: If this option is “ON”, TV automatically goes to WSS mode when recognized via RF. Setting this option “OFF” will disable this function.
AUTO AV 16:9: If this option is “ON”, TV automatically goes to 16:9 modes when recognized via AVs. Setting this option “OFF” will disable this function.
FIRST ATS: If this option is set to ON, TV will display Country Selection menu in the next start. After some country is selected, the user will be prompted for the start of Auto Programming process.
HEADPHONE: If the LCD consist Headphone this parameter will be opted as “ON” else “OFF”
PARENTAL LOCK: When “ON” set, then “Parental LOCK” is added at OSD.
SERVICE MODE ADJUSTMENT DATA
CLICK ON TABLES TO ZOOM IN
SET-UP CODES [Universal Remote Controls]
049 085 086 090 108 117 130 195 225 250 255 263 296

0039 0101 0152 0163 0215 0241 0421 0433 0460 0465 0685 1203 1158 1147 1145 1061 1287 1012 1051 1093 1052 1180 1232 1435 1198 1068 1039 1101
