Thursday, 21 March 2019

COMCAST - ENT 6412 - ENTERPRISE 4 IN 1 REMOTE CONTROL - SETUP PROCEDURE - SETUP CODE LIST

AUTOMATIC PROGRAMMING

1. Turn on power for the device to be programmed.

2. Begin the SmartScan procedure by pressing and holding the associated device key (AUX, VCR, CBL, TV) until all device keys on the remote begin to flash (approximately 3 seconds).

Release the power key.

3. If the device you’re are attempting to program matches the selected device key (e.g. TV component with the TV device key) proceed to step 5.

4. If the device you’re are attempting to program does not match the selected key (e.g. a second VCR programmed to the AUX device ), locate the correct prefix code for the device you wish to program from the table listed below. Press and release the number key that matches the prefix code.

5. Press and release the POWER key. The device key will stop flashing and remain on.

6. Point the remote controlat the selected device.

7. Press and hold the UP ARROW key until the device turns off. While holding the UP ARROW key the remote will send a new code approximately once every second. The device button will blink each time a new code is sent. If you pass the code that turns off the device, press the DOWN ARROW key to return to the previous code.

8. When the device turns off, you have found a candidate code. Press the POWER Key to turn device back on. Test various functions using the remote control to determine if this code will work. If primary functions do not work, make sure the device is still on then resume SmartScan by pressing the UP ARROW key to find another device code.

9. Once you have found a satisfactory code, press OK to lock the code. The power of the device must be on. The device key will then flash three times. Go to section 10 to recall and record your device codes. When all the codes have been attempted the device button will flash rapidly.

MANUAL PROGRAMMING

1. Press and hold the device key to be programmed until all device keys begin to flash (approximately 3 seconds). Release the key. The selected device key will continue to flash.

2. Enter the four digit code for the desired device using the number keys. After pressing the first digit, the device key should light and remain on. If the programming is successful. After the last digit is pressed the device key should flash three times and turn off.

3. Test the code by trying various functions. If the primary function keys fail to respond satisfactorily try the next code listed for the manufacturer.

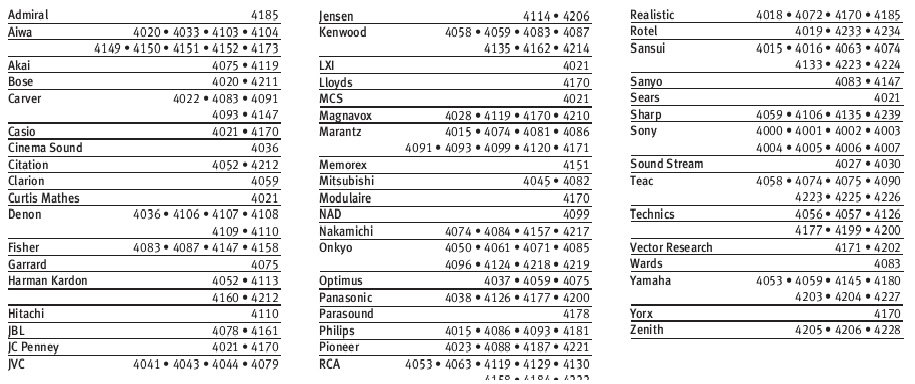

AUDIO RECEIVER CODES {Click on image to Enlarge}
