Monday, 4 March 2019

LENOVO YOGA 2 PRO – AC ADAPTER TESTING - FACTORY DEFAULT SETTING – DISASSEMBLING PROCEDURE - HOW TO REMOVE THE LCD MODULE – HOW TO REMOVE THE REAR CASE – LAPTOP REPAIR AND SERVICE

Lenovo Yoga 2 Pro – AC Adapter testing - Factory Default setting – Disassembling procedure - How to remove the LCD Module – How to remove the Rear case – Laptop repair and service

Category: Laptop Repair and Service

Contents of this article

How to test the AC adapter Voltage
How to remove the Back cover
How to remove the LCD

Lenovo Yoga 2 Pro

To verify a symptom, follow the steps below:
1. Turn off the computer.
2. Connect the AC adapter.
3. Make sure that power is supplied when you turn on the computer.
4. Turn off the computer.
5. Disconnect the AC adapter.
6. Make sure that the battery pack supplies power when you turn on the computer.
“Checking the AC adapter”
“Checking operational charging”
Checking the AC adapter
You are here because the computer fails only when the AC adapter is used.
If the power-on indicator does not turn on, check the power cord of the AC adapter for correct continuity and installation.
If the computer does not charge during operation, go to “Checking operational charging”.
To check the AC adapter, follow the steps below:
1. Unplug the AC adapter cable from the computer.
2. Measure the output voltage at the plug of the AC adapter cable. See thefollowing figure:

Note: Output voltage for the AC adapter pin No. 2 may differ from the one you are servicing.

3. If the voltage is not correct, replace the AC adapter.
4. If the voltage is acceptable, do the following:
Replace the system board.
Note: Noise from the AC adapter does not always indicate a defect.
Checking operational charging
To check whether the battery charges properly during operation, use a discharged battery pack or a battery pack that has less than 50% of the total power remaining when installed in the computer.

Perform operational charging. If the battery status indicator or icon is not lit, remove the battery pack and let it return to room temperature. Reinstall the battery pack. If the charge indicator or icon is still off, replace the battery pack. If the charge indicator is still not lit, replace the system board.

Restore of factory default
The Lenovo Yoga 2 Pro (13″) computer comes with pre-installed OneKey Recovery System.In order to save application files and the initial backed up files of the system, the hard disk in a Lenovo computer includes a hidden partition when it is shipped. If you need to restore the system to the point of your first boot up, just enter Lenovo OneKey Recovery System and run System Recovery.

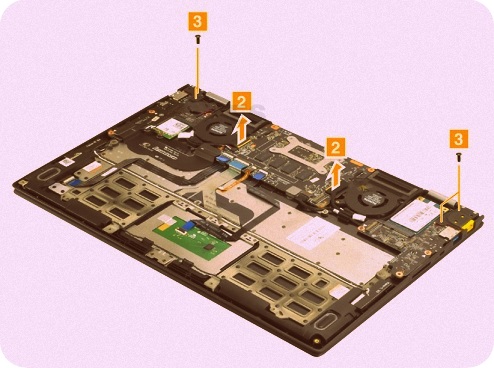

Disassembling procedure

How to remove Base cover

Remove the screws 1. Then remove the base cover 2.
