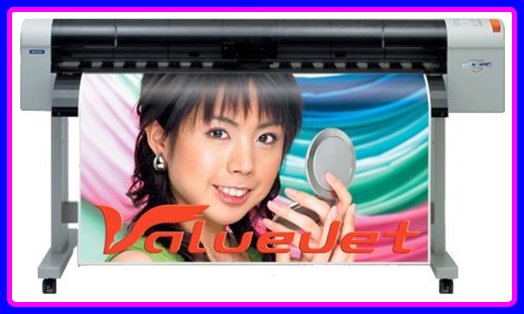

MUTOH VALUEJET 1204

ERROR CODES AND CAUSES

CPU SYSTEM SERIOUS ERRORS

E016 ­ Interrupt [00]

 Interruption exception error

E016 ­ TLB Modif [01] ­

Command border exception/TLB exception

E016 ­ TLB­L/I [02] ­

Data border exception/TLB exception

E016 ­ TLB­S [03] ­

Data border exception/TLB exception (store) error

E016 ­ AddErr­L/I [04]

­ Address exception error (load or command fetch)

 E016 ­ AddErr­S [05] ­

Address exception error (store)

E016 ­ BusErr­I [06] ­

Pass exception error (command fetch)

E016 ­ BusErr­L [07]

Bus exception error (load or store)

E016 ­ SystemCall [08] ­

System call exception error

E016 ­ BreakPoint [09]

Break point exception error

E016 ­ Reserverd [10]

­ Reserved command exception error

E016 ­ Copro [11]

­ Coprocessor disabled exception error

E016 ­ Overflow [12] ­

Arithmetic overflow exception error

E016 ­ Trap [13] ­

Trap exception error

E016 ­ Floating [15] ­

Floating point exception error

E016 ­ WatchDog [32] ­

Watchdog time­out exception error

E016 ­ Abort Err [33] ­

Abort error

MECHANICAL SERIOUS ERRORS

E065 ­

PF motor ­ Abnormal condition in PF motor (X­axis)

E066 ­

CR motor ­ Abnormal condition in CR motor (Y­axis)

E067 ­

PF encoder ­ Abnormal condition in media feed amount (X­axis)

E068 ­

CR encoder ­ Abnormal condition in head travel distance (Y­axis)

E069 ­

PF time­out ­ Time­out condition in media feed amount (X­axis)

E070 ­

CR time­out ­ Time­out condition in head travel distance (Y­axis)

E071 ­

PF overcurrent ­ Overload condition in PF motor (X­axis)

E072 ­

CR overcurrent ­ Overload condition in CR motor (Yaxis)

E074 ­

CR2 overcurrent ­ Overload condition in CR motor (Yaxis)

E075 ­

Head Cable ­ Abnormal condition in head cable or head thermistor.

E076 ­

Pre­heater system ­ Abnormal condition in pre­heater system

E077 ­

Platen Heat ­ Abnormal condition in platen heater system (thermistor, heater).

E078 ­

After Heat ­ Abnormal condition in after­heater system (thermistor, heater).

 E079 ­

Comm. ­ Abnormal condition in serial communication

E080 ­

Junction ­ Abnormal condition in serial communication

E081 ­

CR origin ­ CR_HP detection is not possible.

E082 ­

Wiper sensor ­ Abnormal condition in wiper sensor.

E084 ­

Head Dist. ­ Installed head is incorrect.

E085 ­

Head overheat ­ Abnormal condition in head driver.

E086 ­

Head OVP ­ Abnormal condition in head driver.

E087 ­

H Trans Th ­ Abnormal condition in head transistor.

E090 ­

Heater Volt. ­ The input voltage of AC inlet may be too high.

E097 ­

NVRAM ­ Abnormal condition in NVRAM
