Saturday, 16 March 2019

PIONEER PDP 4280X ADJUSTMENT WHEN THE SERVICE PANEL ASSY IS REPLACED - PLASMA DISPLAY



PIONEER PDP 4280X

ADJUSTMENT WHEN THE SERVICE PANEL ASSY IS REPLACED -  Plasma Display

ADJUSTMENTS AFTER PANEL REPLACEMENT
After the panel is replaced with one for service, voltage margin adjustment is required.
Basically, voltage margin adjustment is performed using the Panel Factory menu.
After the panel is replaced and the unit is turned on, clear the pulse meter first.
For details on how to clear the pulse meter check previous posts here:
  • As various corrections are made referring to the pulse-meter count to calculate how long the panel has been used, if adjustment of the panel for service is performed without clearing the pulse-meter count, proper adjustments will not be performed.
  • The drive sequence for 60-Hz video is used for adjustment. When adjustment is made using the Panel Factory menu, the current drive sequence is displayed on the screen, as shown in the figure below. Make sure that 60VS is always indicated during adjustment.
Example of the On-Screen display during Panel Factory mode
CLICK ON THE PICTURES TO ZOOM

In the "PANEL-1ADJ" layer, the Panel White Balance value is reset to default, Panel Gamma is set to Straight, and Noise is
set to OFF.
In this case, *-- - - - -/****" (**** represents the current drive sequence) is displayed on the third line of the On-Screen display during Panel Factory mode.
If adjustment is performed using RS-232C commands, the following commands must be transmitted for preparation:
[PAV S00]: To set panel drive mode to Factory
[VFQ S03]: To set Drive Sequence to Video 60 Hz
[WBI S01]: To temporarily reset the Panel WB adjustment value to default (WBI S00 cancels this setting.)
[PGR S00]: To set the gamma R value to that for Factory mode
[PGG S00]: To set the gamma G value to that for Factory mode
[PGB S00]: To set the gamma B value to that for Factory mode
[DIZ S03]:Dither ON,L dither ON, noise OFF
If the unit is shut down during the above adjustment flow, resend the above commands from the beginning.
Replacement with the panel for service is completed.  [Procedures for resetting corrections for change over time]
Procedures for stabilizing the panel before adjustment
If you perform the adjustment by RS-232C commands, the following commands must be added  before going to the main flowchart (1):
[PAV S00]: To set panel drive mode to Factory
[WBI S01]: To temporarily reset the Panel WB adjustment value to default (WBI S00 cancels this setting.)
[PGR S00]: To set the gamma R value to that for Factory mode
[PGG S00]: To set the gamma G value to that for Factory mode
[PGB S00]: To set the gamma B value to that for Factory mode
[DIZ S03]:Dither ON,L dither ON, noise OFF

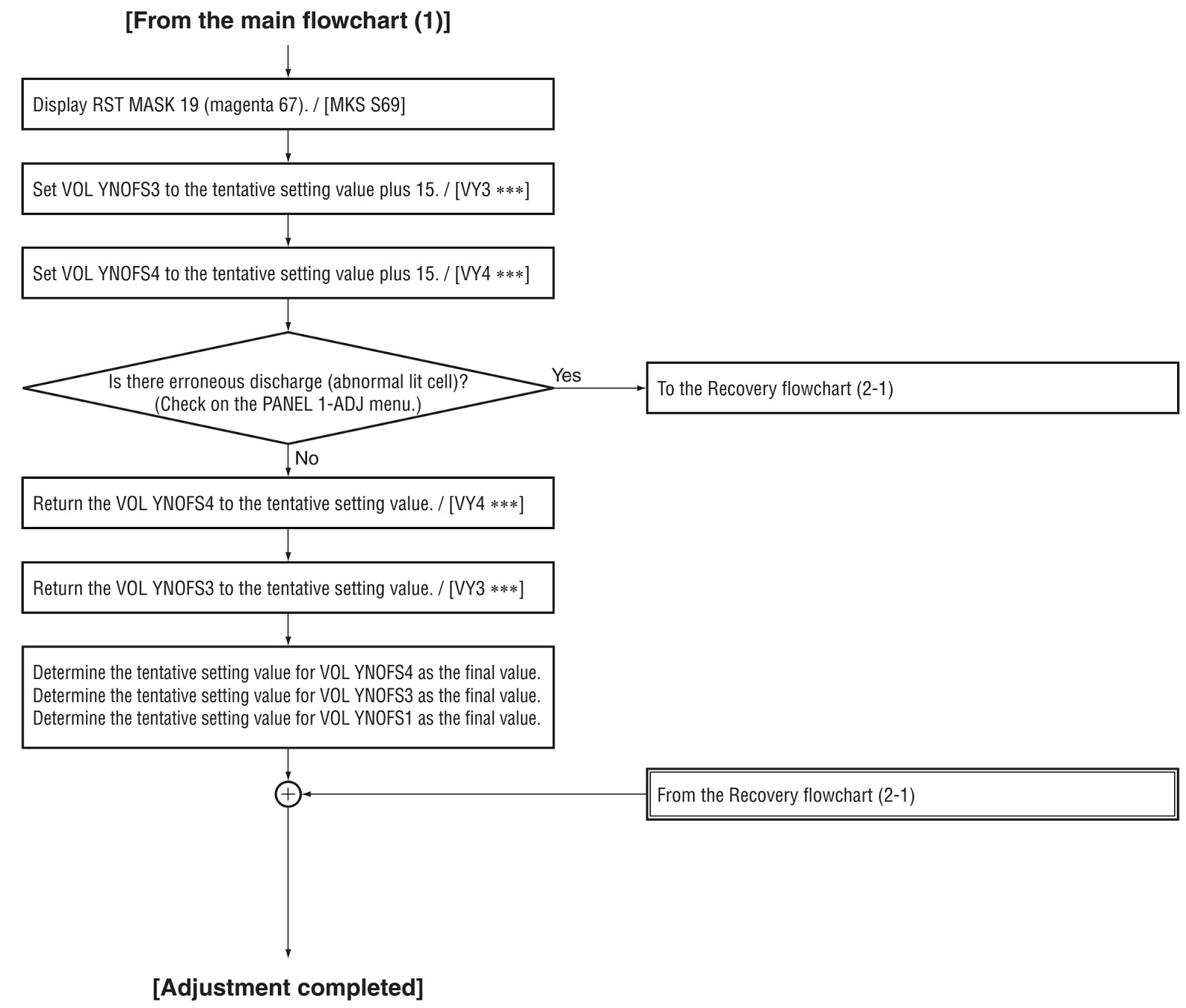

Main flowchart (2) - Checking VOL YNOFS3
Make sure that the values for VOL SUS(*1), VOL OFFSET, VOL RST P(*1), VOL XPOFS1,2(*1) and VOL YNOFS1, 3, 4 are the  final setting values.
The tentative setting value becomes the final value.
