Monday, 18 March 2019

EMERSON EWL20S5 - HOW TO ENTER SERVICE MODE - INITIAL SETTING - HOW TO INITIALIZE THE TV - HOW TO ADJUST FLICKER - UNIVERSAL REMOTE CONTROL SET-UP CODES

EMERSON EWL20S5 - HOW TO ENTER SERVICE MODE - INITIAL SETTING - HOW TO INITIALIZE THE TV - HOW TO ADJUST FLICKER - Universal Remote Control Set-up Codes



TO ENTER SERVICE MODE
Prepare normal remote control unit. (Part No. N0105UD or N0127UD)
  • Remove 3 Screws from the back lid.
  • Add J1 (Jumper Wire) to the remote control CBA.
Use the service remote control unit.
  • Turn the power on. (Use main power on the TV unit.)
  • Press [SLEEP] button on the service remote control unit. Version of microcomputer will be displayed on the LCD or display. (Ex: 0008GP-0.08)
INITIAL SETTING [FACTORY SETTING]
FLICKER ADJUSTMENT
  • Enter the Service mode.
  • Press [2] button on the remote control unit. The following screen appears.

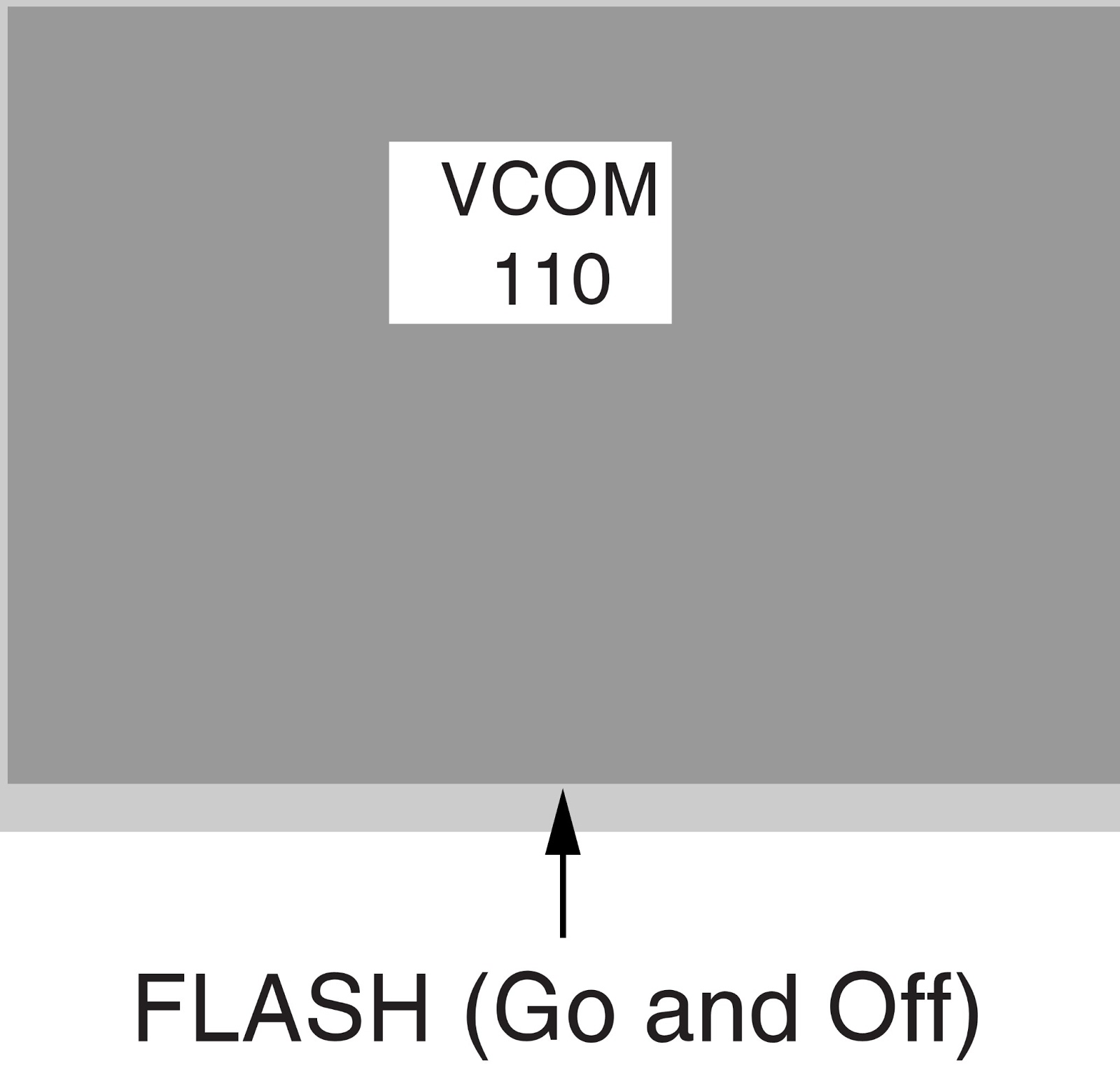

  • If Flicker Adjustment is not fit, the screen becomes the following.
  • Press [CH UP/ DN] buttons on the remote control unit so that flash stops.
Universal remote control set-up codes.
With GE universal remote: 0004 0009 0044 0135 0049 0051 0189 0053 0147 0039 0130 0227 0233 0250 0252 0254 0257 0265 0266 0310 0325 0456 0040 0041 0042 0021 0023 0024 0179 0045 0025 0027 0030 0032 0034 0035 0037
RCA RCR 311W: 1003, 1004, 1009, 1011, 1018, 1021, 1023, 1025, 1026,1028, 1030, 1031, 1033, 1035, 1038, 1039, 1041, 1045,1047, 1054, 1078, 1083, 1109, 1123, 1127, 1128, 1133, 1163, 1165, 1167, 1206, 1207, 1208, 1230
RCA RCR 312W: 10017, 10154, 10451, 10236, 10463, 10180, 10178, 10171, 11394, 11963
RCA RCU TMS: 005, 008, 009, 010, 017, 018, 052, 054, 056, 068, 069, 070, 077, 089, 096, 097, 098, 099, 100

6-IN-1 Super Remote: 017,022,025,027,036,037,038,039 040,043,044,045,046,047,048,049,050 051,052,053,054,055,056,057,058,059 060,062,136,137,176,184,189,190,192,210
