GRUNDIG - AMIRA 15 LCD - AMIRA 17 LW 45 - DAVIO 20 LCD 51 - LENARO 20 LCD 51 - LENARO 20 LCD 51 - VISION 20 LCD 51 - XEPHIA 15 LCD 38 - SERVICE MODE & ADJUSTMENTS

GRUNDIG - Amira 15 LCD - Amira 17 LW 45 - Davio 20 LCD 51 - Lenaro 20 LCD 51 - Lenaro 20 LCD 51 - Vision 20 LCD 51 - Xephia 15 LCD 38 - SERVICE MODE & ADJUSTMENTS


APPLICABLE TO
Amira 15 LCD 38-6605 BS  GBE4800
Amira 17 LW 45-6605 BS  GBE4700
Amira 20 LCD 51-6605 BS  GBE4600
Davio 20 LCD 51-4505 Top  GBE5600
Lenaro 20 LCD 51-7606 Top  GBD2600
Monaco 20 LCD 51-9622 DL  GBE4000  LCD 51-9622 DL  GBF0300
Vision 20 LCD 51-8610 Top  GBE3800  LCD 51-8610 Top  GBF0800
Xephia 15 LCD 38-5501 Top  GBE4900

 L5C CHASSIS
FUNCTIONS OF THE BUTTONS
i => Call up the Dialog Center
OK => Call up the Service Menus
P+/P–  => Call up the dialogue line (point of menu)
Right/Left => Changing the settings
TXT => Exit the Service Mode.
SERVICE MODE
  • Press button "i " (INFO Menu).
  • Enter the code number "8500". The Service Menu "OPTIONS" and the software version number are shown on the screen.
  • Step by step call up the Service Menu "ADJUSTMENTS" and "SELECTIONS" with the button "OK" .
  • Exit the Service Mode. Press button "TXT"

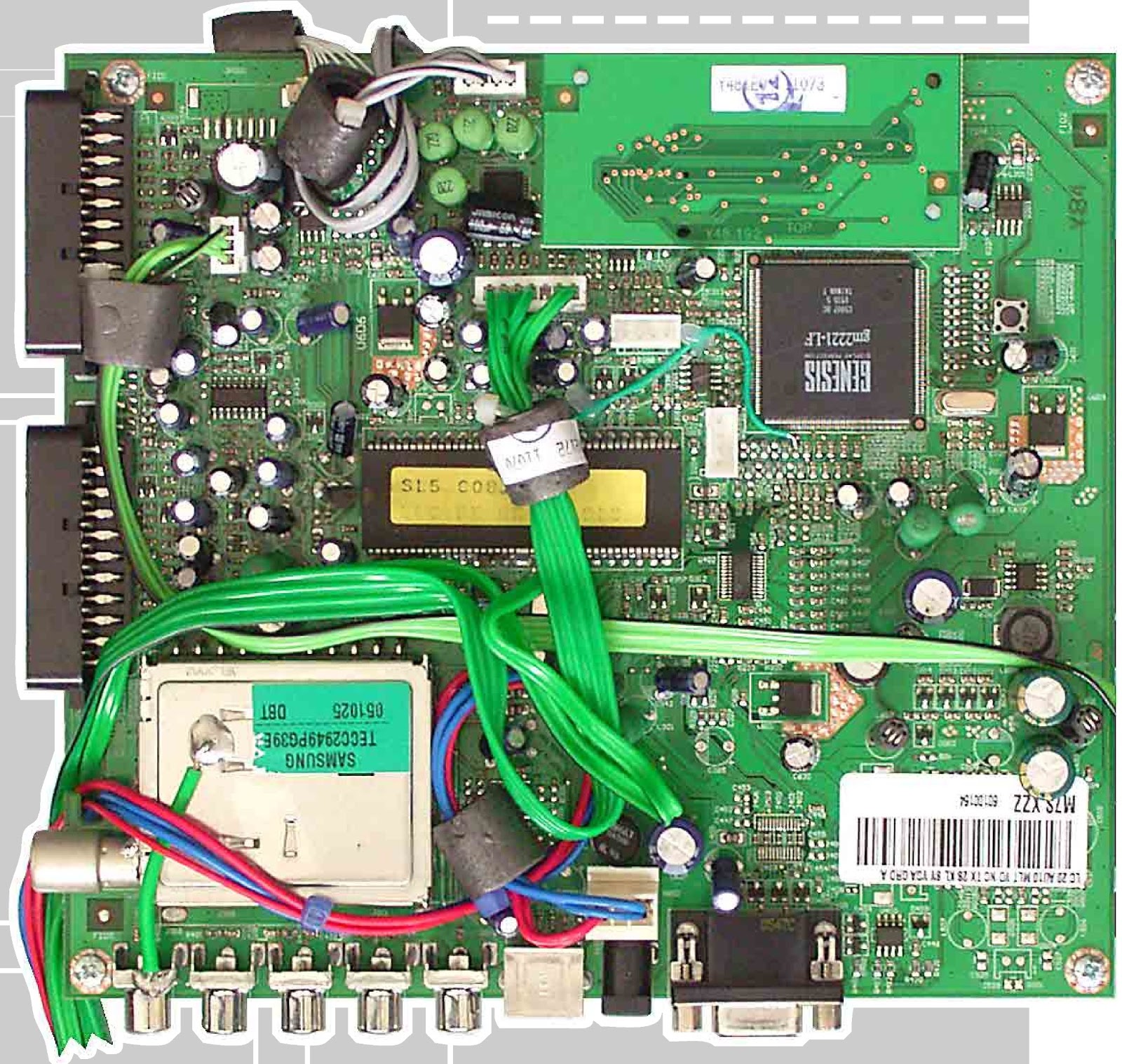

MAIN BOARD CHANGE
After changing the Main Board or U201 all basic settings in the service mode must be done according to the table.

Software Version Number
The software version number is shown on the upper part of the service menu, e.g.:
L5CGNA_V1.38 - 14.04.2006
SLC 20G-SH01-T 38 -S 6
VCTI V 8 1
PVCS V 38

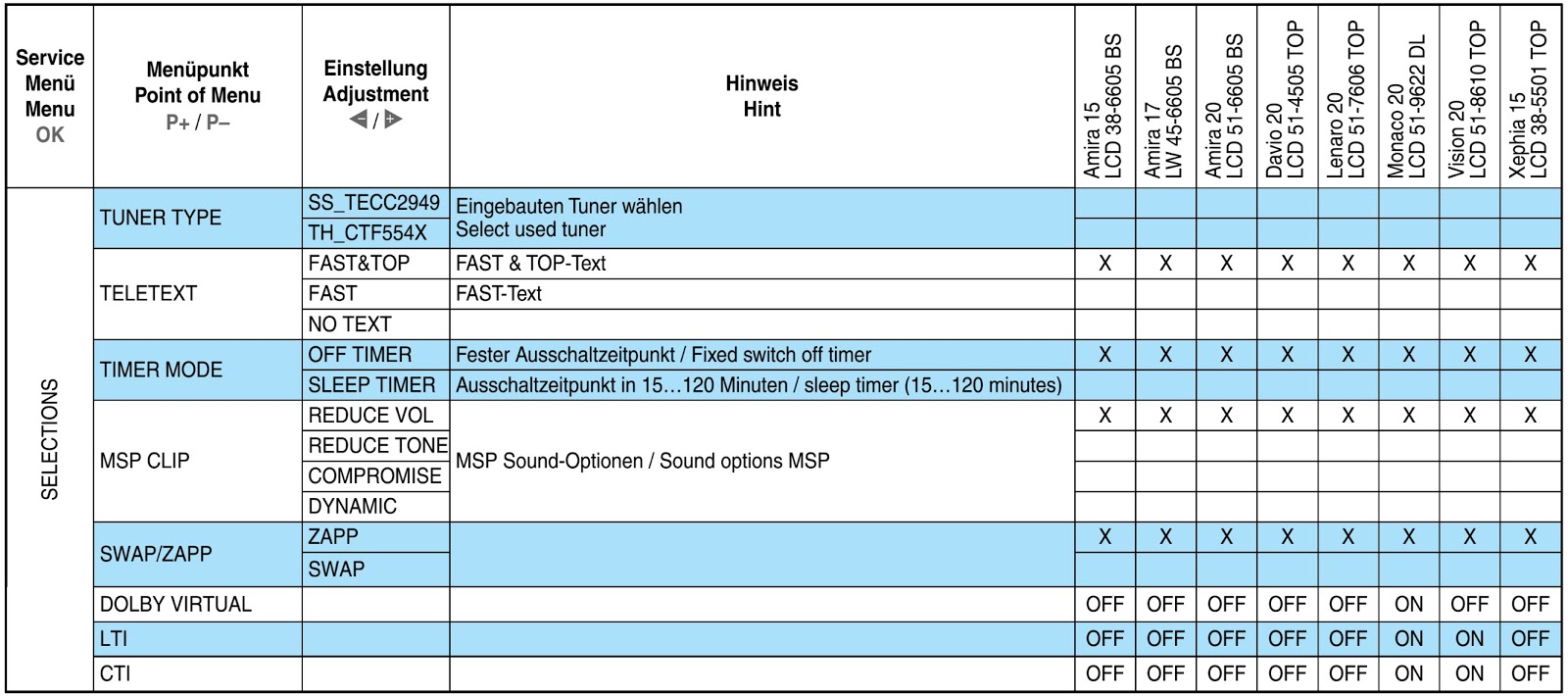

Basic Settings:  The table shows all basic specific settings in the service mode.
CLICK ON PICS TO MAGNIFY
Programme Search
=>Press button "i " (INFO Menu).
=> Select "SETUP" with the buttons P+ /P–and confirm with button "MENU".
=> Select "STATION SEARCH" with the buttons P+ /P– and confirm with button "MENU".
=> Select the required Country with the buttons P+/P–, Left/Right and confirm with button "OK".
The auto programmer system stops at every station of acceptable reception quality (AFC and coincidence) and stores the station data and the respective standard automatically. The system then continues searching.
Pressing the blue button stops the program search.

Posted By: FRANK at 04:49
TAG: , ,
