HITACHI CPDW10N [A2DWXN] - PROJECTOR HOW TO ENTER SERVICE MENU - RESET NETWORK WEB PASSWORD -

HOW TO ENTER SERVICE MENU - Reset Network Web Password - HITACHI CPDW10N [A2DWXN] - PROJECTOR


SERVICE MENU
To display OSD for hidden Service Menu

By the control panel.
  • Display the Advanced menu by the “MENU” button.(If EASY MENU appears, choose “Go to Advanced menu” to display ADVANCED MENU.)
  • Select the “OPTION” on the menu.
  • Continue press the button [◄ ] first, then press the button [◄ ] together with “INPUT”, and hold for 3 seconds.
By the remote control transmitter.

  • Display the menu by the “MENU” button. (If EASY MENU appears, choose “Go to Advanced menu” to display ADVANCED MENU.)
  • Select the “OPTION” on the menu.
  • Press the “MAGNIFY OFF” button.   Next hold the “MAGNIFY OFF” button for 3 seconds.


START-UP TYPE

Select the startup screen type.
  1. Shows Hitachi Logo
  2. No Hitachi Logo
PANEL TIME

Use time of LCD panel. Reset the PANEL TIME whenever you changed the LCD/LENS prism assembly panel.
LONG KEY
You can select the remote control button operation mode. NORMALß>LONG.  The LONG allows to control the projector with the remote control unit when you hold a button of it for about 3seconds, and makes MY BUTTON 1/2 function as LONG KEY DISABLE/LONG KEY ENABLE compulsorily. If you use these buttons to control the projector as you assigned with the MY BUTTON menu, set to the NORMAL
NETWORK RESET
If this is executed, all of the network settings are initialized.

SOFT RESET
If this is executed, all of the user data is initialized. Never use it when not required.
Reset of the Network Web password / User ID, Network Control password
ATTENTION: Performing this operation initializes the network settings. If the projector has the customized settings in the network, make a note of the network settings to restore them before this operation.
  • Display the SETUP in the NETWORK menu.
  • Select “TURN OFF” in the item of DHCP.
  • Enter “255.255.255.255” in the item of IP ADDRESS.
  • Enter “255.255.255.255” in the item of SUBNET MASK.
  • Enter “255.255.255.255” in the item of DEFAULT GATEWAY.
Click on pictures to ZOOM

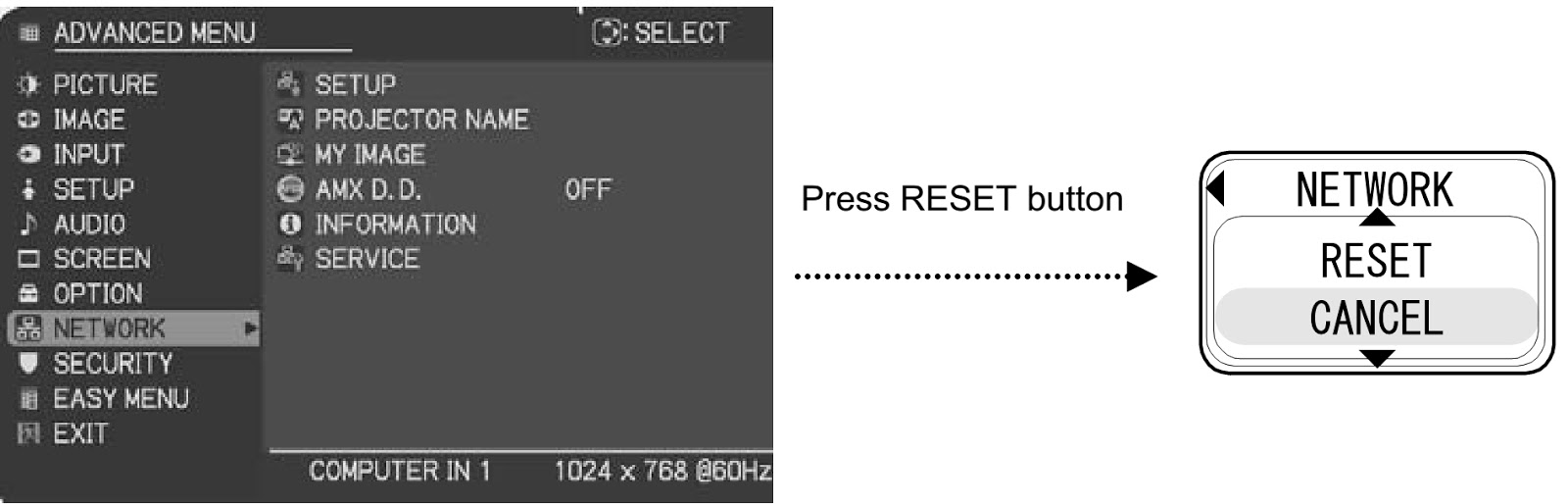

  • While NETWORK menu is displayed, press the RESET button of the remote control.


  • Press ▲button to execute reset.  The operation described above resets not only Web password but also NETWORK settings.
NOTE:

When you execute this reset operation with any other settings than above (described in the step 2 to 5), the WEB password, SNTP server address, DATE AND TIME and other schedule settings are not initialized, but the network settings (DHCP, IP ADDRESS, SUBNET MASK and DEFAULT GATEWAY) are initialized.
  • If the network settings had been customized, restore them by manual operation.
