HOW TO DISASSEMBLE SAMSUNG UN32D5500RF SAMSUNG UN40D5500RF LED TV

HOW TO DISASSEMBLE Samsung UN32D5500RF Samsung UN40D5500RF LED TV

Disassemble procedure to Samsung LED LCD TVs - UN40D550RF & UN32D5500RF
> Place TV faces down on cushioned table.
> Remove 4 screws from the stand.
> Remove stand.

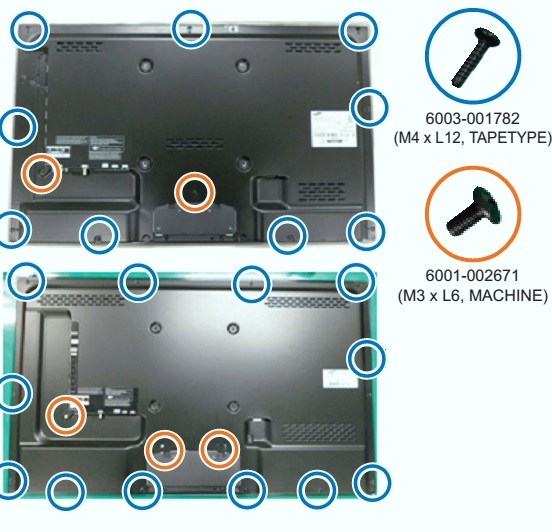

> Remove the screws of Rear-cover. [32":13 EA - 40":14 EA]
> Lift up the Rear-cover.
> Remove the Left and Right Speaker.
> Remove the 6 screws of Main Board and 5 screws of IP Board.
> Remove the 2 screws of Stand Link Cover.
> Remove the 4 screws of Stand Link.
> Lift up the Stand Link.
> Detach the Pront Hook.
> Lift up the Panel.
Disassembly:  Function & IR ASSY
Check the 2 Function Clips.
Remove the 2 Function Clips.
Heat the Function Assy by Heat Gun and Lift up the Function Assy.
The sensitivity of function key is available in Factory mode.
