Wednesday, 27 March 2019

LG PJ350 PLASMA _ Y-SUSTAIN FUSE INFORMATION _ Y-SUSTAIN 18V GENERATION CHECK _ Y-SUSTAIN GLOATING GROUND & 5V CHECKS

LG PJ350 PLASMA _ Y-SUSTAIN FUSE INFORMATION _ Y-SUSTAIN 18V GENERATION CHECK _ Y-SUSTAIN GLOATING GROUND & 5V CHECKS




Y-SUSTAIN FLOATING GROUND [FG15V] AND [FG5V] CHECK

TIP: Some Circuit components are on the back of the board. To Test these voltages, remove the board completely, supply Ground and any 5V supply to M5V fuse FS201. Ground OE Jumper J393.
Floating Ground checks must be made from Floating Ground. Use far left hand top 4 screws of the Y-SUS.


Source FG5V (Floating Ground 5V). D509 cathode.
Source FG15V (Floating Ground 15V). D508 cathode.
Location:  Back Side of Board.

Y-SUSTAIN 18V GENERATION CHECK

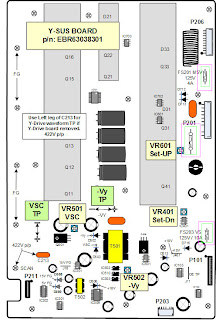

Voltage Measurements for the Y-SUS Board
18V Test Point Used in the Y-SUS for Waveform Creation and Leaves the Y-SUS board on P101 pins 1~3 to the Control Board. Checked at Cathode Side D506.
Run: 18.24V Standby: 0V Diode Check: 1.14V


Y-SUSTAIN FUSE INFORMATION:  There are 3 fuses on this board.


FS201 (M5V) 4V/125V
FS201 Protects M5V Used for 18V, (D506), FG5V and FG15V Creation (D508 and D509). Also, M5V leaves the Y-SUS on P101 for the Control board and for the Z-SUS.
Diode Check 1.19V With Board Disconnected. 0.65V with board connected.


FS202 (VS) 4V/250V; protects [VS].  Diode Check Open With Board Disconnected or Connected.


FS203 (VA) 10A/125V.  FS203 Protects VA which leaves the Y-SUS on P203. Diode Check Open With Board Disconnected or Connected.
