PIONEER PDP-42A3HD - PDP-4214HD - FAULTS & SYMPTOMS

TYPICAL SYMPTOM ARE ONLY SHOWN. ANOTHER SYMPTOM MIGHT APPEAR.
Symptom: Vertical line Block

Cause: Countermeasure:

Open or contact failure of Data flexible Cable àClean, Reconnect or exchange connector.
Failure in Data IC à Exchange PDP
Failure in Data Relay Board à Exchange the Data Relay Board.
Failure in multiple Data IC à Exchange PDP.

Symptom: Horizontal lines

Cause: Countermeasure:

Failure in Scan IC on Scan Relay Board - Exchange Scan Relay Board.Open or contact failure of Scan Flexible Cable (CN01-CN04) at output side of Scan Relay Board (U,D). à Clean, Reconnect or exchange connector.
Contact failure of connector between Scan Board and Scan Relay Board. à Clean, Reconnect or exchange connector.
Short between terminals of Scan IC due to screw dust à Clean around the terminals.

Symptom: No Picture (Priming flash).

Cause: Countermeasure:

1F302 open. à Exchange High Voltage Board.

If the connector CN7709 disconnected from Data Relay Board (RU ) is short-circuited between Pin 1 (or 2) and GND (Pin 3 or 4) à Data IC is broken à Exchange PDP.
If the connector CN7709 disconnected from Data Relay Board (RU) is short-circuited between Pin 5 (or 6) and GND (Pin 3 or 4) à Data Relay Board (LU) or (RU) is failed ]
If the connector CN7608 disconnected from Data Relay Board (LU) is short-circuited between Pin 1 and GND (Pin 2 or 6) à Data Relay Board (LU) is failed à Exchange Data Relay Board (LU).
If the connector CN7708 disconnected from Data Relay Board (RU) is short-circuited between Pin 1 and GND (Pin 2 or 6) à Data Relay Board (RU) is failed à Exchange Data Relay Board (RU).

If the connector CN7909 disconnected from Data Relay Board (RD) is short-circuited between Pin 1 (or 2) and GND (Pin 3 or 4) à Data IC is broken à Exchange PDP.
If the connector CN7909 disconnected from Data Relay Board (RD) is short-circuited between Pin 5 (or 6) and GND (Pin 3 or 4) à Data Relay Board (LD) or (RD) is failed]
If the connector CN7808 disconnected from Data Relay Board (LD) is short-circuited between Pin 8 and GND (Pin 3 or 7) à Data Relay Board (LD) is failed à Exchange Data Relay Board (LD).
If the connector CN7908 disconnected from Data Relay Board (RD) is short-circuited between Pin 8 and GND (Pin 3 or 7) à Data Relay Board (RD) is failed à Exchange Data Relay Board (RD).

Symptom: No Picture. (Priming doesn’t flash if W-X terminals are short-circuited.)

Cause/Countermeasure: No Diode characteristic à Exchange High Voltage Board.

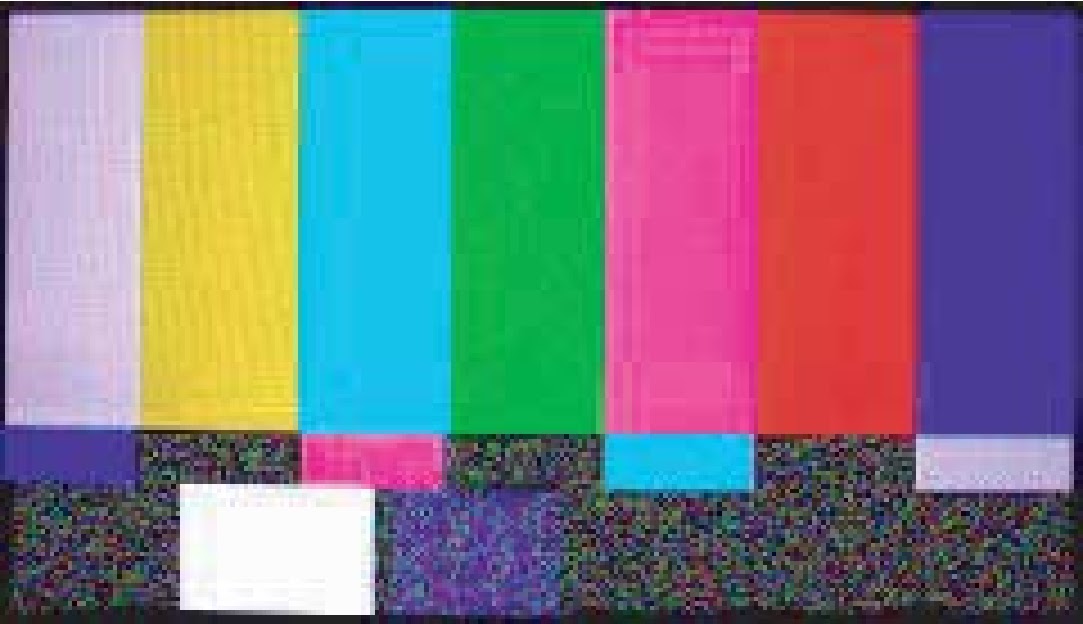

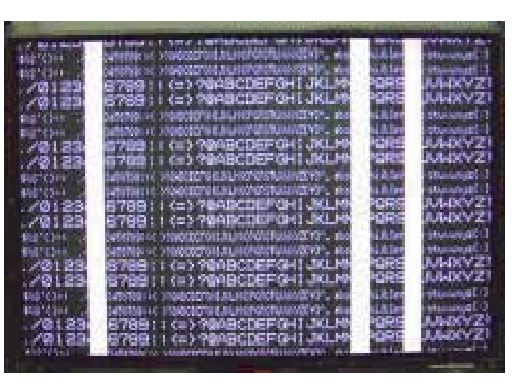

Symptom: Abnormalities in a picture.

ONE OR MORE VERTICAL BANDS, MULTIPLE VERTICAL BANDS

OUT OF SYNCHRONIZATION OR DUPLICATION

RECTANGULAR COLOR SHEAR, COLOR DISCREPANCY, SHEAR IN DISPLAY

TRANSPARENT VERTICAL BAND

MOSAIC

A NUMBER OF LATERAL LINES, REGULAR NOISE

Cause: Countermeasure :

Contact failure of connector adjacent to Digital Board or short circuit due to conductive obstacle. à Clean or Reconnect.
Failure in circuit on Digital Board. à Failure in Digital Board.

PIONEER PDP-42A3HD - PDP-4214HD - FAULTS & SYMPTOMS

POWER OFF
Symptom: No Picture (Priming doesn't flash) > Power off.

Cause | Countermeasure:

F301 open à Exchange High Voltage Board.
FU801 open à Exchange Digital Board.

Cause | Countermeasure :

If short-circuited, disconnect connector between High Voltage Board and Scan Relay Board and,
Short between NEGA-POSI on High Voltage Board à Exchange High Voltage Board.
Short between NEGA-POSI on Scan Relay Board (U) à Exchange Scan Relay Board (U).
Short between NEGA-POSI on Scan Relay Board (D) à Exchange Scan Relay Board (D).
