SHARP 21K-FD5RU _ PIXEL GENERATOR _ SPECIAL FUNCTION

SHARP 21K-FD5RU _ PIXEL GENERATOR _ SPECIAL FUNCTION

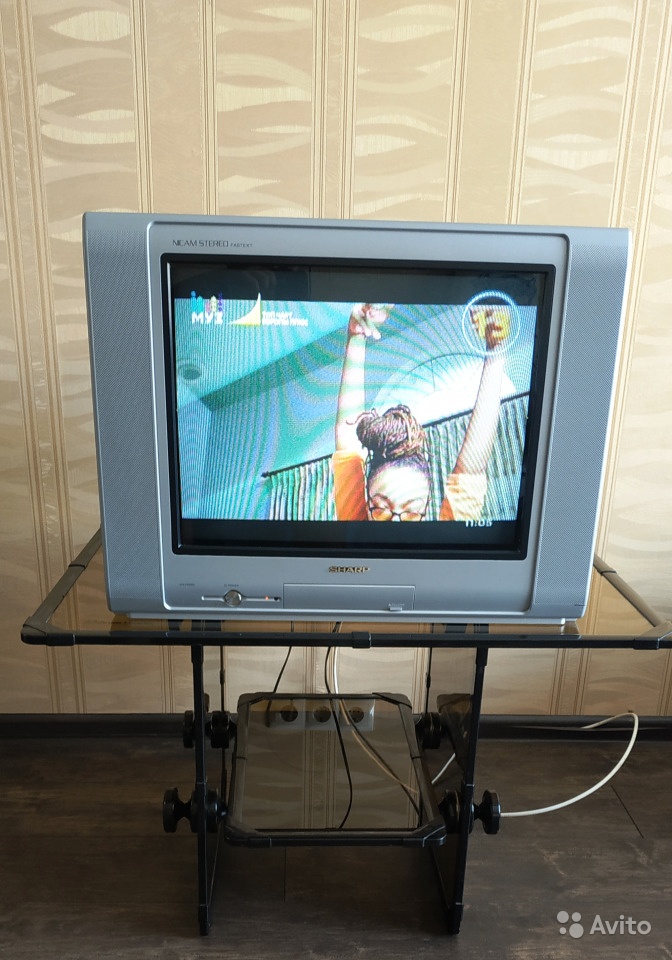

SHARP 21K-FD series TV that adopt high features is a step up model that first implement Pixel Generator (PXG-2) technology. SHARP has made a step ahead by producing high resolution picture in 21K-FD series and this make 21K-FD series model stands out among SHARP and other
competitors 21" flat TV. With this attractive PXG-2 feature, it is believe that it will helps to increase SHARP 21" flat TV market share .
PXG-2 DEMO mode is integrated into 21K-FD series to let customer to understand PXG-2 more easily and the differences within PXG OFF and ON will give customer more clear image about PXG-2. PXG-2 DEMO mode will also ease the sales person in explaining PXG-2 as the selling point to the customer.


PROCEDURE
To enter PXG DEMO mode, press CH UP / CH DN (on TV set) at the same time for more than 3 seconds during TV broadcast or AV input program.

Once enter to PXG DEMO mode, the AUTO DEMO mode will run automatically in 4 type of display screen (each at 5 seconds interval time).
At any Demo Mode; Press:
[2] --> Full Screen
[3] --> Half Screen Demo
[1] --> Auto Demo

From any Mode; Press:
[Menu/Preset] on TV set, or [Menu] on remote control to change the respectively "Pause" mode.  To release it, press [Menu/Preset] of [Menu] again.

During Pause Mode, press 'Vol Dn / Ch Dn' to change to other display screen.
During any mode or Pause Mode, press Ch + / Ch - on the TV set at the same time for more than 3 seconds to Cancel the PXG DEMO mode.

                                                                AUTO DEMO




                                                          FULL SCREEN DEMO



PXG-2 OUTPUT EFFECT

With PXG-2 technology, it helps to improve picture resolution thus increase picture sharpness and achieve a truly lifelike TV image.
