Sony HCD GPX5G – 4-ch D-Amp circuit diagram, how to take disc out in emergency
Precaution when installing a new op unit/ precaution before unsoldering the static electricity prevention solder bridge
The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts.
The flexible board is easily damaged and should be handled with care.
When installing a new OP unit, be sure to connect the flexible printed circuit board first of all before removing the static electricity prevention solder bridge by unsoldering.
Remove the static electricity prevention solder bridge by unsoldering after the flexible printed circuit board has already been connected.
(Do not remove nor unsolder the solder bridge as long as the OP unit is kept standalone.)
The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pickup block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens.
Releasing
the disc tray lock
The
disc tray lock function for the antitheft of an demonstration disc in the store
is equipped.
1. Press 1 STANDBY] button to turn the power on.
2. Press the [CD/DISC SKIP] button to select CD function.
3. While pressing the [Stop] button, press the [ENTER] button for more 5 seconds).
4. The message “UNLOCKED” is displayed and the disc tray is unlocked.
Note: When “LOCKED” is displayed, the slot lock is not released by turning power on/off with the [ STANDBY] button.
1. Press 1 STANDBY] button to turn the power on.
2. Press the [CD/DISC SKIP] button to select CD function.
3. While pressing the [Stop] button, press the [ENTER] button for more 5 seconds).
4. The message “UNLOCKED” is displayed and the disc tray is unlocked.
Note: When “LOCKED” is displayed, the slot lock is not released by turning power on/off with the [ STANDBY] button.
How
to open the tray when power switch turn off or there is no power [Emergency]
SONY HCD GPX5G – HCD GPX7G HCD GPX8G - HOW TO RELEASE THE DISC TRAY LOCKS –
HOW TO TAKE DISC OUT AT EMERGENCY & Mechanism Disassemble procedure
CD Mechanism Type => CDM74I-DVBU201//M
Optical Pick-up Name => CMS-ST6RFS3
HCD-GPX5G is the amplifier, USB, CD player and tuner section in
MHC-GPX5.
HCD-GPX7G is the amplifier, USB, CD player and tuner section in MHC-GPX7.
HCD-GPX8G is the amplifier, USB, CD player and tuner section in MHC-GPX8
HCD-GPX7G is the amplifier, USB, CD player and tuner section in MHC-GPX7.
HCD-GPX8G is the amplifier, USB, CD player and tuner section in MHC-GPX8
HOW TO OPEN THE TRAY WHILE POWER SWITCH
TURN OFF
PRECAUTION WHEN INSTALLING A NEW OP
UNIT/PRECAUTION BEFORE UNSOLDERING THE STATIC ELECTRICITY PREVENTION SOLDER
BRIDGE
When installing a new OP unit, be sure to connect the flexible
printed circuit board first of all before removing the static electricity
prevention solder bridge by unsoldering.
Remove the static electricity prevention solder bridge by unsoldering
after the flexible printed circuit board has already been connected. (Do not remove nor unsolder the solder bridge
as long as the OP unit is kept standalone.)
DISC LOADING MECHANISM
The laser diode in the optical pick-up block may suffer
electrostatic break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic
break-down and also use the procedure in the printed matter which is included
in the repair parts. The flexible board
is easily damaged and should be handled with care.
The laser beam on this model is concentrated so as to be
focused on the disc reflective surface
by the objective lens in the optical pickup block. Therefore, when checking the
laser diode emission, observe from more than 30 cm away from the objective
lens.
TO RELEASE THE DISC TRAY LOCK
> Press [Power/ STANDBY] button to turn the power on.
> Press the [CD/DISC SKIP] button to select CD function.
> While pressing the [Stop] button, press the [ENTER] button for more 5 seconds).
> The message “UNLOCKED” is displayed and the disc tray is unlocked.
Note: When “LOCKED” is displayed, the slot lock is not released by turning power on/off with the [Power/ STANDBY] button.
> Press the [CD/DISC SKIP] button to select CD function.
> While pressing the [Stop] button, press the [ENTER] button for more 5 seconds).
> The message “UNLOCKED” is displayed and the disc tray is unlocked.
Note: When “LOCKED” is displayed, the slot lock is not released by turning power on/off with the [Power/ STANDBY] button.

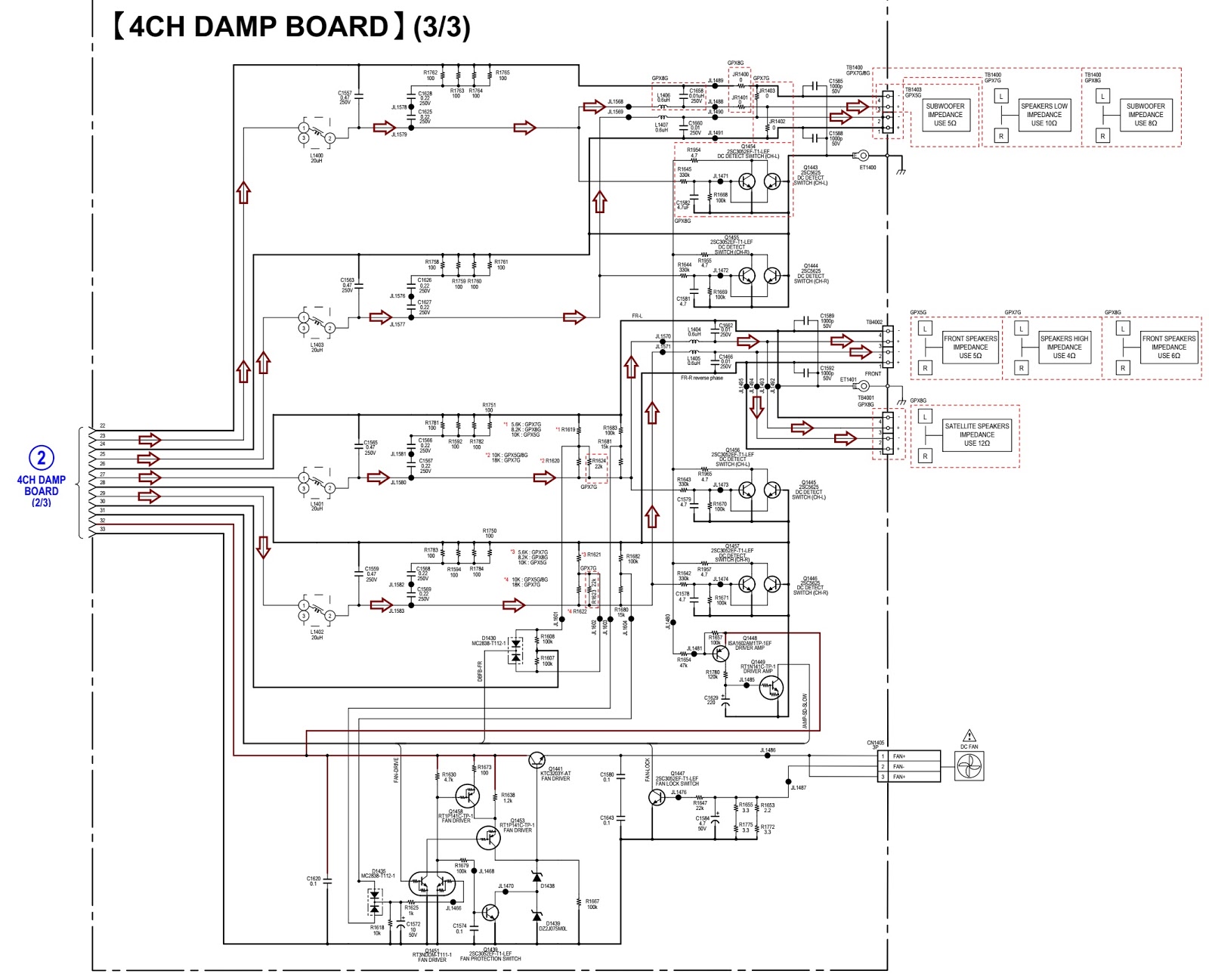

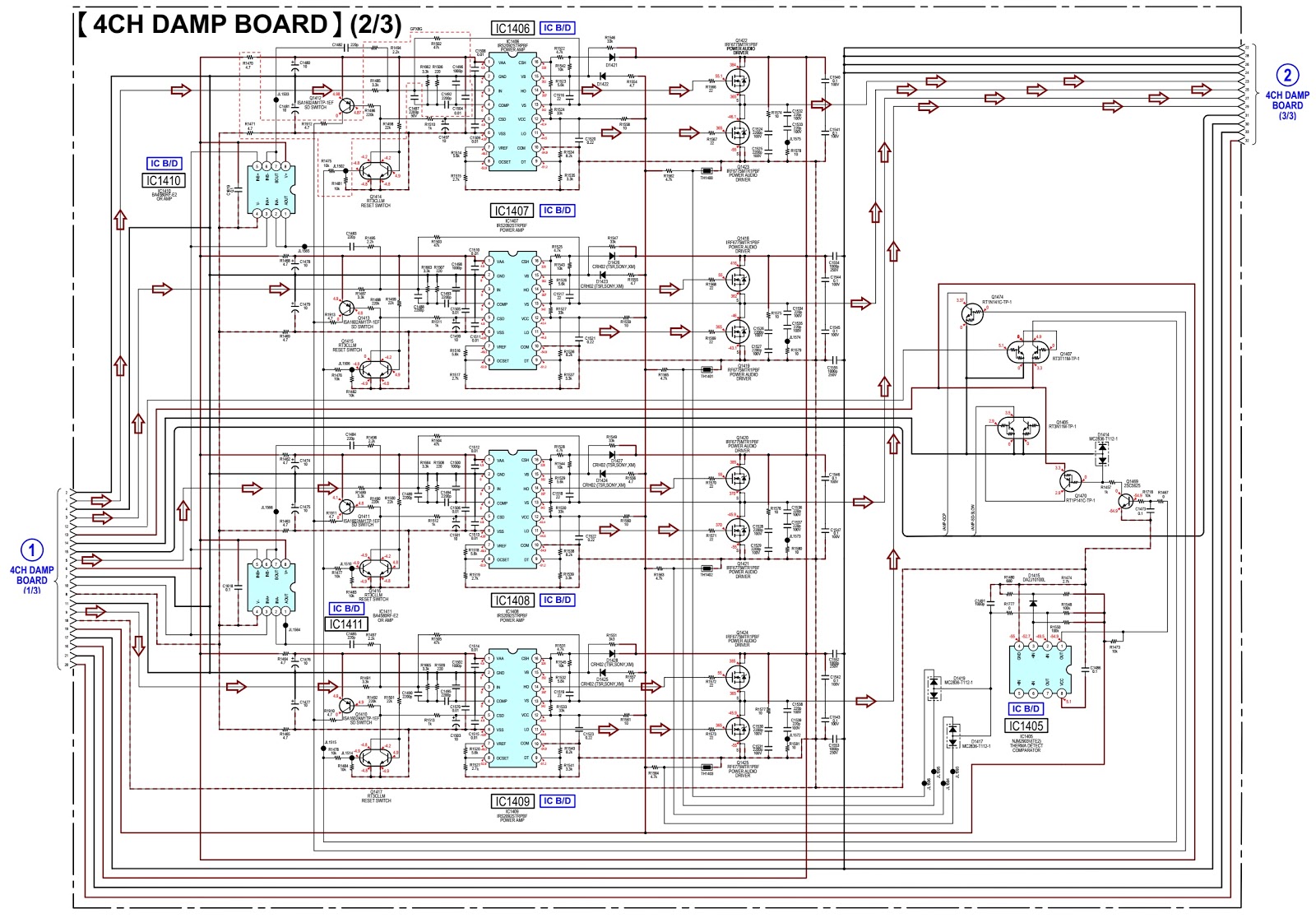

4 channel D-Amp board – schematic
PWB - Component and foil side
