TOSHIBA SPLIT AIR CONDITIONER - RAV-SM562AT - RAV-SM1402AT - Troubleshooting – Wiring Diagram
RAV-SM562AT - RAV-SM1402AT
- Troubleshooting – Wiring Diagram - TOSHIBA Air-conditioner –
Split type
INDOOR UNIT
DIGITAL INVERTER: RAV-SM562UT-E RAV-SM562BT-E RAV-SM562CT-E - RAV-SM802UT-E RAV-SM802BT-E RAV-SM802CT-E - RAV-SM1102UT-E RAV-SM1102BT-E RAV-SM1102CT-E - RAV-SM1402UT-E RAV-SM1402BT-E RAV-SM1402CT-E
DIGITAL INVERTER: RAV-SM562UT-E RAV-SM562BT-E RAV-SM562CT-E - RAV-SM802UT-E RAV-SM802BT-E RAV-SM802CT-E - RAV-SM1102UT-E RAV-SM1102BT-E RAV-SM1102CT-E - RAV-SM1402UT-E RAV-SM1402BT-E RAV-SM1402CT-E
SUPER DIGITAL INVERTER: RAV-SP1102UT-E
OUTDOOR UNIT
DIGITAL INVERTER: RAV-SM562AT-E RAV-SM802AT-E RAV-SM1102AT-E - RAV-SM1402AT-E
DIGITAL INVERTER: RAV-SM562AT-E RAV-SM802AT-E RAV-SM1102AT-E - RAV-SM1402AT-E
SUPER DIGITAL INVERTER: RAV-SP562AT-E
RAV-SP802AT-E RAV-SP1102AT-E RAV-SP1402AT-E
This Air Conditioner is a new type which adopts a new refrigerant
HFC (R410A) instead of the conventional refrigerant R22 in order to prevent
destruction of the ozone layer.
A direct current motor is adopted for indoor fan motor in the
Concealed Duct Standard Type air conditioner.
Caused from its characteristics, a current limit works on the direct
current motor. When replacing the high performance filter or when opening the
service board, be sure to stop the fan. If an above action is executed during
the fan operation, the protective control works to stop the unit operation, and
the check code “P12” may be issued. However it is not a trouble. When the
desired operation has finished, be sure to reset the system to clear “P12”
error code using the leak breaker of the indoor unit. Then push the operation
stop button of the remote controller to return to the usual operation.
TROUBLESHOOTING
Before troubleshooting
1. Required tools/instruments
> + and – screwdrivers, spanners, radio cutting pliers, nippers, push pins for reset switch
> Tester, thermometer, pressure gauge, etc.
Confirmation points before check
a. The following operations are normal.
Compressor does not operate.
> Is not 3-minutes delay (3 minutes after compressor OFF)?
> Does not thermostat turn off?
> Does not timer operate during fan operation?
1. Required tools/instruments
> + and – screwdrivers, spanners, radio cutting pliers, nippers, push pins for reset switch
> Tester, thermometer, pressure gauge, etc.
Confirmation points before check
a. The following operations are normal.
Compressor does not operate.
> Is not 3-minutes delay (3 minutes after compressor OFF)?
> Does not thermostat turn off?
> Does not timer operate during fan operation?
> Is not outside high-temperature operation
controlled in heating operation?
Indoor fan does not rotate.
Does not cool air discharge preventive control work in heating operation?
Does not cool air discharge preventive control work in heating operation?
Outdoor fan does not rotate or air volume
changes.
> Does not high-temperature release operation control work in heating operation?
> Does not outside low-temperature operation control work in cooling operation?
> Is not defrost operation performed?
> Does not high-temperature release operation control work in heating operation?
> Does not outside low-temperature operation control work in cooling operation?
> Is not defrost operation performed?
ON/OFF operation cannot be performed from remote controller.
> Is not the control operation performed from outside/remote side?
> Is not automatic address being set up? (When the power is turned on at the first time or when indoor unit address setting is changed, the operation cannot be performed for maximum approx. 5 minutes after power-ON.)
> Did you return the cabling to the initial positions?
> Are connecting cables of indoor unit and remote controller correct?
> Is not the control operation performed from outside/remote side?
> Is not automatic address being set up? (When the power is turned on at the first time or when indoor unit address setting is changed, the operation cannot be performed for maximum approx. 5 minutes after power-ON.)
> Did you return the cabling to the initial positions?
> Are connecting cables of indoor unit and remote controller correct?
Troubleshooting procedure
When a trouble occurred, check the parts along with the following procedure.
When a trouble occurred, check the parts along with the following procedure.
Trouble > Confirmation of check code
display > Check defective position and parts.
For cause of a trouble, power conditions or malfunction/erroneous
diagnosis of microcomputer due to outer noise is considered except the items to
be checked. If there is any noise source, change the cables of the remote
controller to shield cables.
Wireless remote
controller type: (For 4-way air
discharge cassette type only models)
Confirmation points before check
The following operations are normal.
Compressor does not operate.
> Is not 3-minutes delay (3 minutes after compressor OFF)?
> Does not thermostat turn off?
> Does not timer operate during fan operation?
> Is not outside high-temperature operation controlled in heating operation?
The following operations are normal.
Compressor does not operate.
> Is not 3-minutes delay (3 minutes after compressor OFF)?
> Does not thermostat turn off?
> Does not timer operate during fan operation?
> Is not outside high-temperature operation controlled in heating operation?
Indoor fan does not rotate.
Does not cool air discharge preventive control work in heating operation?
Does not cool air discharge preventive control work in heating operation?
Outdoor fan does not rotate or air volume changes.
> Does not high-temperature release operation control work in heating operation?
> Does not outside low-temperature operation control work in cooling operation?
> Is not defrost operation performed?
> Does not high-temperature release operation control work in heating operation?
> Does not outside low-temperature operation control work in cooling operation?
> Is not defrost operation performed?
ON/OFF operation cannot be performed from remote controller.
> Is not forced operation performed?
> Is not the control operation performed from outside/remote side?
> Is not automatic address being set up?
> Is not forced operation performed?
> Is not the control operation performed from outside/remote side?
> Is not automatic address being set up?
a. Did you return the
cabling to the initial positions?
b. Are connecting cables between indoor unit and receiving unit correct?
b. Are connecting cables between indoor unit and receiving unit correct?
Troubleshooting procedure
(When the power is turned on at the first time or when indoor unit address setting is changed, the operation cannot be performed for maximum approx. 5 minutes after power-ON.)
When a trouble occurred, check the parts along with the following procedure.
(When the power is turned on at the first time or when indoor unit address setting is changed, the operation cannot be performed for maximum approx. 5 minutes after power-ON.)
When a trouble occurred, check the parts along with the following procedure.
Trouble > Confirmation of lamp
display (When 4-way air discharge cassette type wireless remote controller is
connected) > Check defective position and parts.
Outline of judgement
The primary judgement to check where a trouble occurred in indoor unit or outdoor unit is performed with the following method. Method to judge the erroneous position by flashing indication on the display part of indoor unit (sensors of the receiving unit) The indoor unit monitors operating status of the air conditioner, and the blocked contents of self-diagnosis are displayed restricted to the following cases if a protective circuit works.
The primary judgement to check where a trouble occurred in indoor unit or outdoor unit is performed with the following method. Method to judge the erroneous position by flashing indication on the display part of indoor unit (sensors of the receiving unit) The indoor unit monitors operating status of the air conditioner, and the blocked contents of self-diagnosis are displayed restricted to the following cases if a protective circuit works.
WIRING DIAGRAM

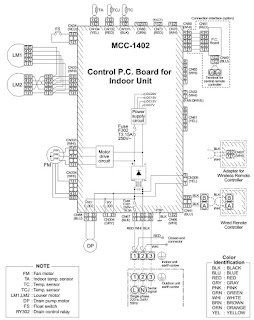

Indoor Unit.
4-Way Air Discharge Cassette Type. RAV-SM562UT-E, RAV-SM802UT-E, RAV-SM1102UT-E,
RAV-SM1402UT-E, RAV-SP1102UT-E
Concealed Duct Type. RAV-SM562BT-E, RAV-SM802BT-E, RAV-SM1102BT-E,
RAV-SM1402BT-E
Under Ceiling Type. RAV-SM562CT-E,
RAV-SM802CT-E, RAV-SM1102CT-E, RAV-SM1402CT-E

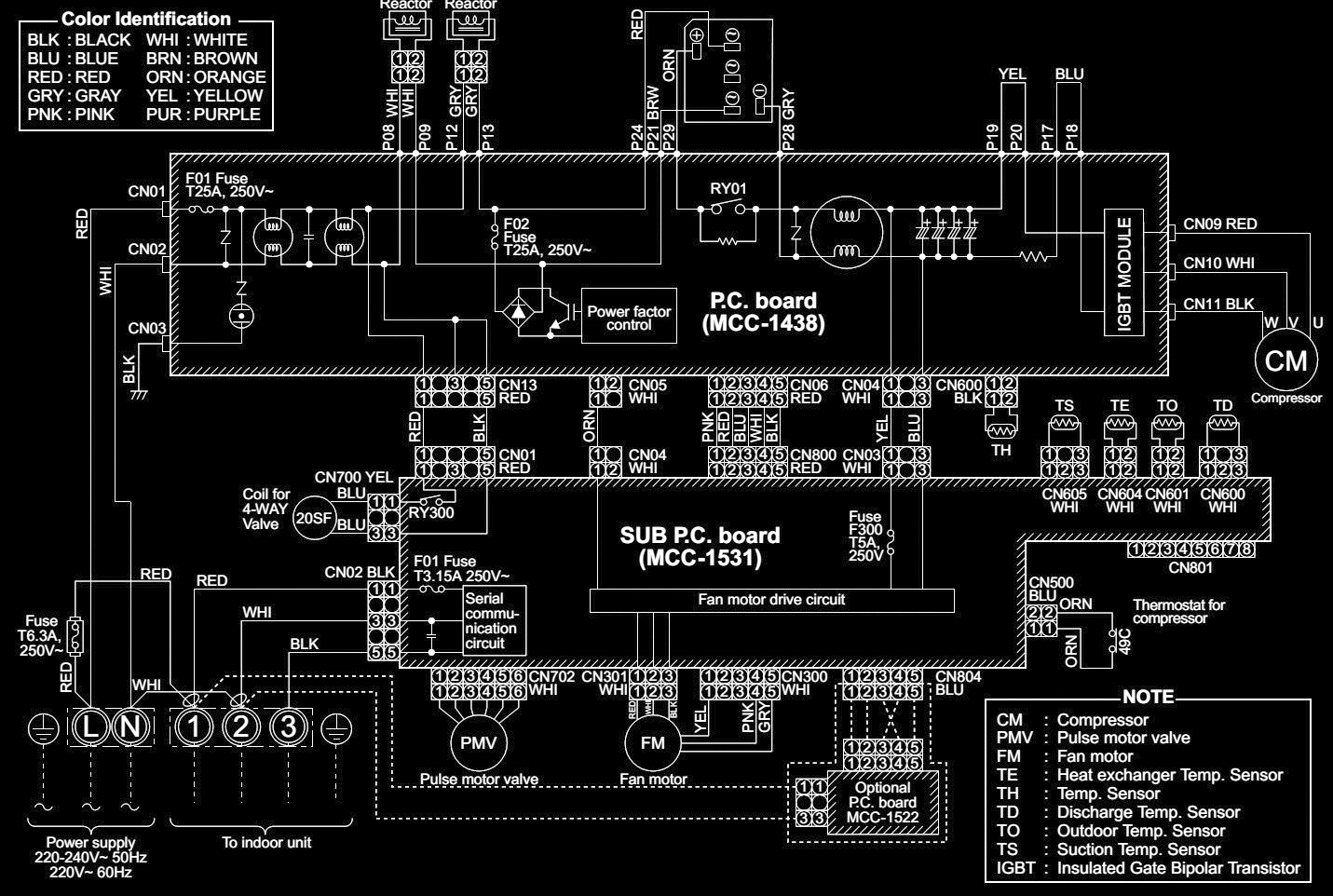

Outdoor Unit (Wiring Diagram). RAV-SM562AT-E, RAV-SM802AT-E
CLICK ON THE PICTURES TO MAGNIFY
