VESTEL - SOLARIS B-1 - WASHING MACHINE - DISASSEMBLE PROCEDURE
DISASSEMBLE PROCEDURE {Click on images to Enlarge}
Remove two screws that fix the top-plate at the back.
Push the top-plate back and pull it up.

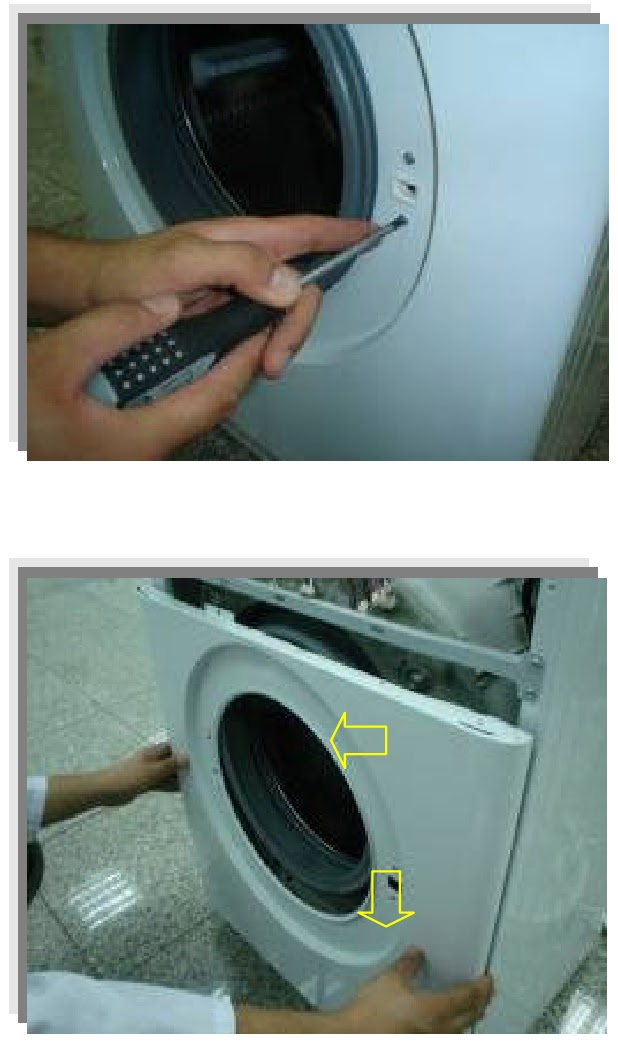

Remove two screws that fix the door.
Pull the door up.
Remove nine screws that fix the door group.
Remove the door inside plastic as it is shown in the
picture.
Remove the door hinge as it is shown in the picture.
Remove the door glass as it is shown in the picture.
Remove the door handle as it is shown in the picture.
Remove the door handle pim as it is shown in
the picture.
Remove the door handle spring as it is shown in the picture.
Remove the door lock tongue as it is shown in the picture.
Pull the gasket as it is shown in the picture.
Remove the gasket-body fixing spring.
Remove the detergent drawer and pull it up carefully.
Remove five screws, which fix the control panel to the
front panel.
Remove two screws fixing the control panel.
Remove one screw fixing the detergent box group.
Pull the control panel up.
Remove wires as it is shown in the picture.
Remove four screws fixing the electronic card.
Remove the electronic card as it is shown in the picture.
Remove the right part of the kick plate as it is shown in
the picture.
Remove the screw fixing the kick plate.
Remove the kick plate as it is shown in the picture.
Remove two screws fixing the front panel at the bottom.
Remove two screws fixing the door lock.
Push it down and remove the front panel.
Remove four screws fixing the panel.
Remove the tub seal connector, which is attached to the
detergent drawer housing.
Remove the wire that is connected to the valve.
Remove the valve connection.
Remove the detergent drawer housing assembly.
Remove the wire that is connected to the parasite filter.
Remove two screws fixing the parasite filter.
Remove the power cable group as it is shown in the picture.
Remove the wire that is connected to the pressure
switch.
Remove the pressure switch as it is shown in the picture.
Remove the pressure switch hose handcuffs and pressure
switch hose as it is shown in the picture.
Remove the screw of the door lock.
Remove the wire that is connected to the door lock.
Remove pipe clip that fixes the drain hose.
Remove pipe clip fixing the tub outlet hose.
Remove the wire that is connected to the pump motor.
Remove four screws fixing the pump motor.
Remove the wire that is connected to the heater.
Remove one nut fixing the heater.
Remove four screws fixing the front counterweight on the
front.
Pull the counterweight back
Hold the gasket and gasket-body fixing spring together, and
pull them up.
Remove two pims fixing the shock absorber.
Remove two screws fixing the upper counterweight. Recommended torque : 16.5 N
Remove four screws fixing the spring hanger sheet iron.
Remove the washing group as it is shown in the
picture.
Remove the insulating belt as it is shown in the picture.
Insulating belt is used on the washing machines which do not
have tub earth cable.
There is a new label on the belts as see n below, indicating
the insulating feature of the component.
If belt will be ordered for the productions after
01.05.2008, the spare part orders should be done via the related production
order part lists.

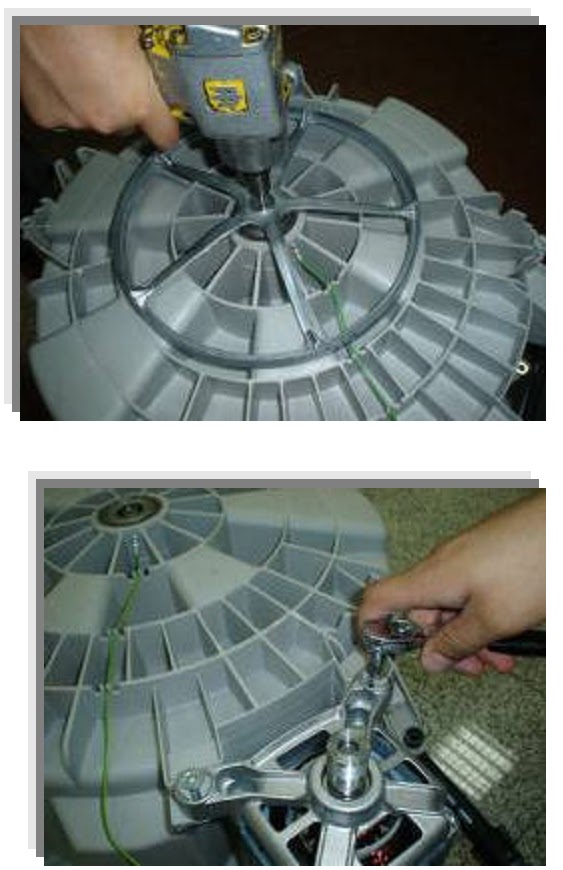

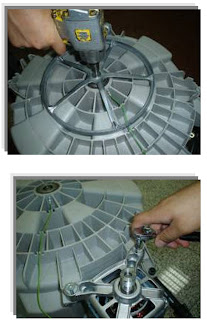

Remove the screw fixing driven pulley.
Lay down the machine with an angel of 45° to the floor.
Disconnect wires and remove the screws fastening the motor under the tub. Pull the motor up for disassembly.
Remove seventeen screws fixing tub.
Recommended torque : 4.65 N
