Wednesday, 27 March 2019

VESTEL - SOLARIS _ WASHING MACHINE _ SERVICE ASSISTANCE

 VESTEL - SOLARIS _ WASHING MACHINE _ SERVICE ASSISTANCE


TECHNICAL FEATURES
  • Capacity : 5 kg, 6 kg, 7 kg, 7.5 kg
  • Colour : White
  • Spinning : 600 RPM, 800 RPM , 1000 RPM, 1200 RPM, 1400 RPM, 1600 RPM
  • Voltage : 220-240 V
  • Frequency : 50 Hz
  • Ampere : 10 A
  • Total electrical power : 2200 W
KEY COMPONENTS AND SPECIFICATIONS





DETERGENT BOX GROUP WORK PRINCIPLE



  • PREWASH = WATER ENTRY VALVE 1
  • MAIN = WATER ENTRY VALVE 2
  • SOFTENER = WATER ENTRY VALVE 1 + VALVE 2
DISASSEMBLEY
  • Remove two screws that fix the top-plate at the back.
  • Push the top plate back and pull it up.
  • Remove two screws that fix the door.
  • Pull the door up



VESTEL - SOLARIS _ WASHING MACHINE _ DISASSEMBLE PROCEDURE

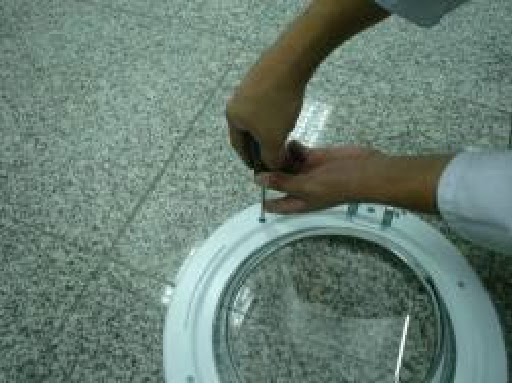

Remove 9 fixing screws that fix the door group.


  • Remove the door inside plastic as shown in the picture.
  • Remove the door hinge as shown in the picture.
  • Remove the door glass as shown in the picture.
  • Remove the door handle as shown in the picture.
  • Remove the door handle prim as shown in the picture.
  • Remove the door handle spring as shown in the picture.
  • Remove the door lock tongue as shown in the picture.
  • Remove the gasket as shown in the picture.
  • Remove the gasket body fitting spring.
  • Remove the detergent drawer and pull it up carefully.
  • Remove the 5 screws which fix the control panel to the front panel.
  • Remove 2 screws fixing the control panel.
  • Remove one screw fixing the detergent box group.
  • Pull the control panel up.
  • Remove the wires as it shown the picture.
  • Remove the screws fitting the electronic card.
  • Remove the electronic card as shown in the picture.
  • Remove the right part of the kick plate as it is shown in the picture.
  • Remove the screw fixing the kick plate.
  • Remove the kick plate as shown in the figure.
  • Remove the 2 screws fixing the front panel at the bottom.
  • Remove the 2 screws fixing the door lock.
  • Push it down and remove the front panel.

VESTEL - SOLARIS _ WASHING MACHINE _ DISASSEMBLE PROCEDURE






MEDIUM SUPPORT PANEL

  • Remove 4 screws fixing the panel.

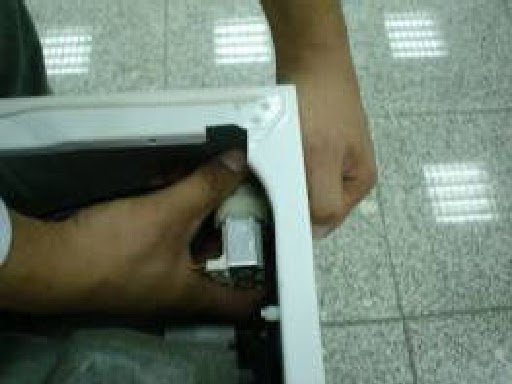

  • Remove the sub seal connector which is attached to the detergent drawer housing.
  • Remove the wire that connected to the valve.
  • Remove the valve connection.
  • Remove the detergent drawer housing ass'y.
  • Remove the wire that connected to the parasitic filter.  Remove 2 screws fixing the filter.
  • Remove the power cable group as it is shown in the picture.
  • Remove the wire that connected to the pressure switch.
  • Remove the pressure switch as it is shown in the picture.
  • Remove the pressure switch hose handcuffs and pressure switch hose as it is shown in the picture.
  • Remove the screw of door lock.
  • Remove the wire that connected to the door lock.
  • Remove the pipe clip that fixes the drain hose.
  • Remove the pipe clip fixing the tub outlet hose.
  • Remove the wire that connected to the pump motor.
  • Remove the 4 screws fixing the pump motor.
  • Remove the wire that connected to the heater.

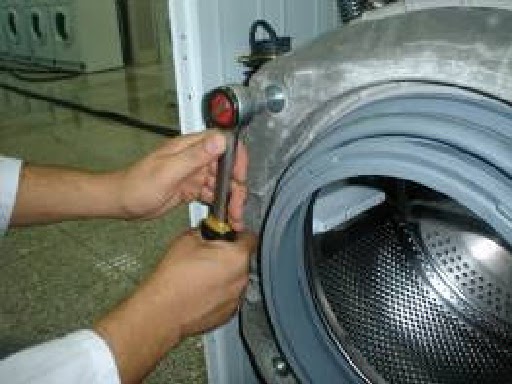

  • Remove the nut fixing the heater.
  • Remove 4 screws fixing front counterweight on the front.
  • Pull the counterweight back.
  • Hold the gasket and gasket body fixing spring together, and pull them up.
  • Remove two pins fixing the shock absorber.
  • Remove the 2 screws fixing the upper counterweight.
  • Remove the 4 screws fixing the spring hanger sheet iron.
  • Remove the washing group as it is shown in the picture.
  • Remove the insulating belt as it is shown in the picture.
  • Insulating belt is used on the washing machines which do not have tub earth cable.
  • There is a new label on the belts as seen below, indicating the insulating feature of the component.
  • If belt will be ordered for the productions after 01.05.2008, the spare part orders should be done via the related production order part lists.
  • Remove the screw fixing the driven pulley.
  • Lay down the machine with an angel of 45° to the floor. Disconnect wires and remove the screws fastening the motor under the tub.  Pull the motor up for disassembly.
  • Remove 17 screws fixing the tub.
