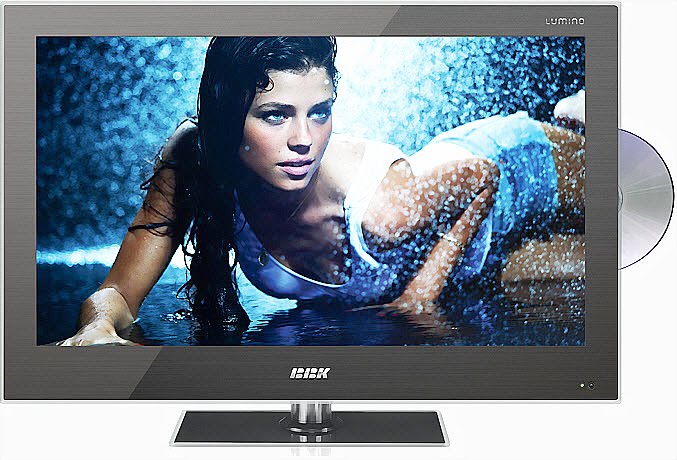

BBK LED
Model: LED2275FDT
Panel: V215H1-LE1 REV.C1
Power Supply (PSU): Rev1.0 CEM1
MainBoard: L0M05 (01) 88XR-TL0M0522FDT
IC MainBoard: MP1484,
Tuner: R620D
Control: RC-LED100
Technical Specifications LED2275FDT
BBK LED2275FDT
General repair guidelines for TV LCD LED
Possible malfunctions
- BBK LED2275FDT does not turn on at all and does not show any signs of operability. Does not blink indicators and does not respond to control buttons.
Often in such cases, the FSE040A1 power module is faulty. It is necessary to verify the presence of secondary voltages and, if not, check the power switches and rectifier diodes for a short circuit.
In case of breakdowns in the secondary circuits, the converter can operate in a short circuit mode, and during short circuit in the power elements of the primary circuit, the mains fuse usually breaks.
The breakdown of Mos-Fet keys used in pulsed sources is often caused by malfunctions of other elements, for example, power, frequency-setting, damper ... as well as elements of the Negative Stabilization Feedback. The PWM chip can also cause a malfunction of the power switch of the converter and is checked by replacement.
- There is no image, there is sound, it responds to the remote control, the channels are switched. In some cases, the image appears when you turn on and immediately disappears.
A malfunction is usually most likely in these cases at the backlight nodes of the display matrix. The reason for this may be a break in the LED circuit, or a problem in stabilizing their power supply.
It should be remembered that it is not possible to determine the open circuit in the LED lines without disassembling the panels with a tester or multimeter without an additional device, for example, a current source. To open all PN junctions connected in series at once, a voltage of several tens of volts may be required. Then it is necessary to open the panel and check each LED separately with a multimeter. If the capabilities of your multimeter do not allow you to open the LED in the forward direction or dual LEd are used, then the PN junction of the emergency zener diode can indirectly serve as a health indicator. In case of LED-a failure, the zener diode PN junction will either be cut off or broken into short-circuit.
- The TV does not turn on, does not respond to the remote control. The indicator blinks or signals standby mode.
Repair or diagnostics of the L0M05 motherboard should begin by checking the stabilizers and power converters needed to power the chips and matrix. If necessary, update or replace the software (software). Sometimes they require checking or replacing (if necessary) the elements of the MainBoard - MP1484,. In cases where the BGA processor is used, its malfunction is usually detected by local heating.
In the absence of tuning to the channels of on-air or cable television, you should make sure that the software is correct, as well as in accordance with the ratings of the supply voltage at the terminals of the R620D tuner. It is also necessary to check the presence of pulses of data exchange between the tuner and the processor via the I2C bus using an oscilloscope.
Attention! Users and owners of LED2275FDT TVs who do not have the appropriate qualifications, knowledge and experience are strongly discouraged from attempting self-repair in order to avoid negative consequences that could lead to complete non-repairability of the device.
SCHEMATIC DIAGRAM / SERVICE MANUAL ------------------> BBK LED1975, LED2275F, LED2475F, LEM1988, LEM2288F, LEM2488F (MST6M182VG + 2IN1 POWER SUPPLY)
![](https://3.bp.blogspot.com/-rtRF_N7S7pQ/XnoSt-vDxbI/AAAAAAAA3W4/wixhtnCOqOo4kjX1HoR0kvcQwz_miH-zACK4BGAYYCw/s320/FSE040A1_DCE.jpg)
The appearance of the MainBoard L0M05 is shown in the figure below:
MainBoard L0M05 uses the MSD309B processor, a BGA version of the DDRAM random access memory (RAM) and 25Q32 type SPI Flash ROM (4Mb).
It is advisable to start the repair of the motherboard by checking the voltage converters and linear stabilizers necessary to provide power to the nodes in the operating and standby modes. The processor core is powered by + 1.5V. Also, the processor voltage requires + 2.5V and + 3.3V.
If the display backlight is OK and there is no image, it is necessary to check the panel power (depending on the type, + 5V or + 12V), which is more convenient to measure directly on the LVDS connector. If, in the presence of all the supply voltages, the TV does not enter the operating mode, does not respond to the Remote Control and control buttons, you should update the SPI Flash firmware.
L0M05 can be used in TVs:
BBK LED1955DT (Panel V185B1-LE1 Rev.C1), BBK LED2275FDT (Panel V215H1-LE1 REV.C1), BBK LED2475FDT (Panel LC230EUE (TD)(A1)), BBK LEM1968DT Ver1 (Panel V185B1-LE1 Rev.C1), BBK LEM2488FDT (Panel LC230EUE), BBK LEM1988DT (Panel V185B1-LE1 Rev.C1 CMO), BBK LED2455FDT (Panel LC230EUE (TD)(A1)).
Main features of the BBK LED2275FDT device:
Installed matrix (LED panel) V215H1-LE1 REV.C1.
The formation of the necessary supply voltages for all nodes of the BBK LED2275FDT TV is carried out by the FSE040A1 power module, or its analogues.
MainBoard - the main board (motherboard) is an L0M05 module, using MP1484 chips, and others.
The R620D tuner provides TV reception and channel tuning.
Additional technical information about the panel:
Brand: CMO
Model: V215H1-LE1
Type: a-Si TFT-LCD, Panel
Diagonal size: 21.5 inch
Resolution: 1920x1080, FHD
Display Mode: TN, Normally White, Transmissive
Active Area: 476.64x268.11 mm
Surface: Antiglare (Haze 25%)
Brightness: 250 cd / m²
Contrast Ratio: 1000: 1
Display Colors: 16.7M (8-bit), CIE1931 70%
Response Time: 1.3 / 3.7 (Tr / Td)
Frequency: 60Hz
Lamp Type: 13S6P WLED Without Driver
Signal Interface: LVDS (2 ch, 8-bit), 30 pins
Voltage: 5.0VBrand: BBK, Model: LED2275FDT.
Briefly from the TV: LCD, 1080p Full HD, diagonal 22 "(56 cm), HDMI: 2, USB, backlight type: Edge LED.
The composition uses MainBoard L0M05 (01) and the LCD panel (matrix) V215H1-LE1 REV.C1.
Power Supply Unit (PSU) FSE040A1 Rev1.0 CEM1 Power Supply.
BBK LED TV LED2275FDT with V215H1-LE1 LCD, diagonal size 22 "(56 cm) 16: 9 format. The required screen brightness of 250 cd / m² is provided by LED backlight LED. The ratio of maximum brightness to minimum (contrast) is 1000 : 1. This model uses Edge LED backlighting, and the design and technical features of the TV include watching broadcasts and movies in high quality HD at a resolution of 1920x1080 pixels in graphic resolution according to the standard 1080p (Full HD). Input high-frequency or video signal l can be processed in analog systems PAL, SECAM, NTSC. Graphic processing and digital signal generation occurs in standards 480i, 480p, 576i, 576p, 720p, 1080i, 1080p. Supported media file formats: MP3, WMA, MPEG4, MKV, VideoCD , SVCD, Picture CD, JPEG.
The power of the acoustic system of sound 6 W (2x3 W) provide two speakers. The audio processing system NICAM STEREO is used.
The external interface (communication with other devices) is supported by standard input and output connectors: antenna input (RF), AV, audio x2, SCART, RGB, VGA, HDMI x2, USB. An output for connecting headphones is provided. To connect a computer or laptop to this TV model, a VGA (D-Sub 15) connector is used on the TV case, this interface supports resolutions: 640x480, 800x600, 1024x768, 1360x768, 1920x1080. The digital tuner is capable of receiving television channels in DVB-T MPEG4 standards.
The power consumed by the TV in the operating mode from the network is 35 watts.
Overall dimensions: 542x384x150 mm.
Mass of the TV: 4.3 kg.
Attention! The BBK LED2275FDT V215H1-LE1 REV.C1 panel is an expensive and unreliable element.
Avoid any impact on the glass and pressure on the surface of the screen to avoid damage to the LED panel!
It is also unsafe to get liquid on the screen. Sometimes one drop is enough if it flows down the glass onto the cables so that the TV becomes unrepairable.
