REPAIR / SERVICING TV LG 47LM580S

Technical description and composition of the LG 47LM580S TV, panel type and applicable modules. The composition of the modules.
LG LED
Model: 47LM580S
Chassis / Version: LD21B
Panel: LC470EUE (SE) (F1)
LED backlight: 47 V12 Edge rev1.4 7 L / R-Type 6920L-0131C
T-CON: 6870C-0401B
LED driver (backlight): integrated into PSU
PWM LED driver: GPCD2430A, 100BCA148AZOH, 3843CM
MOSFET LED driver: 86106LZ
Power Supply (PSU): EAX64310401 (1.4) LGP4247H-12LPB
PWM Power: FAN7930 (PFC), STR-A6059H (Stb), L6599AD (PWM)
MOSFET Power: 18NM60N, 13NM60
MainBoard: EAX64317403 (1.0)
IC MainBoard: CPU: LGE2111A-T8, Nand: NAND01GW3B2CN6E, DDR: H5TQ1G63DFR-H9C, SPI Flash: W25Q80BV
Tuner: TDSQ-G001D
Specifications 47LM580S
LG 47LM580S
General repair guidelines for TV LCD LED
Possible malfunctions
- The LG 47LM580S TV does not turn on, does not respond to the remote control and the control panel buttons, the indicators do not light up and do not blink.
With such manifestations, a malfunction is most likely to be detected in the EAX64310401 power module. It is necessary to measure its output supply voltages, and in case of their absence, check the serviceability of power switches (18NM60N, 13NM60) of converters and rectifier diodes for the probability of breakdown in PN semiconductor junctions.
In case of any breakdown of semiconductors in the secondary circuits, the converter can usually work normally in emergency short circuit mode. There are no output voltages. And during short circuit in the power elements of the primary circuit, as a rule, the mains fuse breaks and less often the current sensor at the source of the key.
Breakdown of power switches (MosFet) in pulsed sources is sometimes caused by malfunctions of other circuit elements, for example, in circuits supplying a PWM controller, frequency-setting or damper ones, as well as in negative feedback (OOS) stabilization circuits. PWM controllers (PWM) FAN7930 (PFC), STR-A6059H (Stb), L6599AD (PWM), if they do not have visible damage to the case and open fault between the terminals, are usually checked by replacement.
- There is no image, there is sound, it is responding to the remote control. Or immediately after turning on for a second, the image may appear and immediately disappear.
As a rule, in such cases there is no display backlight. The reason can be both in the power supply of the LEDs, in their serviceability (breakdown or breakage), as well as in the violation of the contact connections of the LED strips.
Without a special current source, it is impossible to check the line of series-connected LEDs, and for this purpose it is not safe to use any voltage sources above 12V. Then it remains only to open the panel and check each LED separately. Usually, Chinese 9V-powered multimeters light up a single 3-volt LED, if you connect the probes in the forward direction, the red probe to the anode, and the black to the cathode. In dual 6-volt LEDs, the PN junction of its emergency zener diode can serve as a health indicator. In the event of a LED malfunction, its zener diode will either be cut off or broken into short-circuit.
- The TV does not turn on, does not respond to the remote control. The indicator blinks or signals standby mode.
Repair or diagnostics of the EAX64317403 motherboard should begin by checking the stabilizers and power converters needed to power the chips and matrix. If necessary, update or replace the software (software). In cases of attempts to repair the MB (SSB) board, it is necessary to check the health of its elements - CPU: LGE2111A-T8, Nand: NAND01GW3B2CN6E, DDR: H5TQ1G63DFR-H9C, SPI Flash: W25Q80BV which may require replacement with new ones. If a BGA processor is installed, there is a possibility of a violation of the soldering of the contacts of its conclusions with the board (it is diagnosed by heating).
If the TV works normally from external devices, but does not tune into television channels, the TDSQ-G001D tuner may be malfunctioning. In such cases, first of all, you should make sure that there are supply voltages at its corresponding conclusions. It is also necessary to make sure that the tuner and processor can exchange data via the I2C bus. Sometimes the cause of the inoperability of the tuner may be a software failure.
Once again, remind users! Attempts to self-repair the LG 47LM580S TV without the appropriate qualifications and the necessary experience can lead to its complete non-repairability!

 Service manual and schematic diagram -------------------------> LG 47LM580S Chassis LD21B

 47LM580S, 47LM580T, 47LM585S -ZA/ZD

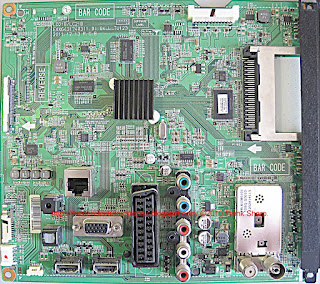

 The appearance of the MainBoard EAX64317403 is shown in the figure below:
EAX64317403
EAX64317403 can be used in TVs:
LG 32LM580S (Panel LC320EUN (SE)(F2)), LG 32LS5610 (Panel T320HVN01.0), LG 42LM580S ZA (Panel LC420EUE (SE)(F1)), LG 42LS5620 (Panel T420HVN01.1), LG 32LS5600 (Panel T320HVN01.0), LG 42LM585S -ZD (Panel LC420EUE (SE)(F1)).
The appearance of the power supply
Main features of the device LG 47LM580S:
Installed matrix (LED-panel) LC470EUE (SE) (F1).
The matrix control uses the Timing Controller (T-CON) 6870C-0401B.
To power the backlight LEDs, a converter is used, combined with a power supply unit, controlled by a PWM controller GPCD2430A, 100BCA148AZOH, 3843CM. As power elements of the LED driver, keys of type 86106LZ are used.
The necessary supply voltages for all nodes of the LG 47LM580S TV are generated by the EAX64310401 power module or its analogs using FAN7930 (PFC), STR-A6059H (Stb), L6599AD (PWM) microcircuits, and power switches of the 18NM60N, 13NM60 type.
MainBoard - the main board (motherboard) is an EAX64317403 module using CPU chips: LGE2111A-T8, Nand: NAND01GW3B2CN6E, DDR: H5TQ1G63DFR-H9C, SPI Flash: W25Q80BV and others.
The TDSQ-G001D tuner provides TV reception and channel tuning.
Additional technical information about the panel:
Brand: LG Display
Model: LC470EUE-SEF1
Type: a-Si TFT-LCD, Panel
Diagonal size: 47 inch
Resolution: 1920x1080, FHD
Display Mode: S-IPS, Normally Black, Transmissive
Active Area: 1039.68x584.82 mm
Surface: Antiglare (Haze 1%), Hard coating (2H)
Brightness: 360 cd / m²
Contrast Ratio: 1400: 1
Display Colors: 16.7M (8-bit), CIE1931 68%
Response Time: 6 (G to G)
Frequency: 60Hz
Lamp Type: WLED Without Driver
Signal Interface: LVDS (2 ch, 8-bit), 51 pins
Voltage: 12.0V
Posted By: FRANK at 06:53
