Technical description and composition of the LG 47LM640S TV, panel type and applicable modules. The composition of the modules.LG LED
Model: 47LM640S ZA
Chassis / Version: LD22E
Panel: LC470EUG (PE) (F1)
LED backlight: 6920L-0001C, 6922L-0021A, 6916L-0890A
LED driver (backlight): integrated into PSU
PWM LED driver: UC2843BD1 (Step-Up LED), AAT2430AISX, R5F100BCAFP
MOSFET LED driver: STF19NF20, PHT4NQ10LT
Power Supply (PSU): EAX64744204 (1.3) EAY62608903 3PAGC10103A-R
PWM Power: L6599AD (PWM Resonant), FAN7930BG (PFC), STR-A6059H
MOSFET Power: STF13NM60N, STF10NM60N
MainBoard: EAX64307906 (1.0) EBR75226839
IC MainBoard: LCE2112, H5TQ2G63DFR, KLM2G1HE3F, MICOM R5F100GEA, TPS65178, STA3808WE, 24C16
Tuner: TDSN-G351D
Control: IR: EBR74560901, WI-fI: EAT61613401 TWFM-B003D
Specifications 47LM640S
LG 47LM640S
General repair guidelines for TV LCD LED
Possible malfunctions
- The LG 47LM640S TV does not turn on and does not show any signs of turning on, does not respond to the control buttons or to the remote control.
In such cases, the EAX64744204 power supply is usually faulty. It is then necessary to measure its output voltages and, if they are absent, you should check the power switches (STF13NM60N, STF10NM60N) and rectifier diodes of the converters for a short circuit probability.
In case of diode breakdowns in the secondary circuits, the converter can operate in emergency short-circuit mode without output voltages, and during short circuit in the power elements of the primary circuit, the mains fuse and / or current sensor at the source of the key usually breaks.
Mos-Fet power switches, used in switching power supplies, sometimes fail due to a malfunction of any other elements that can put it out of operation in key mode or create an excess of the maximum permissible parameters of the switch. These can be elements supplying the PWM controller, frequency-setting or damping circuits, or negative feedback elements in the stabilization circuit. PWM controllers L6599AD (PWM Resonant), FAN7930BG (PFC), STR-A6059H, in the absence of visible damage or frank short-circuit between the terminals, are checked by replacing with new, or obviously working.
- There is no image, there is sound, it responds to the remote control. Or the image may appear for a second when turned on and immediately disappears.
In some of these cases, the malfunction is caused by a lack of backlighting on the display. The reason for this may be a break in the LED circuit, or a problem in stabilizing their power supply.
To check the LED strips, to open all the transitions of the LEDs, several tens of volts or more are needed, it is best to use a current source for such purposes. The breakage of several PN junctions connected in series cannot be detected with a multimeter or tester. In such cases, it is necessary to open the panel and check each LED. If your multimeter cannot open the LED transitions in forward bias, sometimes you can detect the presence of a PN junction of the protective zener diode by connecting the probes in the opposite direction. If the zener diode is broken or broken in short-circuit, then the LED is faulty and needs to be replaced.
- The indicator on the front panel blinks, the TV does not turn on in the operating mode, it does not respond to the remote control.
Repair or diagnostics of the EAX64307906 motherboard should begin by checking the stabilizers and power converters needed to power the chips and matrix. If necessary, update or replace the software (software). Complex repair of MB (SSB) is possible only in the conditions of a service center with the necessary equipment. Checking or replacing elements LCE2112, H5TQ2G63DFR, KLM2G1HE3F, MICOM R5F100GEA, TPS65178, STA3808WE, 24C16 requires the necessary training and professional skills in repairing modules at the component level. Problems associated with the use of BGA soldering technologies can sometimes be diagnosed by warming up.
Before replacing the TDSN-G351D tuner, if there is no tuning for the channels, you must first check the software and the supply voltage at its terminals. It is also necessary to make sure that the tuner and processor can exchange data via the I2C bus
Owners and users of the LG 47LM640S TV should remember that self-repair without special knowledge, skills and qualifications can be fraught with negative consequences that can lead to complete non-repairability of the device!
Service manual / schematic diagram ----------------> LG CHASSIS: LD22E MODEL 47LM640S, 47LM640T, 47LM640S/640T-ZA.
psu schematic diagram ----------------> EAX64744204 (EAY62608903) LGP4247L-12LPB-3PM.
To reduce the backlight current in LED drivers with the AAT2430AISX controller, increase the resistance of the resistor from terminal 50 (ISET) to the housing, for example, from 3 KOhm to 4.7 KOhm. Currents will proportionally decrease in each of the 16 channels. With a parallel connection of channels, currents are summed.
The appearance of the MainBoard EAX64307906 is shown in the figure below:EAX64307906
EAX64307906 can be used in TVs:
LG 32LM640T ZA (Panel LC320EUA PE F2), LG 32LS570T (Panel LC320EUN (SE)(M2)), LG 47LM620S (Panel LC470EUE (SE)(F4)), LG 42LM670T (Panel LC420EUG(PE)(F2)), LG 42LM640T 42LM640S (Panel LC420EUG (PE)(F1)), LG 42LM620T (Panel LC420EUE (SE)(F1)), LG 47LM660T (Panel LC470EUG (PE)(F1)), LG 42LS570T (Panel T420HVN01.0), LG 42LS570S ZB (Panel LC420EUE (SE)(M1)), LG 42LM669T (Panel LC420EUG (PE)(F2)), LG 42LM669S (Panel LC420EUG (PE)(F1)), LG 37LM620T (Panel LC370EUN (SE)(F2)), LG 47LM669 (Panel LC470EUG (PE)(F2)), LG 32LS570S ZB (Panel LC320EUN (SE)(M2)), LG 47LM620T (Panel LC470EUE (SE)(F3)), LG 47LM761T ZA (Panel LC470EUH (PE)(F1), LG 32LM620S (Panel LC320EUN (SE)(F2) ), LG 47LM670T 47LM670T-ZA.BRUWLJU (Panel LC470EUG (PE)(F1)), LG 42LM660S 42LM660S-ZA.BRUWLJU (Panel LC420EUG (PE)(F1)), LG 42LM660T 42LM660T-ZA.BRUWLJU (Panel LC420EUG (PE)(F1) ), LG 32LM620T (Panel LC320EUN (SE)(F3)), LG 55LM620T 55LM620T-ZE (Panel LC550EUE (SE)(F1)).

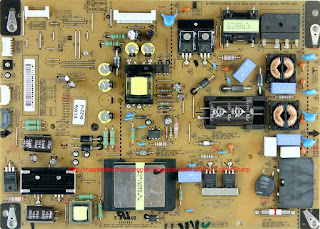

The appearance of the power supply
Main features of the device LG 47LM640S:
Installed matrix (LED-panel) LC470EUG (PE) (F1).
To power the backlight LEDs, a converter is used, combined with a power supply unit, controlled by a PWM controller UC2843BD1 (Step-Up LED), AAT2430AISX, R5F100BCAFP. As the power elements of the LED driver, keys of the STF19NF20, PHT4NQ10LT type are used.
The necessary supply voltages for all nodes of the LG 47LM640S TV are generated by the EAX64744204 power module or its analogs using L6599AD (PWM Resonant), FAN7930BG (PFC), STR-A6059H microchips and power switches of the STF13NM60N, STF10NM60N type.
MainBoard - the main board (motherboard) is an EAX64307906 module, using microcircuits LCE2112, H5TQ2G63DFR, KLM2G1HE3F, MICOM R5F100GEA, TPS65178, STA3808WE, 24C16 and others.
The TDSN-G351D tuner provides television reception and channel tuning.
Additional technical information about the panel:
Brand: LG Display
Model: LC470EUG-PEF1
Type: a-Si TFT-LCD, Panel
Diagonal size: 47 inch
Resolution: 1920x1080, FHD
Display Mode: S-IPS, Normally Black, Transmissive
Active Area: 1039.68x584.82 mm
Surface: Antiglare (Haze 1%), Hard coating (2H)
Brightness: 360 cd / m²
Contrast Ratio: 1400: 1
Display Colors: 1.06B (8-bit + Dithering), CIE1931 68%
Response Time: 8/10 (Tr / Td)
Frequency: 120Hz
Lamp Type: WLED Without Driver
Signal Interface: EPI, 100 pins
Voltage: 12.0V
