FUNAI LDD A2006 - TV-DVD COMBO - HOW TO ENTER SERVICE MODE - FIRMWARE UPDATE

FUNAI LDD A2006 - TV-DVD COMBO- HOW TO ENTER SERVICE MODE - FIRMWARE UPDATE

How to enter Service Mode_Firmware Update _ Initialize _  SMPS & Back-Light Inverter Schematics _  FUNAI 20 " LCD TV/DVD LDD-A2006 / LDD-B2006 / LDD-C2006 / LDD-D2006 Universal remote control set-up codes to Funai brand TVs
HOW TO INITIALIZE
DVD Section
* Press [1], [2], [3], [4], and [DISPLAY] buttons on the remote control unit in that order.
* Press [CLEAR] button on the remote control unit.
* When “OK” appears on the screen, the factory default will be set.
* To exit this mode, press [CH▲/▼] or [SELECT] button to go to TV mode, or press [STANDBY] button to turn the power off.
LCD TV SECTION
> Turn the power on. (Use main power on the TV unit.)
> To enter the service mode, press [STANDBY], [2], [7], [1], and [MUTE] buttons on the remote control unit in that order within 5 seconds. [To cancel the service mode, press [STANDBY] button on the remote control.]
> To initialize the LCD television, press “DISPLAY” button on the remote control unit.
> Confirm "FF" indication on the upper right of the screen.
FIRMWARE RENEWAL MODE
* Turn the power on and press [EJECT] button on the remote control unit to put the LCD TV/DVD into DVD mode. Then remove the disc.
* To put the LCD TV/DVD into F/W version up mode, press [9], [8], [7], [6], and [MODE] buttons on the remote control unit in that order.
* Insert the disc for version up into the disc slot.
* The LCD TV/DVD enters the F/W version up mode automatically. Fig. c appears on the screen. If you enter the F/W for different models, “Disc Error” will appear on the screen, then the disc will be ejected automatically.
* After programming is finished, the disc will be ejected automatically. [At this time, no button is available.]
* Remove the disc.
* Press [CH ▲/▼] button on the unit to go to TV mode, or press [STANDBY] button on the unit to turn the power off.
* Press [EJECT] button on the remote control unit to put the LCD TV/DVD into DVD mode again.
* Press [1], [2], [3], [4], and [DISPLAY] buttons on the remote control unit in that order.
* Press [CLEAR] button on the remote control unit.
* To exit this mode, press [CH▲/▼] or [SELECT] button to go to TV mode, or press [STANDBY] button to turn the power off.

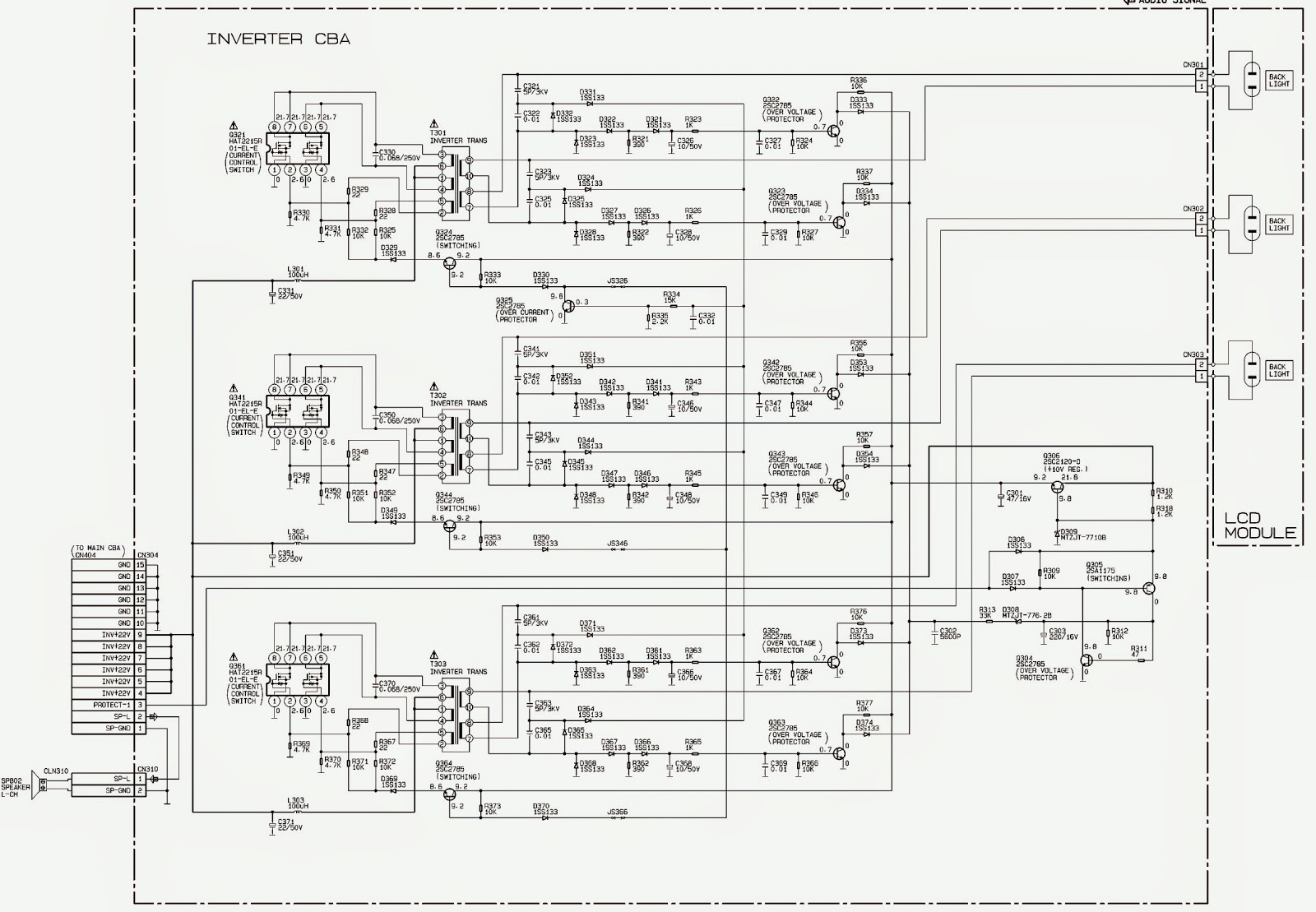

SMPS & BACK-LIGHT INVERTER SECTION CIRCUIT DIAGRAM
Universal remote control set-up codes to check with Funai Brand TVs.
If your set asks for a 3 digit code, delete the leading Zero from each code and check.  For example; if the 4 digit code given here is '0601' and you need a 3 digit code out from it, enter '601' instead of 0601.  Like-ways; you can check with all other codes given here.
0042 0076 0094 0601 0616 0654
