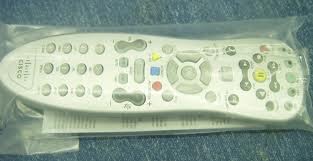

HOW TO PROGRAM CISCO AT-6400 REMOTE CONTROL

HOW TO PROGRAM CISCO AT-6400 REMOTE CONTROL




PROGRAMMING PROCEDURE

     Remote is initially programmed to only operate your set-top. You will need to set up the remote to operate your other devices using its TV, DVD, and AUX modes. The TV key may be programmed to operate a standard or high-definition television (HDTV). The DVD key may be programmed to operate a DVD player. The AUX key may be programmed to operate a VCR, a receiver, an amplifier, or a Home Theater in a Box (HTIB) system. If the remote provides only limited functionality for a device, you can look for a code that provides more functionality.
Note: You have the option to assign some remote keys to operate one device type only. For example, you may want to assign volume control to the TV only.  If this is the case, you can reprogram power, volume, and channel control using procedures found later in this guide.

DIRECT CODE ENTRY METHOD
  1. Refer to the code tables.
  2. Turn on the device that you want to assign to a mode key.
  3. Press and hold the appropriate mode key (TV, DVD, or AUX) on the remote, and then press and hold the OK key.
  4. Release both keys and the mode keys blink twice.
  5. Enter the first 4-digit setup code for the device using the numeric keys (0-9) on the remote. The mode key blinks three times to indicate that the code entry was accepted.
  6. Point the remote at the device, and press POWER to test the device.
  7. Did the device power off?  • If yes, write this code number in the table found in this guide. You may need it again if the device code is accidentally erased.   If no, repeat this procedure from step 3 using a different setup code.  Note: If none of the codes listed for your brand of  device operate the device correctly, go to What If None of the Codes Work for instructions.
  8. Repeat this procedure for each mode key you want to program.  {When an invalid code is entered, the selected mode key displays a long flash to indicate that you have not entered the code correctly.   Should the remote time out before you complete the code setup, you must start over. This is indicated by one long flash of the red LED.}
Auto-Searching the Code Library for TV or DVD Mode Codes  (Program Code 922).
  1. Turn on the device you that you want to assign to the TV or DVD key.
  2. Point the remote at the device.
  3. Press and while holding a selected mode key (TV or DVD), press the OK key. For example, to search for a TV code, press and hold TV and OK at the same time.
  4. Release both keys and all the mode keys blink twice.
  5. Enter the programming code 9 2 2 by pressing the numeric keys on the remote. The mode key you selected in step 3 blinks twice to indicate a successful entry.
  6. Point the remote toward the device, and press PLAY.
  7. Your device powers off when it finds the correct code. Then, choose one of the following options:
  • Save code and exit – Press the ENTER key on the remote to program the code in the remote and the mode key flashes three times indicating successful entry.
  • Step forward – Press the fast-forward (FF) key on the remote to step ahead through the codes one at a time. Then, return to step 6.
  • Step backward – Press the rewind (REW) key on the remote to step back through the codes one at a time. Then, return to step 6.
  • Exit without saving the code – Press the EXIT key on the remote. The selected mode key flashes three times and returns to normal operation.
  • Send the current code – Press the POWER key on the remote to send the current code. If the device turns back on, press the ENTER key. If the device does not turn on, return to step 6.
  • Continue with auto-search function – Press the PLAY key on the remote to continue with the auto search function. Then, return to step 6.
Auto-Searching the Code Library for AUX Mode Codes (Program Code 922)
  1. Turn on the device that you want to assign to the AUX key.
  2. Point the remote at the device.
  3. Press and while holding the AUX key, press the OK key.
  4. Release both the AUX key and the OK key and all the mode keys blink twice.
  5. Enter the programming code 9 2 2 by pressing the numeric keys on the remote. The AUX key blinks twice indicating a successful entry.
  6. Press the PLAY key, choose one of the following device categories and then, using the number keys on the remote, press its assigned number (1 – 4) based on the list:  1 = VCRs 2 = Receiver/Tuners 3 = Amplifiers 4 = HTIB [Note: The device categories are number-coded to provide a more direct programming method.]
  7. Point the remote toward the device, and press PLAY.
  8. Your device powers off when it finds the correct code. Then, choose one of the following options:
  • Save code and exit – Press the ENTER key on the remote to program the code in the remote and the mode key flashes three times indicating successful entry.
  • Step forward – Press the fast-forward (FF) key on the remote to step ahead through the codes one at a time. Then, return to step 7.
  • Step backward – Press the rewind (REW) key on the remote to step back through the codes one at a time. Then, return to step 7.
  • Exit without saving the code – Press the EXIT key on the remote. The selected mode key flashes three times and returns to normal operation.
  • Send the current code – Press the POWER key on the remote to send the current code. If the device turns back on, press the ENTER key. If the device does not turn on, return to step 7.
  • Continue with auto-search function – Press the PLAY key on the remote to continue with the auto search function. Then, return to step 7.
Controlling Volume for One Device (Program Code 955)
  1. Press and hold the STB mode key on the remote.
  2. Without releasing the STB key, press and hold the OK key.
  3. Release both keys and all mode keys blink twice.
  4. Enter the programming code 9 5 5 by pressing the number keys on the remote. The STB mode key blinks twice indicating a successful entry.
  5. Press and release the mode key for the device you want the volume keys to control. For example, if you want to control volume through your TV, press and release TV. The selected mode key blinks three times to indicate a successful entry.  The volume keys now control only one device whether you are in STB, TV, DVD, or AUX mode.
Controlling Volume for Different Devices (Program Code 955)
  1. Complete steps 1 through 4 of the Controlling Volume for One Device procedure.
  2. Press and release the Enter key. The STB mode key blinks three times to indicate a successful entry.  After you press the Enter key, the volume keys control the device assigned to that mode. For example, in TV mode, the volume keys control volume for the TV only.  Notes: • If any other key is pressed except the Mode keys and the ENTER key, the remote does not accept any changes or updates. The STB mode key displays a long red flash and the remote returns to normal operation.
  • If the remote times out before you complete programming volume control, the remote does not accept any changes. You must start over from step 1 of this procedure.
