LG 47LG90 - MAIN BOARD - LAYOUT - VOLTAGE CHART

LG 47LG90 - MAIN BOARD - LAYOUT - VOLTAGE CHART




MAIN PWB
  • The Main PWB contains the MICRONAS chip IC1000.
  • This IC is a Full-HD Rate Converter with Motion Blur Removal and Film De-Juddering for 1080p 100/120 Hz LCD panels.
  • Vector Based Motion Compensation with Frame Rate Conversion (eliminates the need for 3:2 Pull Down)
  • Internal Dual 10 bit LVDS input
  • Quadruple 12 bit LVDS output.
  • Motion Blur Removal increases the video frames by Interpolating a new image frame between each original frame (Motion Estimated Data Insertion) MEDI
  • Juddering is a phenomenon which appears on film based programming due to the 24 frames per second system used for recording, the picture develops visual artifacts when converted to 60 frames per second. 3:2 Pull Down was developed to eliminate this problem. Frame Rate Conversion (Real Cinema) eliminates the need for 3:2 Pull Down.
  • TruMotion 120Hz ( Vector Based Motion Compensation)
  • TruMotion 120 Hz can reduce blurring on fast moving scenes. TruMotion carefully analyses the picture signal by using advanced algorithms to automatically calculate a new image frame between each original frame (MEDI).
MAIN PWB LAYOUT          [Click on images to Enlarge]
COMPONENT LAYOUT
MAIN BOARD - BACK VIEW

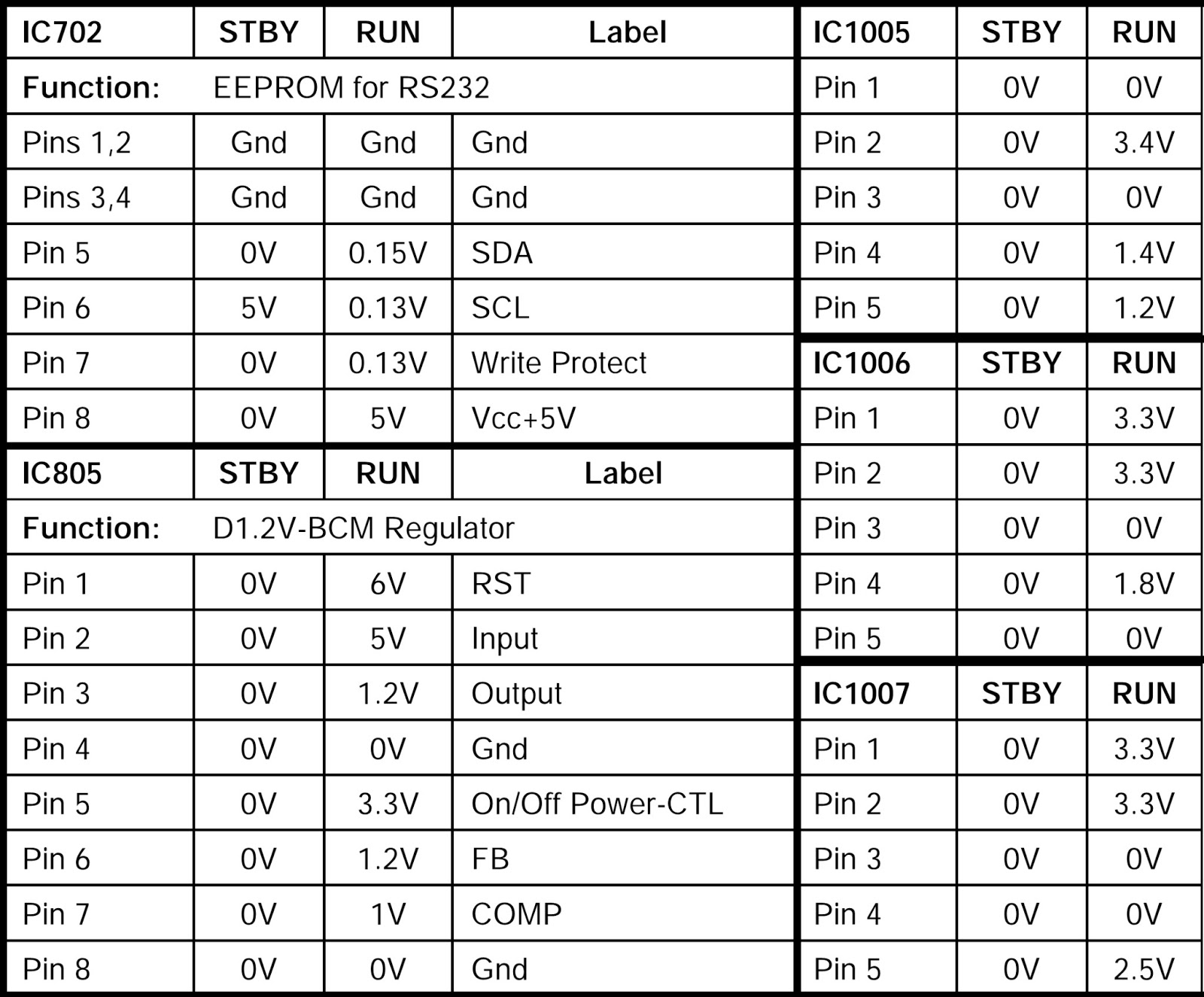

MAIN PWB [FRONT SIDE] REGULATORS
MAIN PWB [BACK SIDE REGULATORS] SIDE-1
MAIN PWB [BACK SIDE REGULATORS] SIDE - 2
MAIN PWB [BACK SIDE REGULATORS] SIDE - 3
MAIN PWB LD803 FUNCTION
  • Use LD803 as a visual aid.  This lets you know if the +5V is being converted to 3.3V for the BCM chip IC100.  If LD803 is illuminated GREEN, +3.3V is OK.
  • Note: Only ½ of the dual LED is used.
LD 803 CIRCUIT
MAIN PWB TUNER, VIDEO AND SOUND IF [SIF] CHECK PIN LOCATION
  • If you leave the shield on you can still access the same pins.  Be careful not to accidentally ground out your test lead on the shield.  (Note: This is a picture from a different model, but the concept is the same.
MAIN PWB CONNECTOR [P-800] VOLTAGE & RESISTANCE
  • Pin 21 BRI(ADIM) Is Fixed and is not used
  • Diode Mode values taken with all Connectors Removed.
  • PDIM Pin 22can vary according to type of signal being processed, OSD Backlight setting. 0.4V 0% to 3.4V 100% and the Intelligent Sensor. Output controlled from the BCM chip.
MAIN PWB CONNECTOR [P-1000] 'ODD PINS' VOLTAGE AND RESISTANCE
  • Diode Mode values taken with all Connectors Removed.
MAIN PWB CONNECTOR [P-1000] 'EVEN PINS' VOLTAGE & RESISTANCE
  • Diode Mode values taken with all Connectors Removed.
MAIN PWB CONNECTOR [P-1001] VOLTAGE & RESISTANCE
  • Diode Mode values taken with all Connectors Removed.
  • Pins identified in Bold and Blue are used to send video content to the T-CON PWB.
MAIN PWB CONNECTOR [P-404] VOLTAGE & RESISTANCE
MAIN PWB CONNECTOR [P-501] VOLTAGE AND RESISTANCE
