Tuesday 19 March 2019

ROLSEN RL-32B01 - RL-37B01 - RL-42B01 - HOW TO ENTER SERVICE MODE - TROUBLESHOOTING - HOW TO UPGRADE THE SOFTWARE

ROLSEN RL-32B01 - RL-37B01 - RL-42B01 - HOW TO ENTER SERVICE MODE TROUBLESHOOTING - HOW TO UPGRADE THE SOFTWARE

SERVICE MODE
  • Use the remote control, first open MAIN MENU with MENU button, and choose SOUND with the CHANNEL /  button, then choose the BALANCE with VOLUME , while Balance value is 0, press 0-5-3-2, to enter factory menu.
FACTORY MENU DISPLAY
TROUBLESHOOTING

Number
Trouble
Measure
1
Turn on the TV, The LED is red, no display on screen.
Replace the main board or
update the software.

2
Turn on the TV, The LED is blue, but no picture or/and no sound

Replace the main board.
3
In TV state, tuning is not possible.

should replace the main board.
4
No teletext
should replace the main board.

5
No sound
should replace the main board.

6
can not to update software
should replace the main board.

7
No reaction with PC
should replace the main board.
SOFTWARE UPDATE PROCEDURE

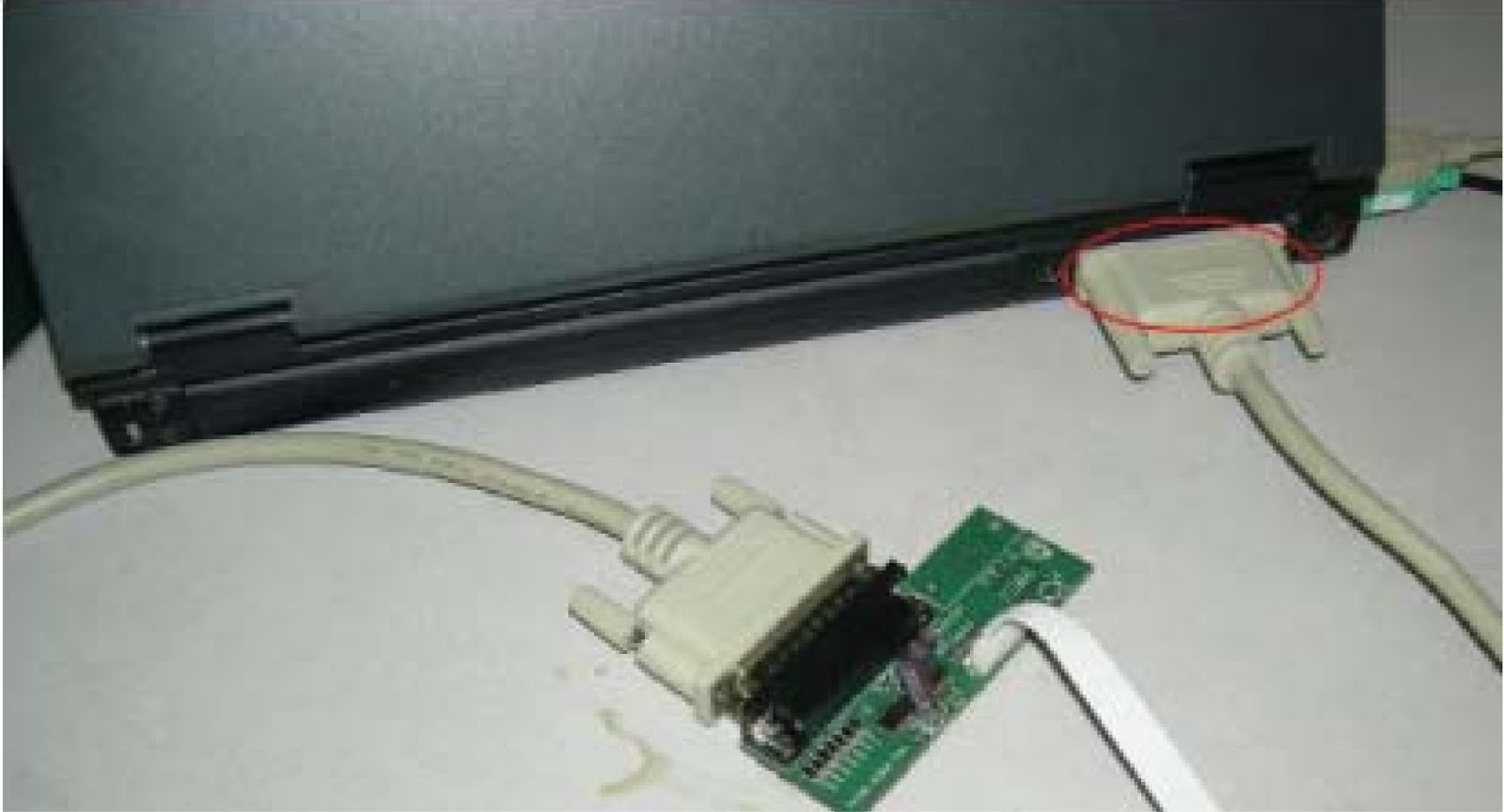

Connect the Debug board to the TV use VGA interface, and then connect the Debug board to the computer.
Set the ISP_TOOL4.0.9 ---- only for the first time update.  DLPORTIO.dll and FTD2XX.DLL must be in the same folder.
Find the folder where the ISP_TOOL4.0.9 lies in. [Note: DLPORTIO.dll and FTD2XX.DLL must be in the same folder.]
Double click the ISP_TOOL4.0.9 icon, and then a dialogue will show.
Click the Config button. And then a dialogue will show as below. You should set the Config like what the picture shows.

After you have finished all above, you should click the Apply button to complete the configuration.
Turn on the TV, then we can update.

Double click the ISP_TOOL4.0.9icon, and then a dialogue will show as below.
Click the Read button. And then do as shown
Find the update file in your computer.
Double click the update file. A dialogue will show as below.
Click the Connect button. And then do as shown below.
Click the Run button.
When the update is finished, a dialogue will show as below.
MAIN BOARD
POWER BOARD [LCD3707]
POWER BOARD [LCD4007]
