SAMSUNG CERAMIC GLASS HOB C61RCAST - REPAIR HELP - ELECTRICAL CONNECTION - SCHEMATIC DIAGRAM - ERROR CODES - WIRING DIAGRAMS
REPLACEMENT OF GLASS TOP PLATE ASS'Y
- Disconnect power
- Remove 12 screws (4 - side direction) securing the Glass Top Plate Assembly to the Case Burner Assembly.
- Raise the Glass Top Plate Assembly.
- After replacement of the Glass Top Plate Assembly, Screw the Glass Top Plate Assembly to the Case Burner Assembly.
REPLACEMENT OF PCB ASS'Y
- Lift up the upper P.C.B Parts.
- Remove P.C.B Assembly pushing 2 hooks securing the lower P.C.B parts toward the burner.
- After replacement of P.C.B Assembly, connect all leads accurately as shown in the picture.
REPLACEMENT OF HEATER ASS'Y
Secure spring - Plate to New Burner as shown in
the picture.
Rear - Left - Single Burner (1100 W)

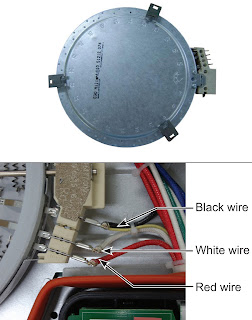

- Disconnect all the lead wires from the Burner.
- Lift up the burner to remove.
- Assemble Spring - Plate to New Burner. (Refer to the numbers on the bottom for Spring - Plate securing positions)
- Mount the Burner to Case - Burner and connect Lead Wires.
FRONT LEFT - DOUBLE BURNER [2010W]
- Disconnect all the lead wires from the Burner.
- Lift up the burner to remove.
- Assemble Spring - Plate to New Burner. (Refer to the numbers on the bottom for Spring - Plate securing positions)
REAR RIGHT - OVAL BURNER [2190W]
TERMINAL BLOCK REPLACEMENT
- Disconnect all the lead wires from the Terminal Block.
- Remove the terminal block cover as shown in the picture to separate power cord.
- Connect lead wires inside the product as shown in the picture after replacing Terminal Block.
ELECTRICAL CONNECTION
- Before connecting, check that the nominal voltage of the appliance, that is the voltage stated on the rating plate, corresponds to the available supply voltage.
- The rating plate is located on the lower casing of the hob.
- The heating element voltage is AC230 V ~ . The appliance also works perfectly on older networks with AC220 V ~ .
- The hob is to be connected to the mains using a device that allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm, eg. automatic line protecting cut - out, earth leakage trips or fuse.
- A type H05SS - F (180°C) cable or one with a higher grade must be used as the mains connecting cable.
- The connection must be carried out as shown in the diagram. The connecting links should be fitted according to the appropriate connection diagram.
- The earth lead is connected to terminal [GND]. The earth lead must be longer than leads carrying electric current.
- The cable connections must be made in accordance with regulations and the terminal screws tightened securely.
- Finally, the connecting cable is to be secured with the mains cable cleat and the covering closed by pressing firmly (lock into place).
- Before switching on for the first time, any protective foil or stickers must be removed from the glass ceramic surface.
- Once connected to the mains supply check that all cooking zones are ready for use by briefly switching each on in turn at the maximum setting.
SCHEMATIC DIAGRAM
ERROR CODES
SE => ERROR BY SENSOR FIELD SHORT
In case of the control panel’s sensor field is shorted more
than 10 seconds.
ex:
NO.1 Place a damp cloth on the control panel.
NO.2 Liquid boils over and lands on the control panel.
NO.3 More than one key is pressed more than 10
seconds.
Ot => ERROR BY OVER TEMP 110 °C AT P.C.BOARD
In case of the temperature rises over 110 °C during
operation of Hob.
( Prevention of overheat due to abnormal operation.)
WIRING DIAGRAMS
Click on images to Enlarge
