SAMSUNG - UN32C5000QF - UN32C4000PD - UN37C5000QF - UN40C5000QF - UN46C5000QF - UN46C5000QR - LED LCD TV - TROUBLESHOOTING

SAMSUNG - UN32C5000QF - UN32C4000PD - UN37C5000QF - UN40C5000QF - UN46C5000QF - UN46C5000QR - LED LCD TV - TROUBLESHOOTING



TROUBLESHOOTING:  APPLICABLE TO - UN32C5000QF - UN32C4000PD - UN37C5000QF - UN40C5000QF - UN46C5000QF - UN37C5000QR - UN40C5000QR - UN46C5000QR
UN32C4000PXNO POWER [A TYPE]

  • The LEDs on the front panel do not work when connecting the power cord.
  • The SMPS relay does not work when connecting the power cord.
  • The units appear to be dead.

The IP relay or the LEDs on the front panel does not work when connecting the power cord if the cables are improperly connected or the Main Board or SMPS is not functioning. In this case, check the following:
  1. Check the internal cable connection status inside the unit.
  2. Check the fuses of each part.   -Check the output voltage of SMPS.
  3. Replace the Main Board.
                                                         Click on image to Enlarge
LOCATION [MAIN-TOP]
LOCATION [MAIN-BOTTOM]
LOCATION [T'CON]
NO VIDEO _ ANALOG PC SIGNAL [A-TYPE]

  • Audio is normal but no picture is displayed on the screen.


  1. Check the PC source.
  2. Check the Arsenal, Check the Chelsea.
  3. This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected.
LOCATION [MAIN-BOTTOM]

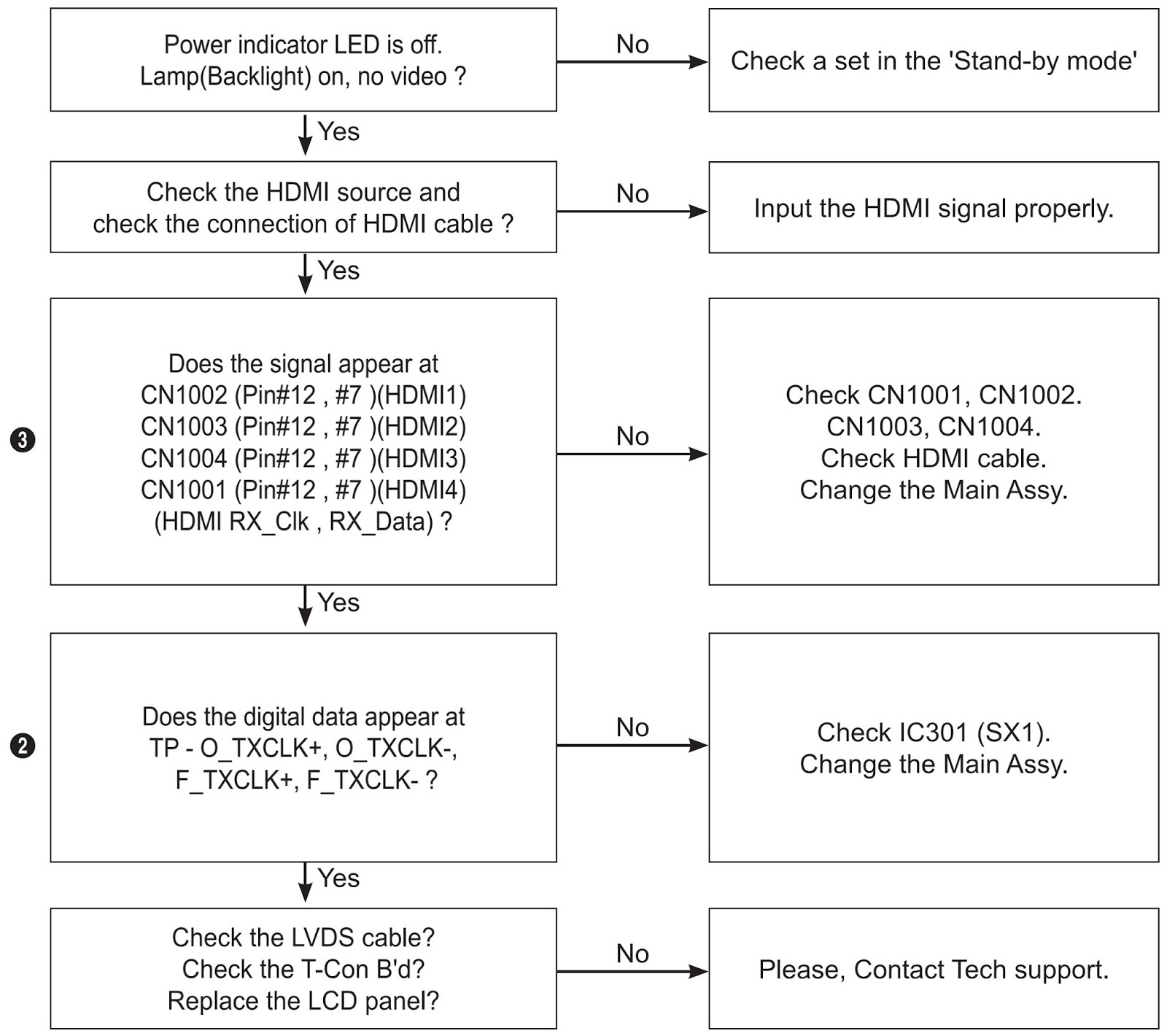

NO VIDEO [HDMI 1,2,3,4 - DIGITAL SIGNAL [A-TYPE]

  • Audio is normal but no picture is displayed on the screen.


  1. Check the HDMI source.
  2. Check the HDMI switch, Check the Chelsea.
  3. This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected.
LOCATION [MAIN-TOP]
LOCATION [MAIN-BOTTOM]
NO VIDEO [TUNER-CVBS] [A-TYPE]

  • Audio is normal but no picture is displayed on the screen.


  1. Check the Tuner CVBS source.
  2. Check the Tuner, Check the Chelsea.
  3. This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected.
LOCATION [MAIN-BOTTOM]
NO VIDEO _ TUNER DTV [A-TYPE]

  • Audio is normal but no picture is displayed on the screen.


  1. Check the DTV source.
  2. Check the Tuner, Check the Chelsea.
  3. This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected.
LOCATION [MAIN-BOTTOM]
NO VIDEO _ VIDEO CVBS [A-TYPE]
LOCATION [MAIN-BOTTOM]
NO VIDEO _ COMPONENT [A-TYPE]
LOCATION [MAIN-BOTTOM]

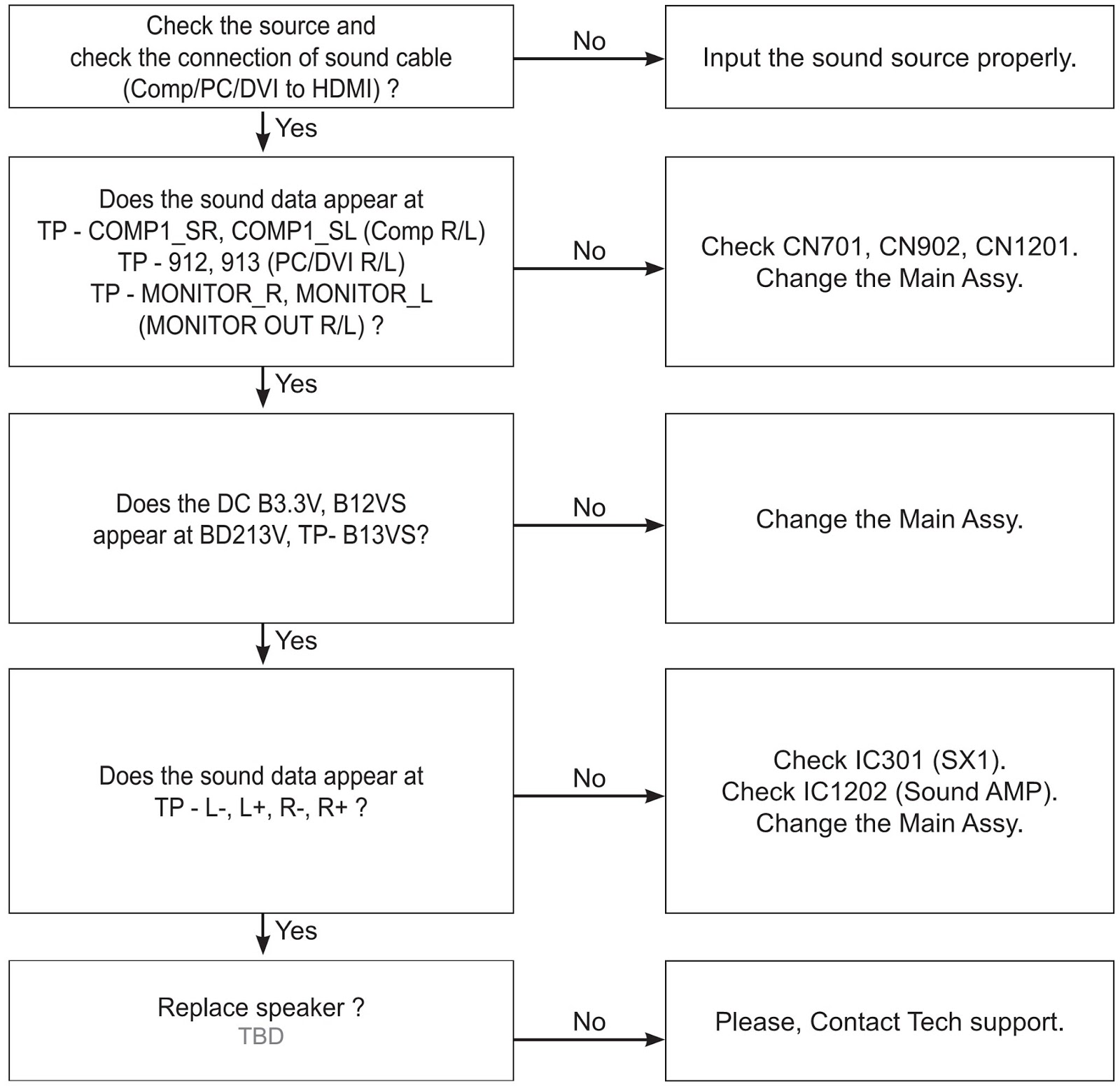

NO SOUND [A-TYPE]
LOCATION [MAIN-TOP]
MAIN [BOTTOM]
