Wednesday, 20 March 2019

SONY KDL-26M4000 - KDL-32M4000 - KDL-37M4000 - KDL-40M4000 - SELF DIAGNOSTIC FUNCTION - RESETTING TO FACTORY DEFAULTS - POWER SCHEMATIC

SONY KDL-26M4000 - KDL-32M4000 - KDL-37M4000 - KDL-40M4000 - SELF DIAGNOSTIC FUNCTION - RESETTING TO FACTORY DEFAULTS - POWER SCHEMATIC

APPLICABLE TO:
KDL-26M4000 - RM-YD026 CHILE/LATIN AMERICA
KDL-26M4000 - RM-YD026 US/CND/MX
KDL-32M4000 - RM-YD026 CHILE/LATIN AMERICA
KDL-32M4000 - RM-YD026 US/CND/MX
KDL-37M4000 - RM-YD026 CHILE/LATIN AMERICA
KDL-37M4000 - RM-YD026 US/CND/MX
KDL-40M4000 - RM-YD026 CHILE/LATIN AMERICA
KDL-40M4000 - RM-YD026 US/CND/MX
SELF DIAGNOSTIC FUNCTION
The units in this manual contain a self-diagnostic function. If an error occurs, the TIMER/PIC OFF LED indicator will automatically begin to fl ash. The number of times the LED fl ashes translates to a probable source of the problem. A defi nition of the TIMER/PIC OFF LED fl ash indicators is listed in the instruction manual for the user’s knowledge and reference. If an error symptom cannot be reproduced, the Remote Commander can be used to review the failure occurrence data stored in memory to reveal past problems and how often these problems occur.
DIAGNOSTIC TEST INDICATORS
When an error occurs, the TIMER/PIC OFF LED indicator will fl ash a set number of times to indicate the possible cause of the problem. If there is more than one error, the indicator will identify the first of the problem areas.
DESCRIPTION OF LED INDICATORS
LED
LED Type
Description
POWER LED
Green LED
Light is green when the TV set is on
STANDBY LED
Red LED
Light is red when the TV set is in PC standby mode.
TIMER/PIC OFF LED
Amber/Green/Red
* Light is amber when the timer is set.
* Light is green when the Backlight feature is activated.
* Blinks red when indicating the TV may need servicing

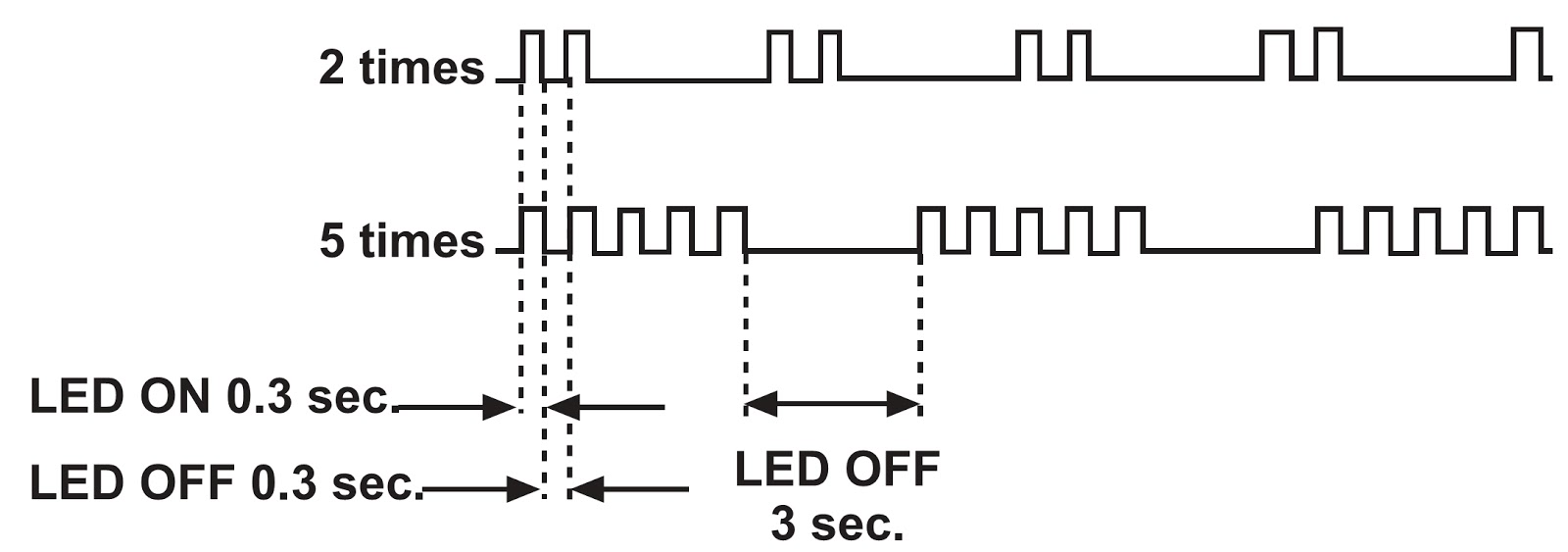

DISPLAY OF TIMER/PIC OF LED FLASH COUNT
VIEWING DIAGNOSTIC LIST
  • TV must be in standby mode. (Power off).
  • Press the following buttons on the Remote Commander within a second of each other: [DISPLAY =>Channel 5 =>Volume + => TV POWER.]
  • The Self Check list displays.
  • Results for all of the following diagnostic items are displayed at the bottom of the screen. No error has occurred if the screen displays a “0”.
Clearing the Diagnostic List
  • Using the remote commander, select Factory Default button.
  • To reset the Diagnostic List, select Yes.
  • To start Auto Program, select Yes. NOTE: Allow 30+ minutes for Auto Program to complete.
  • Using the customer’s information, reset their adjustments.
CAUTION: To remove the error indicator number you have to reset the settings back to the Factory Defaults. This action over-writes all customer settings. Before performing this reset, contact the customer to determine what adjustments they have made.
RESETTING THE TV TO FACTORY DEFAULTS
  • Traditional Service Mode is not available in this chassis. The only option for service technicians is to reset all of the settings to the Factory Default from the Self Diagnostic screen.  Resetting the TV to the Factory Defaults will over-write all customer settings. Before performing this reset, contact the customer to determine what adjustments they have made.
  • TV must be in standby mode. (Power off).
  • Press the following buttons on the Remote Commander within a second of each other: [DISPLAY => Channel 5 => Volume + => TV POWER.]
  • Results for all of the following diagnostic items are displayed at the bottom of the screen. No error has occurred if the screen displays a “0”.
  • From the Self Diagnostic screen, select Factory Default button and then select Yes.
  • To start Auto Program, select Yes.  NOTE: Allow 30+ minutes for Auto Program to complete.
  • Using the customers information, reset their adjustments.
GID BOARD [POWER SCHEMATIC - FOR KDL-26M4000 ONLY] {Click on images to Enlarge}
GID(32) - POWER
G2D BOARD [1 of 2] KDL37M4000 ONLY
G2D BOARD [2 of2] KDL37M2000 ONLY
