Wednesday, 27 March 2019

VESTEL FUTURE - 1000 _ WASHING MACHINE _ DISASSEMBE PROCEDURE

 VESTEL FUTURE-1000 _ WASHING MACHINE _ DISASSEMBE PROCEDURE


  • Remove the two screws that fix the top plate at the back.
  • Push the top plate back and pull up.
  • Remove two screws that fix the door.
  • Pull the door up.
  • Remove the screws that fix the door group.
  • Remove the door inside plastic as shown in picture.
  • Remove the door hinge as shown in picture.
  • Remove the door glass as shown in picture.
  • Remove the door handle as shown in picture.
  • Remove the door handle pim as shown in picture.
  • Remove the door handle spring as shown in picture.
  • Remove the door lock tongue as shown in picture.
  • Pull the gasket as it is shown in picture.
  • Remove the gasket-body fixing string.
  • Remove the detergent drawer and pull it up carefully.
  • Remove the screws [5] which fix the control panel to the front panel.
  • Remove two screws fixing the control panel.
  • Remove one screw fixing the detergent box group.
  • Pull the control panel up.
  • Remove the wires are shown in picture.
  • Remove the four screws fixing the electronic card.
  • Remove the electronic card as shown in picture.

VESTEL FUTURE-1000 _ WASHING MACHINE _ DISASSEMBE PROCEDURE


                                                                         [2]

  • To remove kickplate  as shown in picture.
  • Remove 2 screws fixing the front panel at the bottom.
  • Remove 2 screws fixing the door lock.
  • Push it down, and remove the front panel.
  • Remove 4 screws fixing the panel.
  • Remove the sub-seal connector which is attached to the detergent drawer housing.
  • Remove the wire that connected to the valve.
  • Remove the valve connection.
  • Remove the detergent drawer housing ass'y.
  • Remove the wire group connected to the parasite filter.  Remove two screws fixing the parasite filter.
  • Remove the power cable group as shown in picture.
  • Remove the wire that is connected the pressure switch.
  • Remove the pressure switch as shown in picture.

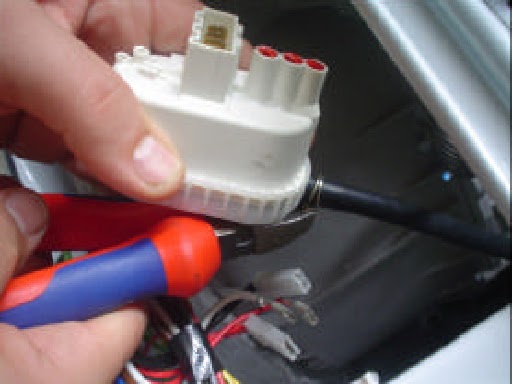

  • Remove the pressure switch hose handcuffs and pressure switch hose as shown in picture.
  • Remove the one screw fixing the door cover.
  • Remove the wire that connected to the door lock.
  • Remove pipe clips that fixes the drain hose.
  • Remove pipe clip that fixes the tub outlet hose.
  • Remove the wire that connected to the pump motor.

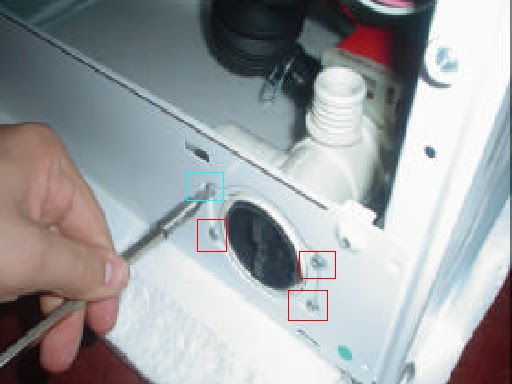

  • Remove the four screws fixing the pump motor.
  • Remove the wire that connected to the resistance.
  • Remove the nut fixing resistor.
  • Remove the screws fixing the front counterweight on the front and pull it up.
  • Hold the gasket and gasket body fixing spring together and pull them up.

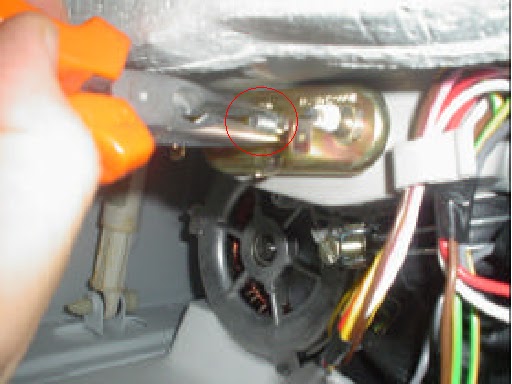

  • Remove the two pim fixing the shock absorbar.
  • Remove the four screws fixing the spring hanger sheet iron.
  • Remove the washing group as shown in picture.
  • Remove the 3 screws fixing the upper counterweight.
  • Remove the belt shown in figure.
  • Remove the screws fixing driven pulley.
  • Lay down the machine with an angel of 45° to the floor. Disconnect wires and remove two screws fastening the motor under the tub.  Pull the motor up for disassembly.
  • Remove 17 screws fixing the tub.
