Friday, 7 February 2020

REPAIR / SERVICING TV PHILIPS 17PF4310

Technical description and composition of the PHILIPS 17PF4310 TV, type of panel and applicable modules. The composition of the modules.
PHILIPS
Model: 17PF4310 / 58
Chassis / Version: LC4.1E AA
Panel: LC171W03 (C4)
Lamp backlight: 6 Lamp CCFL
T-CON: 6870S-0172C
Inverter (backlight): integrated into PSU
PWM Inverter: UBA2070T
MOSFET Inverter: D5NM60
Power Supply (PSU): BL6L70P1 3122 133 32678
PWM Power: L6562D, TEA1533AT
MOSFET Power: 10NK60, 4NK80
MainBoard: 313912360191 3139 123 60191 v4 WK508.1
IC MainBoard: CPU: TDA15021H1 / N1C91; Scaler: GM5221H-LF
Tuner: UR1316S / A
Control: IR: 3139 123 58362 WK447.1
Specifications 17PF4310
PHILIPS 17PF4310
General recommendations for repairing TV LCD
Possible manifestations of defects
- The PHILIPS 17PF4310 TV does not turn on and does not show any signs of operability at all. There is no reaction to the remote control and control buttons from the front panel.
In some of these cases, the main switching power supply, the BL6L70P1 module, is faulty. It is necessary to measure its secondary output voltages, and if they are absent, check the power switches (10NK60, 4NK80) and rectifier diodes in the converters for a short circuit.
In case of breakdowns of semiconductors in the secondary circuits of any converter, as a rule, it can operate in emergency short-circuit mode without output voltages, and during short circuit in the elements of the primary circuit, the main fuse and, less often, the current sensor at the source of the key are most often cut off.
Mos-Fet power switches, used in switching power supplies, sometimes fail due to a malfunction of any other elements that can put it out of operation in key mode, or create an excess of the maximum permissible parameters of the switch. These can be elements supplying the PWM controller, frequency-setting or damping circuits, or negative feedback elements in the stabilization circuit. PWM controllers L6562D, TEA1533AT, in the absence of visible damage or obvious short-circuit between the terminals, are checked by replacing with new ones, or obviously working.
- There is no image, but there is sound and reaction to the remote control. Or for a second, the image may appear immediately after switching on.
The defect can be caused by problems in the nodes or elements of the backlight of the display, or in the power supply of the lamps or the inverter. If all the electrolytic capacitors of the filter for the power supply of the inverter are working, you should make sure the lamps are working, then you need to check the converter keys and the secondary windings of the transformers.
If in diagnosing a malfunction, it is necessary to disable the inverter protection, there is a risk of failure of the power elements of the inverter, and special care is required during work, and after they are finished, it is necessary to restore the protection circuits for further safe operation of the TV by the owner in normal mode.
- The indicator on the front panel blinks, the TV does not turn on in the operating mode, it does not respond to the remote control.
Repair or diagnostics of the motherboard 313912360191 should begin by checking the stabilizers and power converters needed to power the microcircuit and matrix. If necessary, update or replace the software (software). Sometimes they require checking or replacing (if necessary) the elements of the MainBoard - CPU board: TDA15021H1 / N1C91; Scaler: GM5221H-LF. In cases where the BGA processor is used, its malfunction is usually detected by the local heating method.
If a tuner UR1316S / A is suspected of malfunction, first of all, it is necessary to verify the correctness of the software, as well as the presence of the required voltage levels and data exchange pulses with the processor via the I2C bus on the corresponding tuner pins.
Attention TV owners! Attempts at self-repair of PHILIPS 17PF4310 are not recommended by the manufacturer and can lead to serious negative consequences!


Service manual and schematic diagram ---------------> PHILIPS 17PF4310 Chassis LC4.1E AA

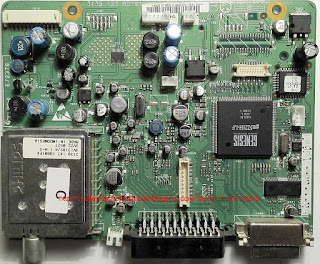

 The appearance of MainBoard 313912360191 is shown in the figure below:
313912360191
The appearance of the power supply
Main features of the PHILIPS 17PF4310 device:
Installed matrix (LCD panel) LC171W03 (C4).
The matrix control uses the Timing Controller (T-CON) 6870S-0172C.
To power the backlight, a converter is used, combined with a power supply, controlled by a UBA2070T PWM controller. As power elements of the inverter, keys of the D5NM60 type are used.
The necessary supply voltages for all nodes of the PHILIPS 17PF4310 TV are generated by the BL6L70P1 power supply module or its analogs using L6562D, TEA1533AT microchips and 10NK60, 4NK80 type power switches.
MainBoard - the main board (motherboard) is a module 313912360191, using CPU chips: TDA15021H1 / N1C91; Scaler: GM5221H-LF and others.
The tuner UR1316S / A provides TV reception and channel tuning.
Additional technical information about the panel:
Brand: LG.Philips LCD
Model: LC171W03-A4KG
Type: a-Si TFT-LCD, Panel
Diagonal size: 17.1 inch
Resolution: 1280x768, WXGA
Display Mode: Transmissive
Active Area: 372.48x223.488 mm
Display Colors: 16.7M
Frequency: 60Hz
Lamp Type: 6 pcs CCFL
Signal Interface: LVDS (1 ch, 8-bit)
