Technical description and composition of the PHILIPS 46PFL5537T TV, panel type and applicable modules. The composition of the modules.PHILIPS LED
Model: 46PFL5537T / 60
Chassis / Version: Q552.4E LA
Panel: LTA460HW04
LED backlight: LJ64-03471A LJ07-00998A = SLED 2012SGS46 7030L 64 REV1.0
T-CON: H_120PSQBC4LV1.0
LED driver (backlight): integrated into PSU
PWM LED driver: DDA009
Power Supply (PSU): DPS-130PP A, 2950298203
PWM Power: DDA010 (Standby), S101 (6), 1608B (PFC), 2QS02G, G1213
MainBoard: WK1147.5 31392913562 6066515 313912365303V2 MB-65313v2 SB
IC MainBoard: TAS5731, SPARTAN-6, RT8293AH (8pin)
Tuner: SUT-RE214AN
Control: Wi-Fi: WUBA-618GN173WW 2822 065 02609 (WUBA-618GN_V02 5500R)
Specifications 46PFL5537T
PHILIPS 46PFL5537T
General repair guidelines for TV LCD LED
Possible manifestations of defects
- PHILIPS 46PFL5537T does not turn on at all and does not show any signs of operability. Does not blink indicators and does not respond to control buttons.
With such manifestations, the DPS-130PP power supply module usually fails. It is necessary to verify the presence of secondary voltages and, if they are absent, check the power switches and rectifier diodes for a probable short circuit.
In case of avalanche and thermal breakdowns of diodes in the secondary circuits, the converter can operate in emergency short circuit mode, and in case of short circuit in the power elements of the primary circuit, a mains fuse or a current sensor at the source of the key usually breaks.
The breakdown of Mos-Fet keys used in pulsed sources is often caused by malfunctions of other elements, for example, power supply, frequency-setting, damper ... as well as elements of the Negative Stabilization Feedback. PWM chip DDA010 (Standby), S101 (6), 1608B (PFC), 2QS02G, G1213 can also cause a malfunction of the power switch of the converter and is checked by replacement.
- There is no image, but there is sound and reaction to commands from the remote control. Or the image appears immediately after turning on and disappears.
A malfunction is usually most likely in these cases at the backlight nodes of the display matrix. The reason can be both in the power supply of the LEDs, in their serviceability (breakdown or breakage), as well as in the violation of the contact connections of the LED strips.
To check the health in the LED circuit, it is better to use a current source with a maximum voltage of 200V. We do not recommend using any voltage sources for this purpose. You can test each LED individually with a simple Chinese multimeter (powered by 9 volts) in the P-N-junction test mode. If you connect the red probe of the multimeter to the anode of the LED, and the black to its cathode, then the 3-volt LED will light up slightly, and in the opposite direction you can detect the transition of the emergency zener diode. A zener diode PN junction indirectly indicates a LED-a
- The TV does not turn on, does not respond to the remote control. The indicator blinks or signals standby mode.
Repair or diagnostics of the motherboard 313929713562 should begin by checking the stabilizers and power converters needed to power the microcircuit and matrix. If necessary, update or replace the software (software). Board repair and replacement of TAS5731, SPARTAN-6, RT8293AH (8pin) microcircuits are carried out with the necessary equipment, and the corresponding element base. Faults associated with the application of BGA processor soldering technologies can be localized by the heating method.
If the TV works normally with external devices, but does not tune into television channels, the tuner SUT-RE214AN may be malfunctioning. In such cases, first of all, you should make sure that there are supply voltages at its corresponding conclusions. It is also necessary to make sure that the tuner and processor can exchange data via the I2C bus. Sometimes the cause of the inoperability of the tuner may be a software failure.
We recommend the owners of the 46PFL5537T TV for repair only to qualified specialists with the necessary work experience! Self-repair attempts without the appropriate knowledge and skills can lead to irreversible negative consequences!
Service manual and schematic diagram 46PFL5537T/60 Chassis Q552.4E LA
The appearance of MainBoard 313929713562 is shown in the figure below:313929713562
313929713562 can be used in TVs:
PHILIPS 40PFL5507T/60 (Panel LTA400HV04 001 code 396 p/n: 932229092682 ), PHILIPS 40PFL5527T/60 (Panel LTA400HV04 001 code 396 p/n: 932229092682), PHILIPS 46PFL5537T/60 (Panel LTA460HW04).

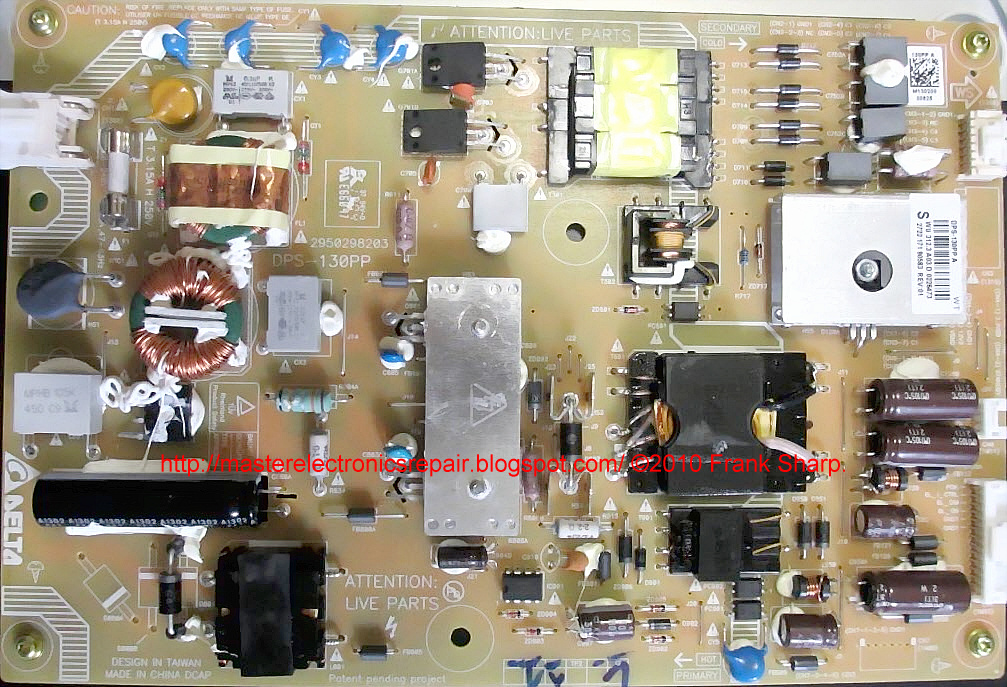

The appearance of the power supply
Main features of the PHILIPS 46PFL5537T device:
Installed matrix (LED-panel) LTA460HW04.
The matrix control uses the Timing Controller (T-CON) H_120PSQBC4LV1.0.
To power the backlight LEDs, a converter is used, combined with a power supply unit, controlled by the DDA009 PWM controller.
The necessary supply voltages for all nodes of the PHILIPS 46PFL5537T TV are generated by the DPS-130PP power module or its analogs using DDA010 (Standby), S101 (6), 1608B (PFC), 2QS02G, G1213 microcircuits.
MainBoard - the main board (motherboard) is a WK1147.5 module, using TAS5731, SPARTAN-6, RT8293AH (8pin) chips and others.
The SUT-RE214AN tuner provides TV reception and channel tuning.
Additional technical information about the panel:
Brand: SAMSUNG
Model: LTA460HW04-001
Type: a-Si TFT-LCD, Panel
Diagonal size: 46 inch
Resolution: 1920x1080, FHD
Display Mode: SPVA, Normally Black, Transmissive
Active Area: 1018.08x572.67 mm
Display Colors: 1.07B (10-bit)
Frequency: 120Hz
Lamp Type: WLED Embedded (LED Driver)
Signal Interface: LVDS (4 ch, 10-bit)
