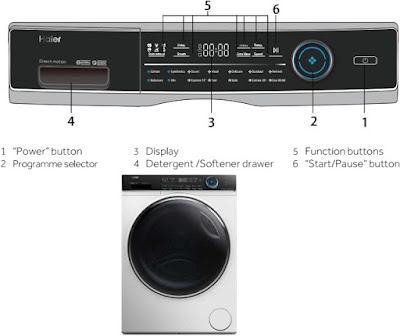

HAIER HW80-B14979, HW100-B14979, HW120-B14979 FRONT LOAD WASHING MACHINE TROUBLESHOOTING ERROR CODES AND DETAILS



  Always respect voltages. While some may not be dangerous in themselves, they can cause unexpected reactions that are best avoided. Before reaching into a powered TV set, it is best to test the high voltage insulation. It is easy to do, and is a good service precaution.

When servicing, observe the original lead dress. If a short circuit is found, replace all parts which are overheated or damaged by the short circuit. After servicing ,see to it that all the protective devices such as  insulation barriers ,insulation papers shields are properly installed .Confirm that the screws, parts and wiring which were removed in order to service are put in the original positions, or whether there are the portions which are deteriorated around the service places serviced or not. And be sure safety of that.

Child lock
Choosing a program and then start, touch button“ Speed “and ”Start/Pause ” for 3 seconds simultaneously to block all panel elements against activation, panel display .For unlocking please Touch again the two buttons. The child lock indicator lights up when the child lock works. Feature is optional when the machine is running.
The display shows [clot] if a button will be pressed, when the child lock is activated. The change is not running.

Wiring

1. Before the failure diagnosis, watch out for the electric shock and make sure that the power plug is disconnected and then service.
2. After the power switches on, each load will automatically load voltage 220-240V or DC.
3. Before touching the PCB, please touch the earthling wire at first to avoid that the PCB is broken by the static.
4. Exposed terminals, PC board, and rotating parts may cause injury and/or electrical shock. To reduce the risk of electrical shock, disconnect power and allow 60 seconds for capacitors to discharge before servicing.

Self check: Water distribution test

1.Press the “power” button, and the machine can be lighted upturn the knob to select the “Cotton” program, then touch the “Steam” and “Speed” button at the same times more than 2s, it will enter the self test mode, ”8888” will be displayed.

2. Touch “Extra rinse” button the first time, it can check the correct model according to the model name, When the door switch is closed , the model will be displayed. Otherwise“ E2” will be displayed.
3. Touch “Extra rinse” button the second times, then the program version will be display, such a this version may be changed when the machine update.
4. Touch “Extra rinse” button the third times, it will check water level and temperature, if there have problems, the "FA"or"F3" will be displayed, otherwise it will display "9999 ". After 2 seconds, the main valve allows the water let in, "7777 "will be displayed.
5. Touch “Extra rinse” button the forth times, "6666" will be displayed. Water will be
6. Touch “Extra rinse” button the fifth times, the spray valve allows water let in, and "5555"will be displayed.
7. Touch “Extra rinse” button the sixth times, "4444"will be displayed,

8.Touch “Extra rinse” button the seventh times, "End “will be displayed touch the "Delay" button, return back to self check program

9. Press "Temp" button, the washing machine will run at a specific speed, and start to heat ,the temperature will be displayed, if the water level is lower than 20mm, E4 will be displayed.

Check the motor can run .
Check the water temperature can change, it will be displayed at the same time. if he temperature sensor fault,"F3" will be displayed.
Touch the "Delay" button, return back to self test mode.
10. Touch "Speed "to enter the noise detection program. The machine will run at a speed of 1000rpm, check the noise. Touch the "Delay" button, return back to self test mode.

Model selection
1. Water distribution test
2. Touch “Extra rinse” button the first time, it can check the correct model according to the model name, When the door switch is closed , the model will be displayed. Otherwise“ E2” will be displayed.
3. Touch “Extra rinse” button the second times, then the program version will be display, such a this version may be changed when the machine update.
4. Touch “Extra rinse” button the third times, it will check water level and temperature, if there have problems, the "FA"or"F3" will be displayed, otherwise it will display "9999 ". After 2 seconds, the main valve allows the water let in, "7777 "will be displayed.
5. Touch “Extra rinse” button the forth times, "6666" will be displayed. Water will be
6.Touch “Extra rinse” button the fifth times, the spray valve allows water let in, and "5555"will be displayed.
7. Touch “Extra rinse” button the sixth times, "4444"will be displayed,
8.Touch “Extra rinse” button the seventh times, "End “will be
9. Press "Temp" button, the washing machine will run at a specific speed, and start to heat ,the temperature will be displayed, if the water level is lower than 20mm, E4 will be displayed.  displayed touch the "Delay" button, return back to self check program
9-2. Maintain and Self check
9-2-1. Caution in maintenance
1.Before the failure diagnosis, watch out for the electric shock and make sure that the power plug is disconnected and then service.
2. After the power switches on, each load will automatically load voltage 220-240V or DC.
3. Before touching the PCB, please touch the earthling wire at first to avoid that the PCB is broken by the static.
4. Exposed terminals, PC board, and rotating parts may cause injury and/or electrical shock. To reduce the risk of electrical shock, disconnect power and allow 60 seconds for capacitors to discharge before servicing.
Check the motor can run .
Check the water temperature can change, it will be displayed at the same time. if he temperature sensor fault,"F3" will be displayed.
Touch the "Delay" button, return back to self test mode.
10. Touch "Speed "to enter the noise detection program. The machine will run at a speed of 1000rpm, check the noise.
Touch the "Delay" button, return back to self test mode.
When the display board (on the control panel) is replaced technician need to select the correct mode l according with the model name on the washing machine.
Turn off the machine ,hold on the power button then touch the “Speed ” about 3 senconds, we can enter the model select and turn the knob, E80 0 will be displayed ,then touch "Star t /Pause”, If the storage is successful, the screen will display "PASS" otherwise and "FAIL" will l continue to display. let in on the softer box
Please power off.
For model HW80-B14979 ,we can choose E800
For model HW100-B14979 ,we can choose EA00
For model HW120-B14979 ,we can choose EC00

Troubleshooting without display code



 It makes sense to avoid exposure to electrical shock.  While some sources are expected to have a possible dangerous impact, others of quite high potential are of limited current and are sometimes held in less regard.

Error message: CLR FLTR:  Drainage error, water not emptied within 4 minutes


Error message E2:  the door lock not closed.


Error message F3:  the temperature sensor is no properly connected or damaged


Error message F4:  the heater may be broken


Error message E4: The required water level is not reached within 8 min.


Error message F7: motor is not rotated.


Error message FA:  water sensor is abnormal.

Error message FC0:  PCB Abnormal phenomena

Error message FC1:  Connecting issue between control board and driven boards.

Error message FC2:  Connecting issue between control board and power boards.

Error message Fb:  water overflow.

Troubleshooting

No display.  No water inletting.

No draining.  Abnormal noise and vibration.

Water leaking.
