Model name: 65OLED804/78
Platform: MTK5599
Service Alignment Mode (SAM).
SAM and the Factory mode offer features,
which can be used by the Service engineer to repair/align a TV set. Some
features are:
Make alignments (e.g. White Tone),
reset the error buffer(SAM and Factory Mode).
Display information (“SAM” indication
in upper right corner of screen, error buffer, software version, operating hours,
options and option codes, sub-menus)
How
to Activate SAM
To activate SAM, use one of the following methods:
Press the following key sequence on the remote control transmitter: “062596”, directly
followed by the “INFO/OK” button. Do not allow the display to time out between entries while
keying the sequence.
Or via ComPair.
After entering SAM, the following items are displayed, with “SAM” in the upper
right corner of the screen to indicate that the television is in Service
Alignment Mode.
How
to Navigate
In the SAM menu, select menu items with the UP/DOWN keys on the
remote control transmitter. The selected item will be indicated. When not all
menu items fit on the screen, use the UP/DOWN keys to display the
next/previous menu items.
With the “LEFT/RIGHT” keys, it is possible to:
– (De) activate the selected menu item.
– (De) activate the selected sub menu.
– Change the value of the selected menu
item.
When you press the MENU button once
while in top level SAM, the set will switch to the normal user menu (with the
SAM mode still active in the background).
How
to Store SAM Settings
To store the settings changed in SAM mode (except the RGB Align
settings), leave the top level SAM menu by using the POWER button on the remote
control transmitter or the television set. The mentioned exceptions must be
stored separately via the STORE button.
How to Exit SAM
Use one of the following methods:
Switch the set to STANDBY by pressing the mains button on the remote control
transmitter or the television set.
Via a standard RC-transmitter, key in “00” sequence.
Note: When the TV is switched “off” by a power interrupt while in SAM,
the TV will show up in “normal operation mode” as soon as the power is supplied
again. The error buffer will not be cleared.
Remark: Under main menu “NVM editor”, you can use the UP/DOWN keys to view and change the set Type number, the set Production Number or the 18AC of a part.(The NVM-editor still has the same function as before, alpha-numeric entry.)
Factory mode
How
to Activate the Factory mode
To activate the Factory mode, use the following method:
Press the following key sequence on the remote control transmitter: from the “menu/home” press “1999”, directly
followed by the “Back/Return” button. Do not allow the
display to time out between entries while keying the sequence.
After entering the Factory mode, we can see many items displayed, use the UP/DOWN keys to display
the next/previous menu items
How to Exit the Factory mode
Select EXIT_FACTORY from the menu and press the “OK” button.
Note: When the TV is switched “off” by a power interrupt, or normal
switch to “stand-by” while in the factory mode, the TV will show up in “normal operation
mode” as soon as the power is supplied again. The error buffer will not be
cleared.
Customer Service Mode
(CSM)
The Customer Service Mode shows error codes and information on the
TVs operation settings.The call centre can instruct the customer (by telephone)
to enter CSM in order to identify the status of the set.This helps the call
centre to diagnose problems and failures in the TV set before making a service
call.
The CSM is a read-only mode; therefore, modifications are not possible in this
mode.
How
to Activate CSM
To activate CSM, press the following key sequence on a standard
remote control transmitter: “123654” (do not allow the display
to time out between entries while keying the sequence). After entering the
Customer Service Mode, the following items are displayed. use the Right/Left keys to display
the next/previous menu items
Note: Activation of the CSM is only possible if there is no (user) menu
on the screen!
How to Navigate
By means of the “CURSOR-DOWN/UP” knob (or the scroll wheel) on the
RC-transmitter, can be navigated through the menus.
How
to Exit CSM
To exit CSM, use one of the following methods.
Press the MENU/HOME button on the remote control transmitter.
Press the POWER button on the remote control transmitter.
Press the POWER button on the television set.
Software Upgrading,
Error code and Panel Code
Software Upgrading
The following update is for .pkg file.
1.
Rename the file to “upgrade_loader.pkg”.
2. Prepare a USB memory (File format: FLAT, Size: 1G~8G).
3. Copy the software to USB flash disk (root directory).
4. Switch off the TV and Insert the USB memory stick that contains the software
update files in one of the TV’s USB 2.0 port.
Note: It contains USB3.0 port, if connect on it, the software may can’t be
detected.
5. Switch on the TV. The TV will detect the USB memory s tick automatically.
6. When the TV software is
updated, the TV will turn on again automatically. Remove your USB flash drive.
7. We can enter in CSM or Factory mode to check the current software version.
The
following update is for .upg file.
Ready for F/W Upgrade
1.
Rename the file to “autorun.upg”.
2. Prepare a USB memory (File format: FLAT, Size: 1G~8G).
3. Copy the software to USB flash disk (root directory).
4. Switch on the TV and Insert the USB memory stick that contains the software
update files in one of the TV’s USB 2.0 port.
Note the version of this F/W before you change the software file name
F/W Upgrade
1.
Press [Settings], then Choose [Search for update] in the Settings menu
2. Choose [USB], then press OK
3. Choose [Identify], then press OK.
4. .Select the file that you downloaded and press OK
5. Identify the software and choose [Done], then choose [Start] on following step
6.Choose [Update] press OK start the software update.
6. Upgrade in progress
Check the SW version
1.
After burning software, TV will restart
2. Press “123654”, enter
Customer Service Mode to check if the software version is correct.
Caution: Please make sure that software upgrade is finished before unplug the
USB and AC power.
Error Code
Error codes are required to indicate failures
in the TV set. In principle a unique error code is available for every:
• Activated (SW) protection.
• Failing I2C device.
• General I2C error.
The last five errors,
stored in the NVM, are shown in the Service menu’s. This is called the error
buffer.
The error code buffer contains all errors detected since the last time the
buffer was erased. The buffer is written from left to right. When an error
occurs that
is not yet in the error code buffer, it is displayed at the left side and all
other errors shift one position to the right.
An error will be added to the buffer if this error differs from any error in
the buffer. The last found error is displayed on the left.
An error with a designated error code never leads to a deadlock situation. It
must always be diagnosable (e.g. error buffer via OSD or blinking LED).
In case a failure identified by an error code automatically results in other
error codes (cause and effect), only the error code of the MAIN failure is
displayed.
How
to Read the Error Buffer
You
can read the error buffer in following ways:
• On screen via the SAM/CSM (if you have a picture).
Example:
– ERROR: 000 000 000 000 000: No errors detected
– ERROR: 013 000 000 000 000: Error code 13 is the last and only
detected error
– ERROR: 034 013 000 000 000: Error code 13 was detected first and error
code 34 is the last detected (newest) error
• Via the blinking LED procedure (when you have no picture).
Error codes overview
In this chassis only “layer 2” error codes are available and point to
problems on the SSB. They are triggered by LED blinking when CSM is activated.
Only the following layer 2 errors are defined:
How to Clear the Error
Buffer
The
error code buffer is cleared in the following cases:
• By using the CLEAR command in the SAM menu
• By using the CLEAR command in the Factory mode:
• By using the following key sequence on the remote control transmitter: “062599” directly followed by the OK button.
• If the contents of the error buffer have not changed for 50 hours, the error
buffer resets automatically.
Note: If you exit SAM by disconnecting the mains from the television set, the
error buffer is not reset.
Power tree

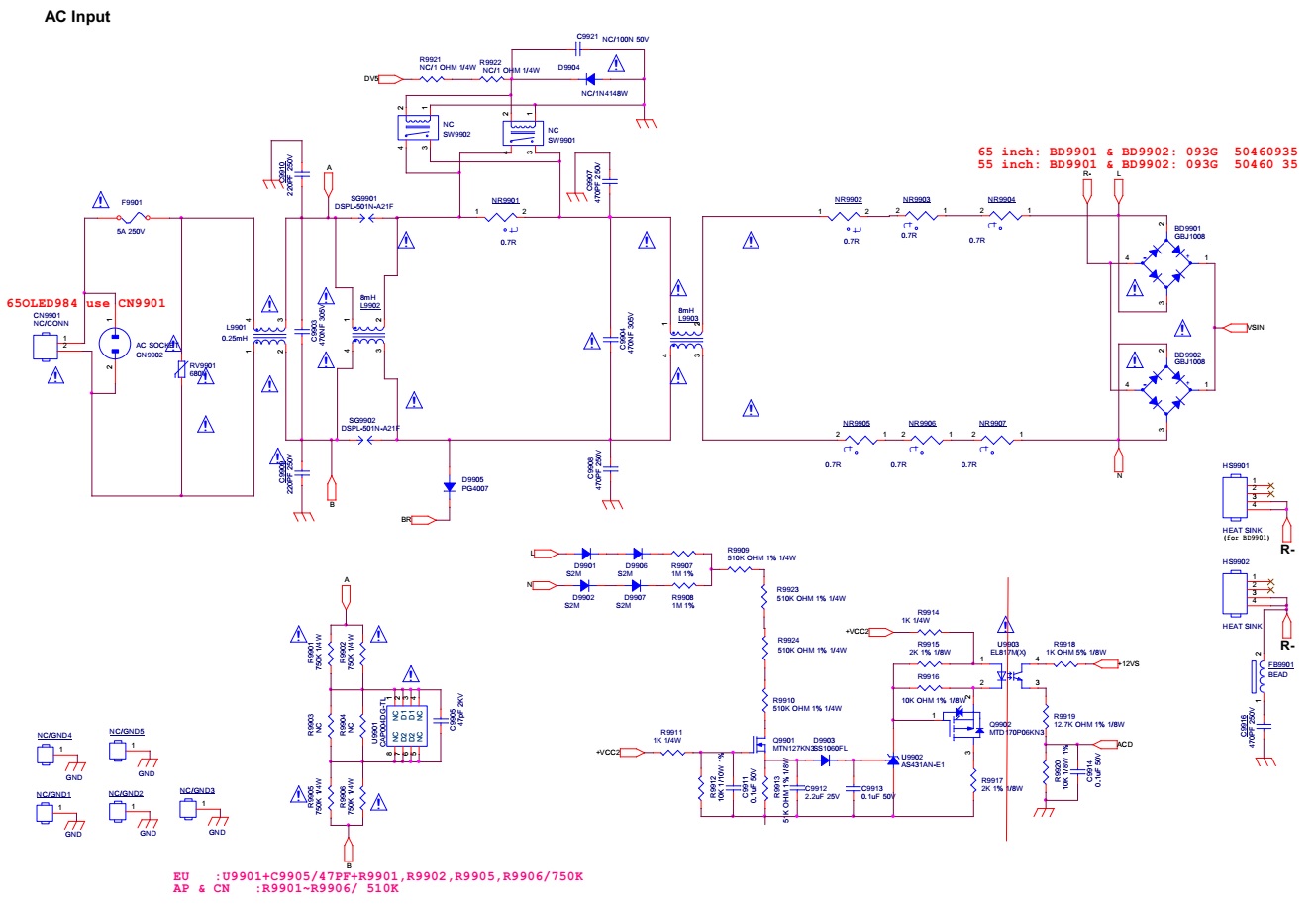

A 715G9892 PSU circuit diagram (schematic)
