Friday, 29 March 2019

HARMAN KARDON HKTS200 - HKTS210 TROUBLESHOOTING - CIRCUIT DIAGRAM

harman kardon HKTS200 - HKTS210 Troubleshooting - Circuit Diagram

Schematic Diagram_General troubleshooting_Specifications_harman/kardon HKTS 200/230 SUB
HKTS 210/230 SUB - Active sub-woofers
No sound from any of the speakers:
• Check that the receiver/amplifier is on and a source is playing.
• Make sure that all wires and connections between the receiver/amplifier and the speakers are connected properly.
• Make sure none of the speaker wires is frayed, cut or punctured.
• Review the proper operation of your receiver/amplifier.
No sound coming from one speaker
• Check that the balance control on your receiver/amplifier is not set all the way to one channel.
• Check your receiver/amplifier’s speaker setup procedure to make sure that he speaker in question has been enabled and its volume level has not been turned all the way down.
• Make sure that all wires and connections between the receiver/amplifier and the speaker are connected properly.
• Make sure the speaker wires are not frayed, cut or punctured.
No sound coming from the center speaker
• Check your receiver/amplifier’s speaker setup procedure to make sure that the center speaker has been enabled and its volume level has not been turned all the way down.
• Make sure that all wires and connections between the receiver/amplifier and the center speaker are connected properly.
• Make sure the speaker wires are not frayed, cut or punctured. • If your receiver is operating in Dolby® Pro logic® mode, make sure that the center speaker is not set to Phantom.
Specifications
HKTS 60BQ/230 System
Frequency Response 45Hz – 20kHz (-6dB)
SAT-TS60 Satellites
Recommended Power 20 ~ 150 watts
Impedance 8 ohms nominal
Sensitivity 83dB @ 2.83v/1 meter
Tweeter One 1" (25mm) CMMD lite dome, video-shielded
Midrange Dual 3" (75mm) flat-diaphragm drivers, video-shielded
Dimensions – including stands
(H x W x D)
299mm x 110mm x 88mm
(11-25/32" x 4-11/32"x 3-15/32")
Weight 1.5 kg (3.4 lb)
CEN-TS60
Recommended Power 20 ~ 150 watts
Impedance 8 ohms nominal
Sensitivity 83dB @ 2.83v/1 meter
Tweeter One 1" (25mm) CMMD lite dome, video-shielded
Midrange Dual 3" (75mm) flat-diaphragm drivers, video-shielded
Dimensions (H x W x D) 110mm x 272mm x 88mm
(4-11/32" x 10-11/32" x 3-15/32" )
Weight 1.5kg (3.3 lb)
HKTS 210SUB Subwoofer
Power requirement AC 100–120v, 50/60 Hz, 200W (USA)
AC 220–240v, 50/60 Hz, 200W (eU)
Amplifier Power 200 watts RMS
Woofer 8" (200mm) woofer, sealed enclosure
external Trigger Input voltage 3 ~ 30 volts AC/DC
Dimensions (H x W x D) 353mm x 267mm x 267mm
(13-29/32" x 10-1/2" x 10-1/2")
Weight 9.0 kg (19.8 lb)

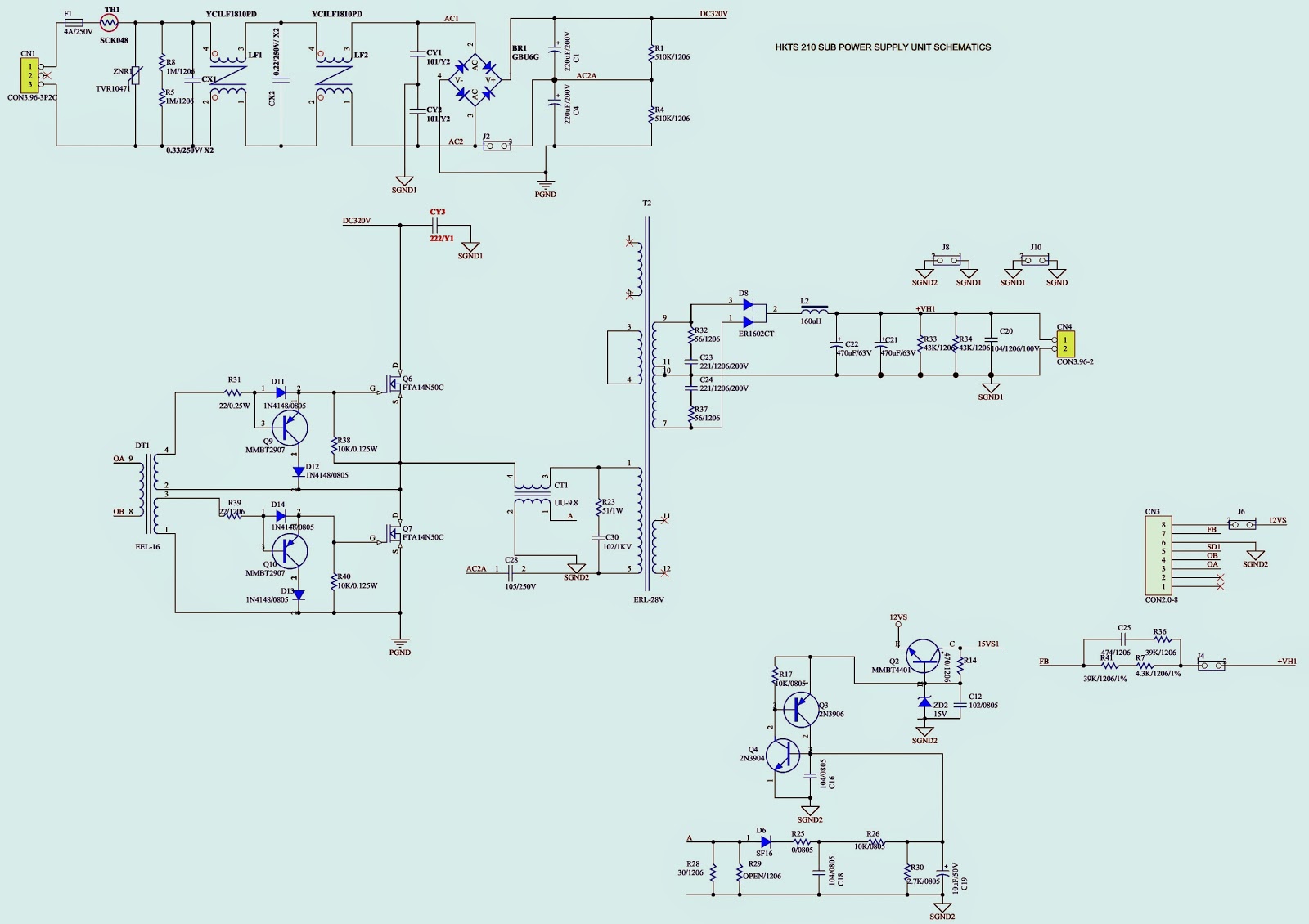

SCHEMATIC DIAGRAMS
