LG 32LC41 - 32LC42 - 32LC43 - 32LC44 - S/W PROGRAM DOWNLOAD METHOD



LG 32LC41 - 32LC42 - 32LC43 - 32LC44 - S/W PROGRAM DOWNLOAD METHOD - 1




                   Download method 1 (PCB Ass’y)

  • Connect the download jig to D-sub jack

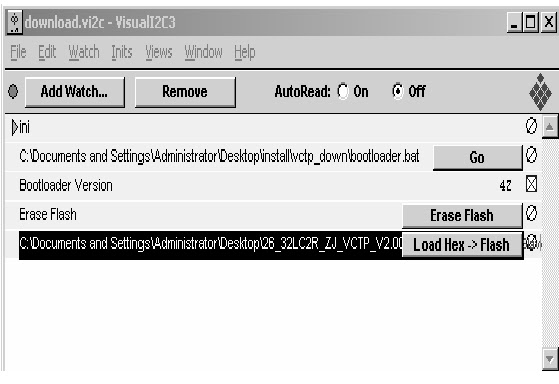

  • Execute ‘Download.vi2c’ program in PC, then a main window will be opened.
  • Double click the blue box and confirm "Bootloader Version" as 42.
  • Click the "Erase Flash" button
  • Double click the download file low, then "edit" window will be opened.



  • Click the choice button in the “edit window”, then “file choice window” will be opened.
  • Choose the Hex file in folder and execute downloading with click " open" button.

  • Click OK button at the "edit window".
  • Under Downloading process
  • If download is failed, for example "No acknowledge from slave". Execute download again from(1).

LG 32LC41 - 32LC42 - 32LC43 - 32LC44 - S/W PROGRAM DOWNLOAD METHOD - 2



DOWNLOAD METHOD - 2
  • Download method 2 (AV Plate Ass’y)
  • Push S/W ‘ON" (connect SCL to GND using switch at Jig) and connect the download jig to D-sub jack.
  • Supply the power (Stand-by 5V) and wait for 3 seconds.
  • Push the S/W off (Disconnect SCL to GND using switch at jig).
  • Execute ‘Download.vi2c’ program in PC, then a main widow will be opened.
  • Double click the blue box and confirm "Bootloader Version" as 42.
  • Click the "Erase Flash" button.
  • Double click the download file low then, "edit" window will be opened.


  • Click the choice button I n the "edit window", then "file choice window’ will be opened.
  • Choose the Hex file in folder and execute downloading with click "open button".
  • Click OK button at the "edit window"
  • Under Downloading progress

  • If download is failed, for example "No acknowledge from slave", execute download again from (1).



LG 32LC41 - 32LC42 - 32LC43 - 32LC44 - S/W PROGRAM DOWNLOAD METHOD - 3




SOFTWARE DOWNLOAD METHOD
Download method 3 (SET)
  • Push the “Tilt” button in an Adjust Remote control Then the LCD TV will change a “slave mode”.
  • Connect Zig to TV using a D-sub cable.
  • Execute ‘Download_CS.vi2c’ program in PC, then a main widow will be opened.
  • Click "GO" button. { If you don’t push the “go”, the Hex file would not be downloaded although the download proceeds normally at first glance.}
  • Double click the blue box and confirm "Bootloader Version" as 42.
  • Click the "Erase Flash" button.
  • Double click the download file low then, "edit" window will be opened.

  • Click the choice button I n the "edit window", then "file choice window’ will be opened.
  • Choose the Hex file in folder and execute downloading with click "open button"
  • Click OK button at the "edit window"
  • Downloading.
  • If download is failed, for example "No acknowledge from slave", execute download again from (1).
