CX-BK7 Aiwa DVD DECK RECEIVER How to assemble the mechanism
HOW TO INSTALL THE CAM (EJECT LOCK)
Rotate the cam (BU U/D)
fully in the direction of arrow.
2 Engage the gear (eject lock) and the gear of the cam (eject lock) aligning the mark with the center of the gear (eject lock)
2 Engage the gear (eject lock) and the gear of the cam (eject lock) aligning the mark with the center of the gear (eject lock)
HOW TO INSTALL THE CAM (GEAR)
Check that the cam (BU
U/D) can not be rotated in the direction of arrow.
2 Align the mark on the cam (gear) with the boss as shown in the figure and install the cam (gear).
2 Align the mark on the cam (gear) with the boss as shown in the figure and install the cam (gear).
HOW TO INSTALL THE GEAR (MODE 2)
1 Align the mark on the
rotary encoder (S701) with the projection of the assy.
2 Check that the cam (BU U/D) can not be rotated in the direction of arrow.
3 Install the gear (mode 2
3 Install the gear (mode 2
HOW TO INSTALL THE GEAR (MODE CAM)
1 Slide the shaft in the
direction of arrow.
2 Align mark A on the gear (mode cam) with mark B on the slider (mode cam) assy, then install the gear (mode cam).
3 Check that mark C on the gear (mode cam) is in alignment with mark D on the cam (gear).
2 Align mark A on the gear (mode cam) with mark B on the slider (mode cam) assy, then install the gear (mode cam).
3 Check that mark C on the gear (mode cam) is in alignment with mark D on the cam (gear).
HOW TO INSTALL THE ROTARY ENCODER (S702), GEAR (STOCKER COMMUNICATION),
HOW TO INSTALL THE CAM (STOCKER U/D)
PHASE ADJUSTMENT BETWEEN PINIONS (SLIDER) AND SLIDER-1 TO 5 (L/R)
1 As shown in the
following figure, adjust the portion A of each slider to the boss with the slider-1
to 5 (L) and the slider-1 to 5 (R) pushed in the arrow directions respectively
(see Fig)
2 Paying attention to the
up/down direction of the pinion (slider) (see Fig. 2), install each pinion
(slider) so that the portion B of each pinion (slider) meshes with the portion
A of each slider (see Fig. 3).
Note: Push in the pinion (slider) until the claw of the boss comes out above the pinion (slider) to lock.
Note: Push in the pinion (slider) until the claw of the boss comes out above the pinion (slider) to lock.
How to disassemble the
optical pick-up mechanism: OPTICAL
PICK-UP SECTION (DVBU16V)
SW (1) BOARD, SW (2) BOARD, SW (3) BOARD, SW (4) BOARD, BRACKET (TOP)
ASSY and RELAY BOARD

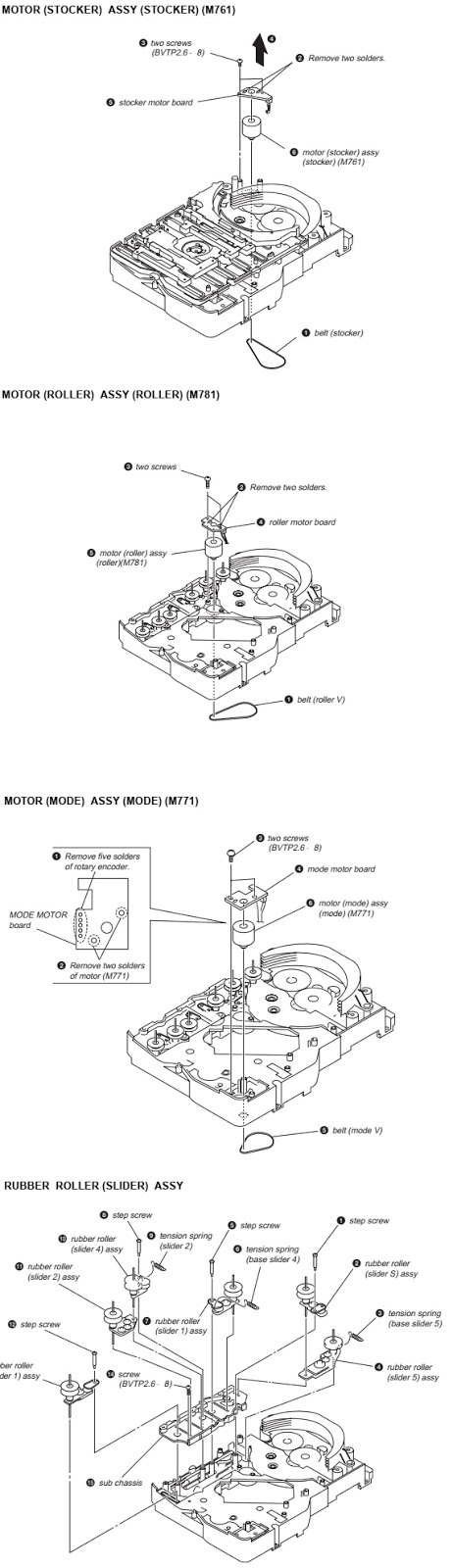

MOTOR (STOCKER) ASSY (STOCKER) (M761): MOTOR (ROLLER) ASSY (ROLLER)
(M781): MOTOR (MODE) ASSY (MODE) (M771)
TIMING BELT (FRONT/REAR): CAM
(GEAR): SENSOR BOARD
