Saturday, 9 February 2019

AKIRA - PLT 42TT _ PLASMA TV _ FACTORY ADJUSTMENTS _ MODULES LIST

FACTORY ADJUSTMENT
PANEL VOLTAGE ADJUSTMENT

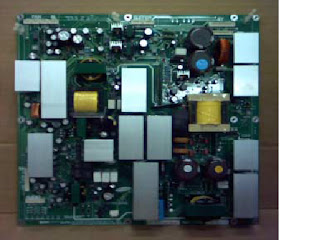

The power voltage should be adjusted and checked when changing the panel or power board.

DIGITAL BOARD CON01 SELECT TO "INT".
DIGITAL BOARD CON05 SELECT TO "EXT".
MAKE A SW CONEECT TO POWER BOARD CON80011 PIN 1 & PIN5 FOR POWER SWITCH.
FOLLOW THE PANEL LABEL VOLTAGE ADJUST VR.
VOLTAGE CHECK FROM "CHECK POINT" WITH GROUND.

ADJUST SEQUENCE

1th => 2th => 3th => 4th => 5^th

VA VSC VS VR VSET

VR8005 VR8006 VR8003 VR8001 VR8007

COLOR TEMPERATURE ADJUSTMENT

Push the factory service key to into the adjustment mode. The picture will appear as follow:

DVI 5400ºk

X=335 Y=343

GAIN Bias

RGB RGB

XXX XXX

Use the AV key to select the color to adjust and LEFTor RIGHT key to adjust the level. The required equipments are CA-100,Vp300.

a] Adjust Bias first to let the Y be 0.4 on CA-100. Adjust R or B to let the value of X,Y on CA-100 be the same as the value showing screen, The value of Y should be Maintained 0.4 during the adjusting.
b] Move the cursor to adjust Gain. The value of Y should be adjusted to 25. Then adjust R or B to let the value of X,Y on CA-100 be the same as the value showing on screen. The value of Y should be maintain 25 during the adjustment.
c] Repeat to check the Bias and Gain. The value of Y,X and Y should be the same as the previous adjusted value. Then the DVI 5400ºk mode is adjusted completely.

d] Push the factory service key again to next picture. Then repeat the steps a. b. c. to adjust.

e] If the adjustment is completed, repeat d. a. b. and c steps to adjust again.
f] When the last mode AV 13000ºk is adjusted completely, push the factory service key again to leave the adjustment mode,

Note:
