Saturday, 16 February 2019

MITSUBISHI LT3280D LT-3780D INITIAL SETUP - OPTION MENU SETUP LED BLINKING CODES

MITSUBISHI LT3280D LT-3780D INITIAL SETUP - OPTION MENU SETUP LED Blinking Codes

OPTION MENU SETUP
  1. Disconnect the HD-4001.
  2. Place the remote control on the 'TV' layer.
  3. Select 'Menu" display by pressing "TV-Menu" button Once.
  4. Press the number buttons [2,0,7,0] in sequence to select the "Option Menu".
  5. Press "Adjust Up | Dn" buttons to select "Initialize"
  6. Press "Enter".
==============================
Initialize
Power Restore:                 Off
Component Port:
Direct Key Mode:
Version - GM32: xxxx/xx/x-xx
Version H8S:xxxx/xx/x-xx
==============================
Protection circuit
  • LT-3280D & LT-3780D has two protection circuits and some fuses.  If the protection circuit work, the LED turns to Standby mode.  The protection operation can be confirmed by the blinking of Blue Power LED.  The content can be confirmed by the number of blinking within  one cycle.
Name
Number of blinks
Fault location
cause
Remark
Short 1
1
Power-sub 1 or panel
Excessive current on the 120V line.
Only LT-3780D

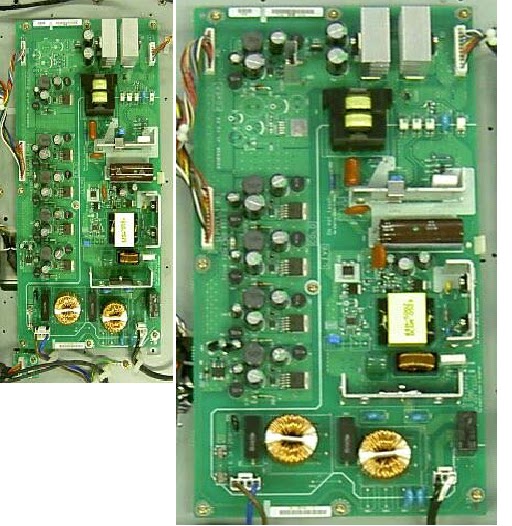

Power-sub 2 or panel
The 24V line on the Power-Sub2 is low.
Only LT-3280D
Short 2
2
Power or Main or Panel [Only 18V or P5V]
The voltage of any of the following output lines is low.

18v

P5V
AMPVCC ‘17V’
4.5V
A3.3V
D3.3V
AD3.3V
D2.5V
A1.8V
Check the fuses on Power Board {F9G2, F9G3, F9G5, F9G8}
FUSES

Part No
Rated value
PCB
Remark

F9A1
6.3A
POWER
AC LINE
F9G2
500mA

S8V line, S8V line for S5V
F9G3
1A

24V line for S8V and S5V
F9G4
500mA

24V line for S8V & S5V
F9G5
1.6A

24V line for AMP VCC.
F9G6
4A

24V line for 18V
F9G7
1A

24V line for P5V
F9G8
500mA

24V line for 4.5V
F910
1A

IC 920 is broken
