NOKIA - 6230 _ 6320B RH-12_RH-28 _ PHOENIX SERVICE SOFTWARE INSTALLATION PROCEDURE

NOKIA - 6230 _ 6320B RH-12_RH-28 _ PHOENIX SERVICE SOFTWARE INSTALLATION PROCEDURE







  • Check that dongle is attached to the parallel port of the computer.
  • Download the installation package (e.g. phoenix_service_sw_a12_2003_50_6_35.exe) to your computer (e.g. C:\TEMP).
  • Close all other programs.
  • Run the application file (e.g. phoenix_service_sw_a12_2003_50_6_35.exe) and follow instructions on the screen.

  1. Administrator rights may be required to be able to install Phoenix depending on the Operating System.
  2. If uninstalling or rebooting is needed at any point, you will be prompted by the Install Shield program.

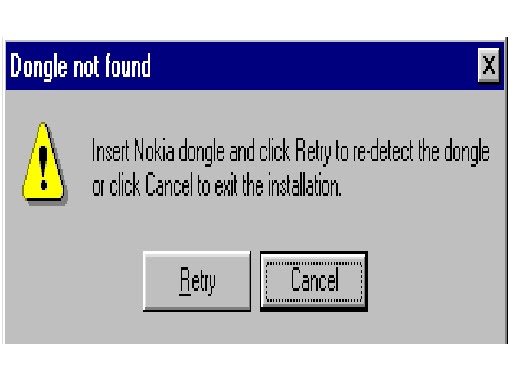

  3. If at any point during the installation you get this message, the dongle is not found and the installation can not continue.
  4. Possible reasons may be defective or too old PKD-1Dongle (five digit serial number dongle when used with FPS-8 Prommer) or that the FLS-4S POS Flash Dongle is defective or power to it is not supplied by external charger.
  5. First, check the COM /parallel ports used! After correcting the problem, the installation can be restarted.

INSTALLING PHOENIX

  • Run the phoenix_service_sw_a12_2003_50_6_35.exe to start the installation. Install Shield will prepare.

  • Click "Next" in Welcome dialog to continue.

  • Choose the destination folder, it is recommended to use the default folder C:\Program- Files\Nokia\Phoenix.
  • Choose “Next” to continue. You may choose another location by selecting “Browse” (not recommended).

  • Setup copies the components; progress of the setup is shown. Please wait.

  • Drivers will be installed and updated, please wait. The process may take several minutes to complete.

  • If the operating system does not require rebooting (Windows 2000, XP) the PC components are registered right away.

  • Click "Finish" to finalize. Phoenix is ready for use.

  • If the operating system used requires restarting your computer (Windows 98, SE, ME), the Install Shield Wizard will notify you about it. Select "Yes..." to reboot the PC immediately and "No..." to reboot the PC manually afterwards.

  • After the reboot components are registered and Phoenix is ready for use. Note that Phoenix doesn't work, if components are not registered.

Now the installation of Phoenix Service SW is ready and it can be used after :
  • installing Phone model specific Phone Data Package for Phoenix
  • configuring users and connections.


FLS-4S can be used right away.
FPS-8* can be used after updating Flash Update Package files to it.
