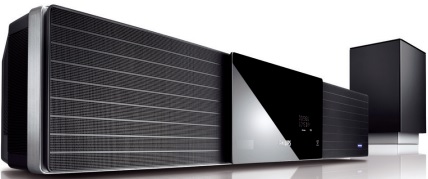

How to replace the loader - Philips HTS8100 DVD Home Theater System
L/R
output power : 1 x 70W min; 75W typical
Centre : 1 x 95W min; 100W typical
Surround : 1 x 70W min; 75W typical
Subwoofer : 1 x 95W min; 100W typical
Replacing
Defective Loader
The
following steps have to be done when replacing the defective loader
1. Dismantling
of the loader to access the ESD protection point if necessary.
2. Solder the ESD protection point*.
3. Disconnect flexfoil cable from the defective loader.
4. Put a paper clip on the flexfoil to short-circuit the contacts (fig.1)
5. Replace the defective loader with a new loader.
6. Remove paperclip from the flexfoil and connect it to the new loader.
7. Remove solder joint on the ESD protection point.
2. Solder the ESD protection point*.
3. Disconnect flexfoil cable from the defective loader.
4. Put a paper clip on the flexfoil to short-circuit the contacts (fig.1)
5. Replace the defective loader with a new loader.
6. Remove paperclip from the flexfoil and connect it to the new loader.
7. Remove solder joint on the ESD protection point.
ATTENTION:
The laser diode of this loader is protected against ESD by a solder joint which
short circuits the laserdiode to ground.
For proper functionality of the loader this solder joint must be removing after connection loader to the set.
For proper functionality of the loader this solder joint must be removing after connection loader to the set.

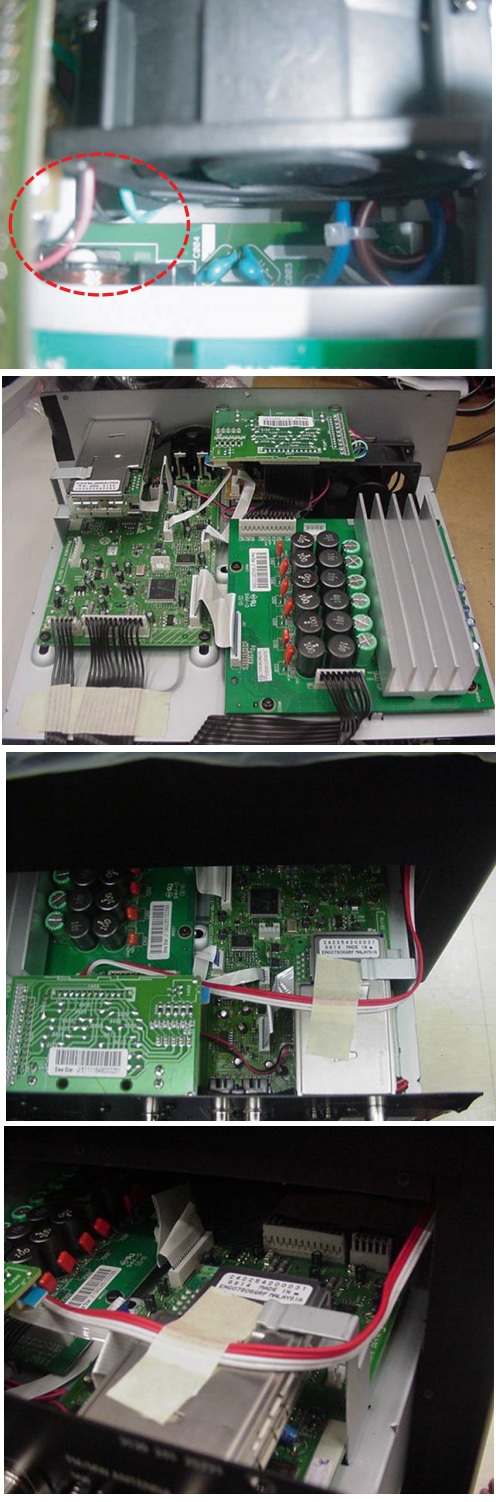

Power
Box Cable Dressing
1) For
the 5 and 12 poles cables to Audio BD, paste a tape over them, ensuring it is
firmly secured to the metal chassis.
2)
For the 8 pole cable between the PSU and TI amplifier, fold the cable as
indicated, making it as close possible to metal chassis.
3)
Fold as indicated underneath the metal chassis for both point 1) and 2). Note
that the cables underneath should be laid as close possible to the metal
chassis also.
4)
For the FFC cable between Audio BD and TI amplifier, fold as indicated, making
it sure that the cable should be outside of both boards.
5)
For the FFC cables from the Audio BD to Tuner/Speaker/AIO BD, fold as
indicated, hence, preventing them from touching the Audio BD itself.
6)
For the 9 pole cable linking from the Main Unit to the Power Box, tuck it
underneath the tuner and above the 4 pole cinch connector and also making it as
close as possible to the back metal plate.
Paste
a tape over the subwoofer cable on the Tuner as indicated. Secondly, the cable
should be outside of the Audio BD, along the edge of the metal chassis.
Exploded view
Click on the pictures to zoom in
