Monday, 30 December 2019

REPAIR / SERVICING TV SAMSUNG UE32H6400

Technical description and composition of the SAMSUNG UE32H6400 TV, panel type and applicable modules. The composition of the modules.
SAMSUNG
Model: UE32H6400 UE32H6400AK
Panel: CY-GN032CSLV2V
T-CON: T-CON BN41-02110
Inverter (backlight): integrated into PSU
PWM Inverter: PIC16F753, 7014X
MOSFET Inverter: MDD7N25, FDD6N25
Power Supply (PSU): BN44-00707A
PWM Power: SPC7011F, FA6A01
MOSFET Power: 10N60M2, KF7N50
MainBoard: BN41-02156A
IC MainBoard: BN40-00288A CPU: SEMS-31, SPI-FLASH: 25Q40, EEPROM: 24C512
Tuner: BN40-00288A
Technical Specifications UE32H6400
SAMSUNG UE32H6400
General repair guidelines for TV LCD
Possible malfunctions
- SAMSUNG UE32H6400 TV does not turn on, does not respond to the remote control and control panel buttons, indicators do not light up and do not blink.
With such manifestations, in some cases, the BN44-00707A power module is faulty. Then we recommend that you measure its output voltages and, if they are absent, you should check the health of the power switches (10N60M2, KF7N50) and rectifier diodes of the converters for possible short circuit.
In the event of breakdowns in the secondary circuits of the converter, it can usually fail in short circuit mode, and in the event of a short circuit in the power elements of the primary circuit, the mains fuse or current sensor at the source of the key most often breaks.
The breakdown of Mos-Fet keys used in pulsed sources is often caused by malfunctions of other elements, for example, in the power supply circuit of a PWM controller, in frequency-setting or damping circuits, as well as in Negative Stabilization Feedback. PWM microcircuits (PWM) SPC7011F, FA6A01 are usually checked by replacing with new ones, or obviously working.
- There is no image, but there is sound and reaction to the remote control. Or for a second, the image may appear immediately after switching on.
The defect can be caused by problems in the nodes or elements of the backlight of the display, or in the power supply of the lamps or the inverter.After checking all the electrolytic capacitors of the filters that are involved in the power supply of the inverter, you must ring in its converter power keys for breakdown and secondary windings of transformers for an open.
Sometimes, for diagnostic purposes, it is necessary to disable the inverter protection. In such cases, special care must be taken during work, and the protection circuits should be restored immediately after the repair is completed.
- The indicator on the front panel blinks, the TV does not turn on in the operating mode, it does not respond to the remote control.
Repair or diagnostics of the BN41-02156A motherboard should begin by checking the stabilizers and power converters needed to power the chips and matrix. If necessary, you should update or replace the software (software). In cases of attempts to repair the MB board (SSB), it is necessary to check the health of its elements - BN40-00288A CPU: SEMS-31, SPI-FLASH: 25Q40, EEPROM: 24C512 which may require replacement with new ones. If the BGA processor is installed, there is a possibility of a violation of the soldering of the contacts of its conclusions with the board (it is diagnosed by heating).
If a tuner BN40-00288A is suspected of malfunction, first of all, it is necessary to verify the correctness of the software, as well as the presence of the necessary supply voltage levels and data exchange pulses with the processor via the I2C bus at the corresponding tuner pins.
We recommend the owners of the UE32H6400 TV for repair only to qualified specialists with the necessary work experience! Attempts to repair it yourself without the appropriate knowledge and skills can lead to irreversible negative consequences!

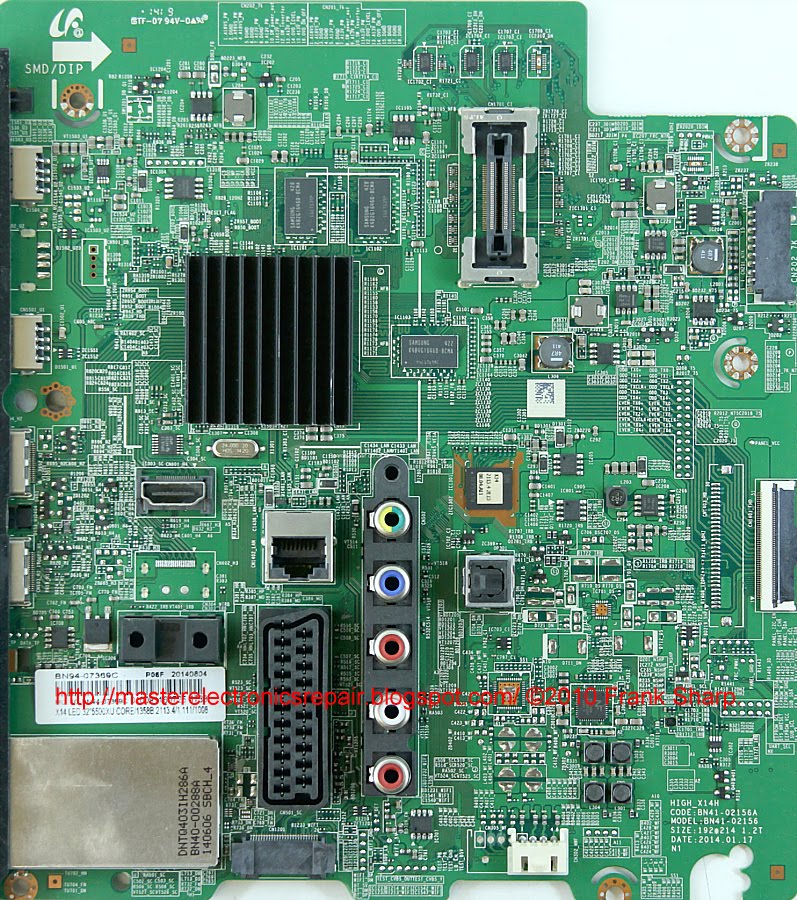

The appearance of the MainBoard BN41-02156A is shown in the figure below:
BN41-02156A
BN41-02156A can be used in TVs:
SAMSUNG UE40H6200 UE40H6200AK (Panel CY-GH040CSLV1V), SAMSUNG UE32H5500 UE32H5500AK (Panel GH032BGA-B2), SAMSUNG UE40H5500 UE40H5500AK (Panel CY-GH040BGLV2V), SAMSUNG UE32H6200AK (Panel CY-GH032CSLV1V), SAMSUNG UE40H6350 (Panel CY-GH040CSLV2V), SAMSUNG UE32H6410AU UE32H6410 (Panel CY-GH032CSLV4V), SAMSUNG UE40H6400AK UE40H6400 (Panel CY-SH040CSL V2H), SAMSUNG UE48H6200 UE48H6200AK (Panel CY-GH048CSLV1V), SAMSUNG UE48H6230AK UE48H6230 (Panel CY-GH048CSLV1V), SAMSUNG UE48H6400AK UE48H6400 (Panel CY-GH048CSLV2V), SAMSUNG UE48H6410AU UE48H6410 (Panel CY-GH048CSLV4V), SAMSUNG UE48H6240AK UE48H6240 (Panel CY-GH048CSLV1V), SAMSUNG UE32H4500AK UE32H4500 (Panel CY-HH032AGLV2V), SAMSUNG UE40H6410 UE40H6410AU (Panel CY-GH040CSLV4V), SAMSUNG UE40H6500 UE40H6500AT (Panel CY-GH040CSLV1V), SAMSUNG UE32H6230 UE32H6230AK (Panel T320HVF05.2), SAMSUNG UE32H4510 UE32H4510AK (Panel HH032AGH-R3 BN96-31086F), SAMSUNG UE32H6350 UE32H6350AK (Panel CY-GH032CSLV2V), SAMHUN62H3062G3062 CY3062CG6262 SLV1V).
The appearance of the power supply
Main features of the SAMSUNG UE32H6400 device:
Installed matrix (LCD panel) CY-GN032CSLV2V.
The matrix control uses the Timing Controller (T-CON) T-CON.
To power the backlight lamps, a converter is used, combined with a power supply unit, controlled by the PIC16F753, 7014X PWM controller. As power elements of the inverter, keys of the type MDD7N25, FDD6N25 are used.
The necessary supply voltages for all nodes of the SAMSUNG UE32H6400 TV are generated by the BN44-00707A power supply module or its analogs using SPC7011F, FA6A01 microcircuits and power switches of the 10N60M2, KF7N50 type.
MainBoard - the main board (motherboard) is a BN41-02156A module, using BN40-00288A CPU chips: SEMS-31, SPI-FLASH: 25Q40, EEPROM: 24C512 and others.
The tuner BN40-00288A provides the reception of television programs and tuning to channels.
