SONY KDL-22EX320_KDL-24EX320_KDL-26EX320_Exchanging the Double Sided Tape & Putting Panel on the Bezel
APPLICABLE TO:
KDL-22 EX320, EX321, EX325, EX421, EX425, EX520 EX521,
EX523, EX524, EX525
KDL-24 EX320, EX321, EX325, EX421, EX425, EX520 EX521, EX523, EX524, EX525
KDL-26 EX320, EX321, EX325, EX421, EX425, EX520 EX521, EX523, EX524, EX525
KDL-32 EX320, EX321, EX325, EX421, EX425, EX520 EX521,
EX523, EX524, EX525
KDL-40 EX320, EX321, EX325, EX421, EX425, EX520 EX521, EX523, EX524, EX525
KDL-46 EX320, EX321, EX325, EX421, EX425, EX520 EX521, EX523, EX524, EX525
KDL-55 EX320, EX321, EX325, EX421, EX425, EX520 EX521, EX523, EX524, EX525
Click on image.
Because the double sided tape's strength weakens when peeled
off, peel off all tape from Bezel assembly, and stick on new ones.
- Peel off the double sided tape from the panel. Possibly remain on the Bezel side.
- Stick double sided tapes. Peel off separate papers before putting panel on.
- For 32/37/40 & 46"

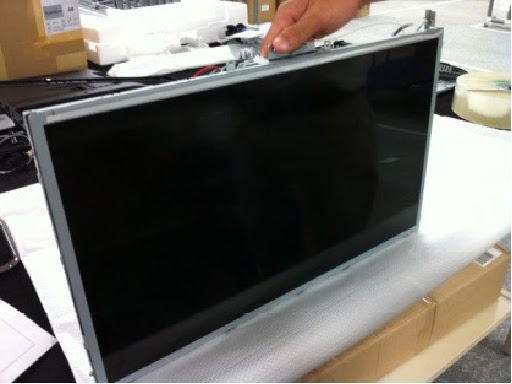

PUTTING PANEL ON THE BEZEL
- Put from upper side adjusting position to L/R side.
- Down panel on the bottom caring about fitting Bezel position ribs and panel cutout area.
Lock with hooks with Bezel / putting on Bracket panel.
