SONY KDL-40W4500_KDL-46W4500_KDL-52W4500_ Service Mode_Adjustments_Service Help
Service adjustments to these models can be performed using the supplied user remote control [RM-ED 011].
- Turn on the Power to the TV, and enter into Standby Mode.
- Press { [i+] => 5 => Vol + => Power} buttons on the remote control in sequence.
- Service mode screen will be displayed as follows:
- Move the the corresponding adjustment item using the "UP or "DN" arrows buttons on the remote control.
- Press " -->" button to enter into the required Menu Item.
- Adjsut the data value, using "UP" or "DN" button on the remote control.
- To go back at any time, press the "Return" button on the remote control.
- Press "Menu" button on the remote control to Quit the Service Mode, after all adjustments have been completed.
Note: To place the remote control in 'Service Mode', press the following buttons together for two seconds.
{ [i+] => 5 => Volume + }
To use the remote control in 'Service Mode', press the 'Rewind' button twice.
"TT" will appear in the bottom right hand corner of the TV.
- To take the remote control out of Service Mode, press the same buttons as described above for two seconds, or, remove the batteries out from the remote control
The following menu appears on the screen, when enter the 'Product Version' menu. Be sure to check all pages.
The following menu appears on the screen, when enter the 'Service Config' menu.
The following menu appears on the screen when enter the set-up menu. Be sure to check all pages.
The following menu will be displayed on the screen, when 'IF adjust' menu is entered.
The following menu appears on the screen, when 'Sound' menu is entered.
The following menu appears, when enter into the 'White Balance' menu.

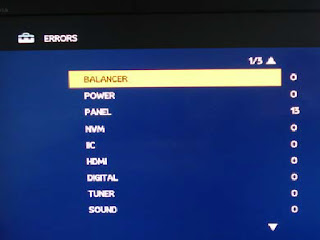

The following menu appears, when enter the 'Error' menu. Be sure to check all pages.
TT MODE
- 'TT' Mode is available by setting the TV and remote control for operation in 'Service Mode'. All functions are described below are available by selecting the two numbers. To Release "TT" mode, press "Menu" key.
00
|
TT mode off
|
03
|
Set volume to 35%
|
04
|
Set volume to 50%
|
05
|
Set the volume to 65%
|
06
|
Set the volume to 80%
|
07
|
Ageing mode On
|
08
|
Shipping contition
|
09
|
WB adj initial condition.
|
19
|
Factory mode toggle [On | Off]
|
25
|
40” FHD//EM model
|
26
|
46” FHD//EM model.
|
27
|
CBA mode toggle [On | Off]
|
31
|
ECS mode toggle [On | Off]
|
32
|
Set BCN channels preset.
|
34
|
HDMI log enable/disable
|
35
|
Hotel mode toggle.
|
38
|
OTRUM mode toggle
|
39
|
Enable digital test
|
41
|
Re-initialize NVM
|
43
|
Select Dual sound A
|
44
|
Select Dual sound B
|
45
|
Select Dual Sound Mono
|
46
|
Select Dual Sound Stereo.
|
48
|
Set NVM as non-virgin
|
49
|
Set NVM as vergin
|
54
|
Watchdog toggle
|
57
|
Gemstar Service Mode [EGIL]
|
58
|
Reset package version
|
59
|
Visual I2C toggle [VCT micro slave mode]
|
61
|
Set 52” FHD//EM model.
|
69
|
WXGA/FHD panel selection.
|
71
|
Auto AGC
|
72
|
VESA/JEIDA panel selection
|
73
|
HDMI number of inputs [ 0 to 2 ]
|
74
|
DDC enable
|
75
|
Set centered balance
|
76
|
Set volume to Max
|
77
|
Set volume to Min
|
78
|
Set balance full left
|
79
|
Set balance full right.
|
81
|
Digital BER display
|
82
|
Digital Service Menu.
|
83
|
Digital color bar output from DENC.
|
84
|
TS CI path through
|
85
|
Digital tuner power down [Only one power cycle, default is
no power down]
|
86
|
Switch between two digital SW banks.
|
87
|
Local keys test
|
88
|
Digital shipping conditions [clear tune database]
|
89
|
LED test
|
91
|
OAD enable/disable toggle
|
92
|
TS CI path through with Reed Solomon off
|
95
|
Ether Check Ping [EG1H]
|
96
|
Digital debug putput enable/disable
|
97
|
Digital 656 output enable/disable
|
98
|
Digital Auto Reset function enable/disable
|
