Wednesday 13 February 2019

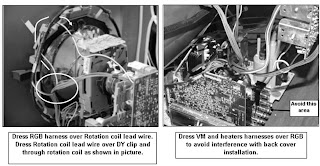

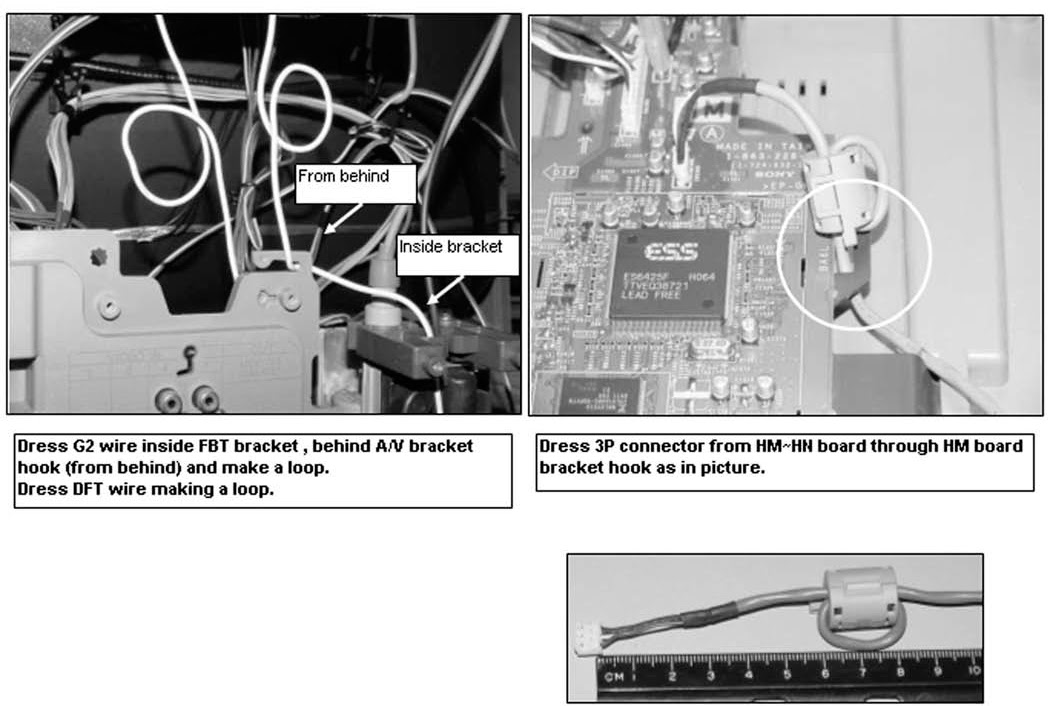

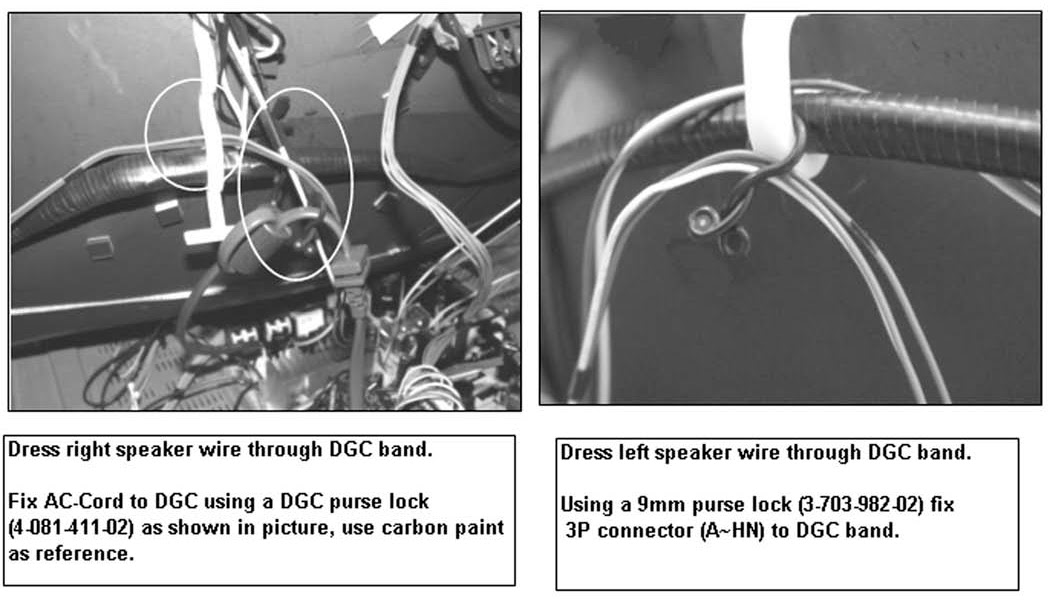

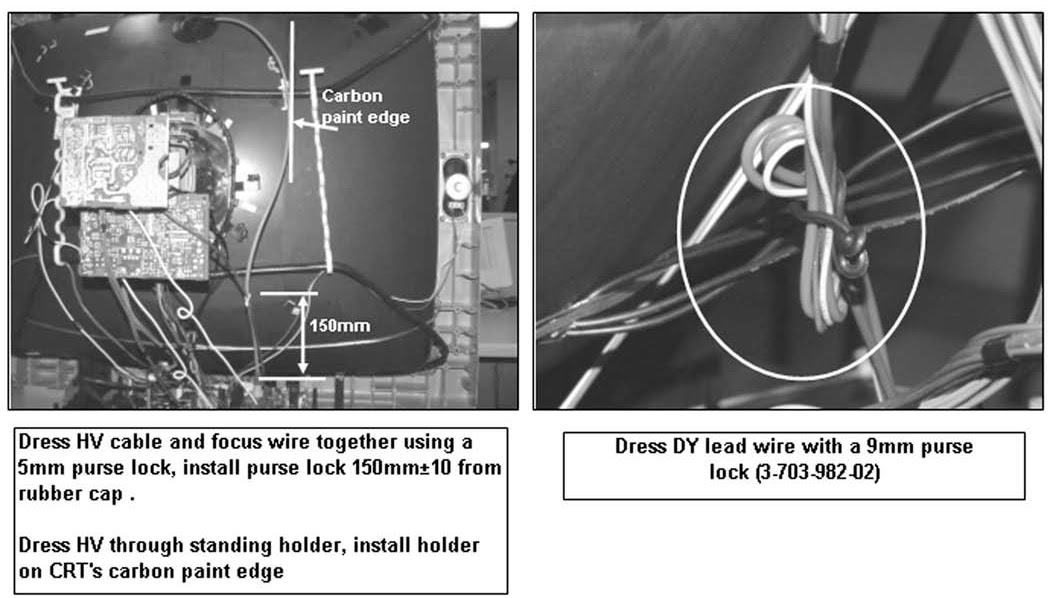

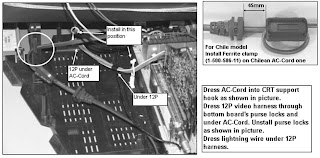

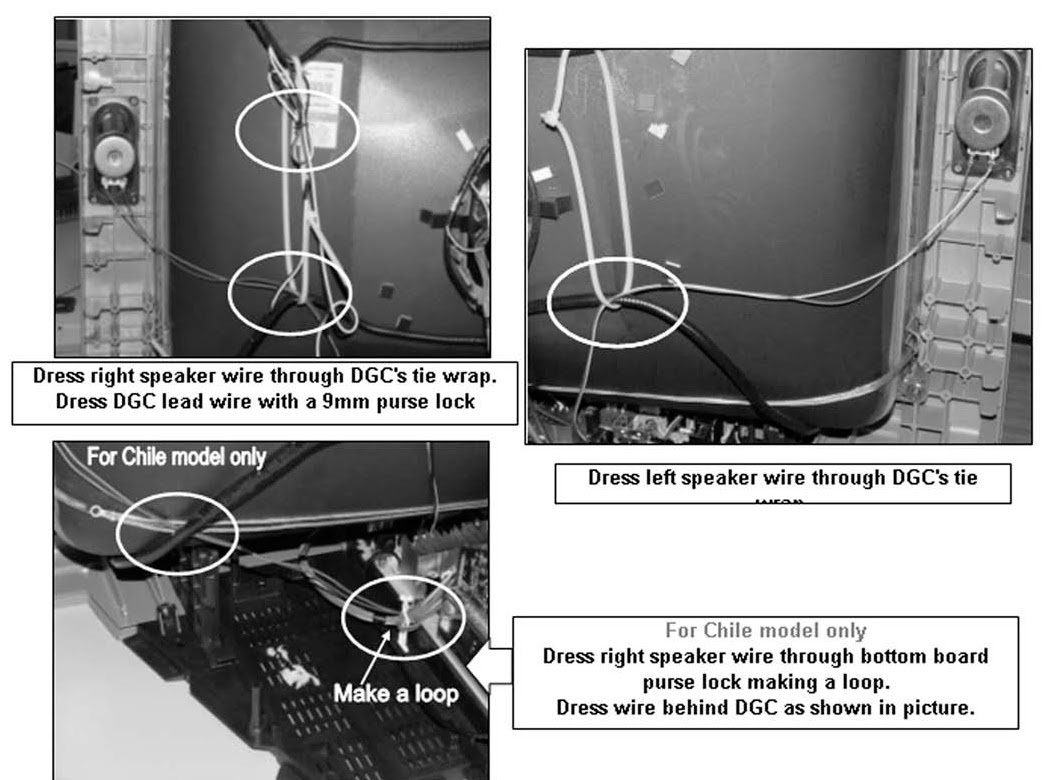

SONY KV-32FS320_ KV-27FS320 _ WIRING DIAGRAM_SERVICE HELP

Stopping the Standby/Timer LED flash

Turn Off the Power switch on the TV main unit or unplug the power cord from the AC outlet.

SELF-DIAGNOSTIC SCREEN DISPLAY

For errors with symptoms such as 'power sometimes shuts off' or 'screen sometimes go out' that cannot be confirmed, it is possible to bring up the past occurrences of the failure on the screen for confirmation.

TO BRING UP SCREEN TEST

In Standby Mode, press buttons on the remote control sequentially, in rapid succession, as shown below
{ Display => Channel-5 => Sound Volume ( -- ) => Power On }
Self diagnosis will be displayed

===========================

SELF DIAGNOSIS

2: +B OCP 0

3: +b OVP 0

4: VSTOP 0

5: AKB 1

9: ZCD 0

10: 9VON 0

101: WDT 0

Serial: xxxxxxx

Model: xxxxxxxx

==========================

HANDLING SELF DIAGNOSTIC DISPLAY

Since the diagnostic results displayed on the screen are not automatically cleared, always check the self diagnostics screen during repairs. After all repair has been completed, clear the result display to "0".

CLEARING THE RESULT DISPLAY

To clear the result display to "0", press buttons on the remote control sequentially when the diagnostic screen is displayed.
{ Channel-8 => Enter }

QUITTING THE SELF DIAGNOSTIC SCREEN

To quit the entire self diagnostic screen, turn Off the Power Switch on the remote control or on the Main Unit.

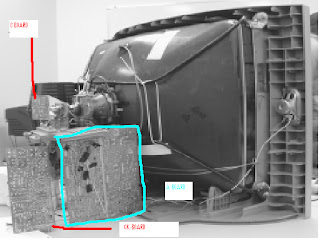

PCB LOCATIONS

DISASSEMBLY

Remove screws marked and pull out the back cover.

Chassis Assembly Removal

Service Position

APPLICABLE TO: KV 27FS320_27FS120_32FS120_32FS320_34FS120_36FS120_36FS320_38FS120 - MODELS.

SELF DIAGNOSTIC FUNCTION [Standby/Power LED blinking codes]

When an error occurs, the Standby/Timer LED will flash a set number of times to indicate the possible cause of problem. If there is more than one error, the LED will identify the first of the problem areas.
Results for all the following diagnostic items are displayed on the screen. No error occurred the screen displays a "0".

Diagnostic item	Lamp flashes	Diagnostic result	Probable cause location	Detected symptoms
Power does not turn on	Does not light	-----------	# Power cord is not plugged in. # Fuse is burned out [F601]. {A board}	# Power does not come on. # No power is supplied to the TV. # AC power supply is faulty.
+B over current protection (OVP)	2 times	2:1 or 2:0	H.OUT [Q502] is shorted. {A board}. # IC702 is shorted {C board}	# Power does not come on. # Load on power line is shorted.
I-Port	4 times	4:1 or 4:0	# +13V is not supplied {A board}. # IC561 faulty {A board}	# Has entered standby state after horizontal raster. # Vertical deflection pulse is stopped. # Power line is shorted or power supply is stopped.
IK (AKB}	5 times	5:1 or 5:0	# IC001 is faulty {M board}. # Screen (G2) is improperly adjusted.	# No raster is generated. # CRT cathode current detection reference pulse output is small.

* If a +B over current is detected, stoppage of vertical deflection is detected simultaneously. The symptom that is diagnosed first by the microcomputer is displayed on the screen.

Stopping the Standby/Power LED Flash

Turn Off the Power switch on the TV main unit or unplug the power cord from the AC outlet to stop it from flashing.

DISASSEMBLY

KV-27FS320 IS PICTURED
