HOW TO DISASSEMBLE DELL E1909 19” LCD MONITOR

HOW TO DISASSEMBLE DELL E1909 19” LCD MONITOR

Dell E1909_19" lCD Monitor_Disassemble Procedure. [Horizontal Frequency: 30 kHz to 83 kHz]
Click on the pictures to Zoom In
DISASSEMBLY
* Put the monitor on the soft plane table, to avoid scrapping the panel.
* Remove the cable cover as the arrow shown.
* To remove stand press the button at the same time pull out the hinge cover follow the arrowhead direction and remove it, then remove the hinge.
* Remove the four screws and remove the base.
* Pry the monitor up then find out the hooks’ position, use the tool (like the picture or other card) to insert into the gap of bezel and rear cover, then turn over the monitor and take off the rear cover.
* Remove the key board: Remove the screws marked in red.
* Disconnect connector remarked in green.

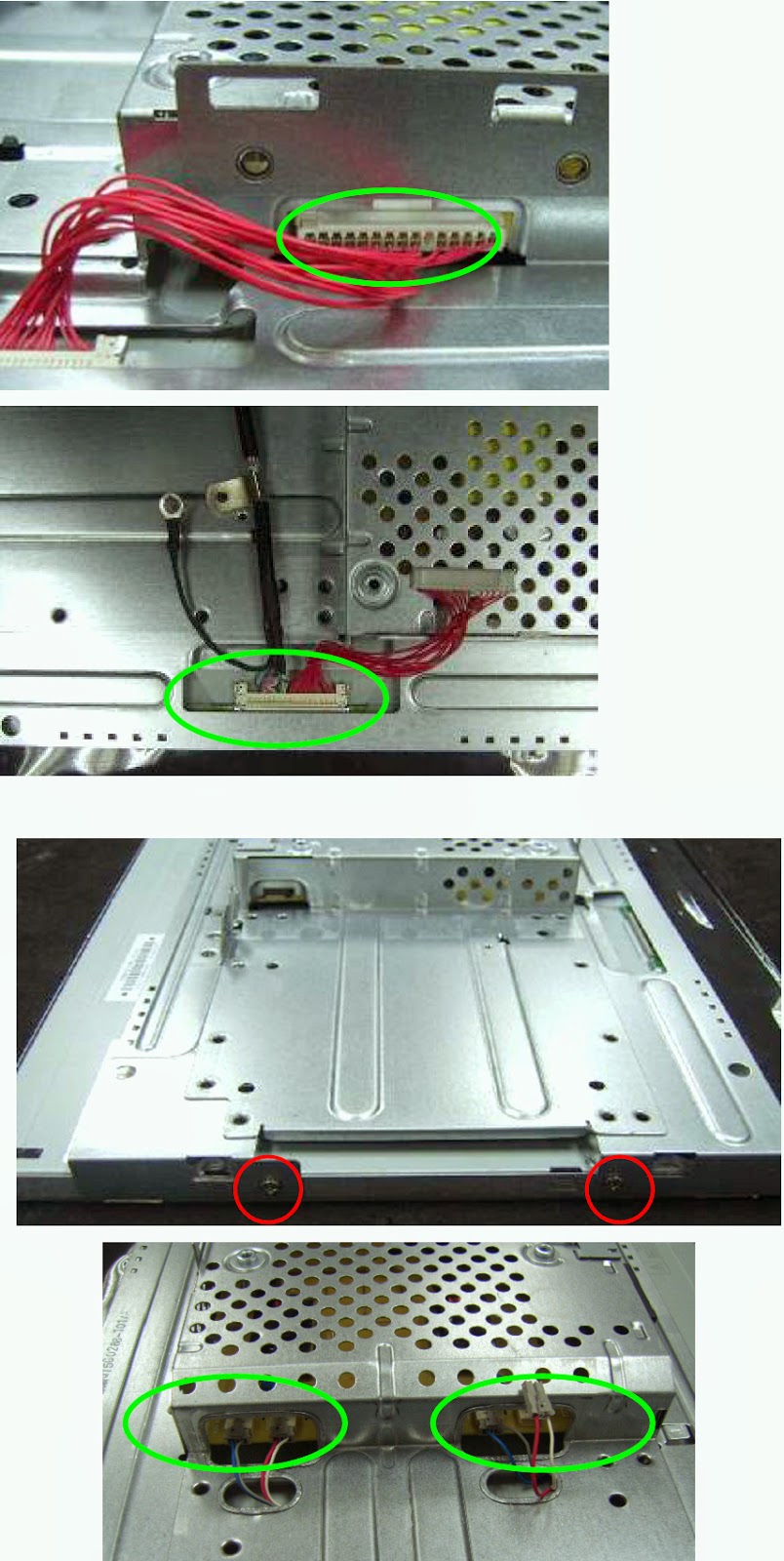

* To remove shield: Remove the four screws and remove the main frame by manual or torque = 3kgF.Cm and disconnect connector marked in green.
*To remove the power board: Remove the screws remarked in red.
