HOW TO DISASSEMBLE OKI B460 MB470 MB480

HOW TO DISASSEMBLE OKI B460_MB470_MB480

Disassemble Roller-Pick-Up, Roller-Feed-Now; Guard-Connector, Connector(9715S-08Z02-G4C); Roller-Feed
* Remove Cassette-Assy.

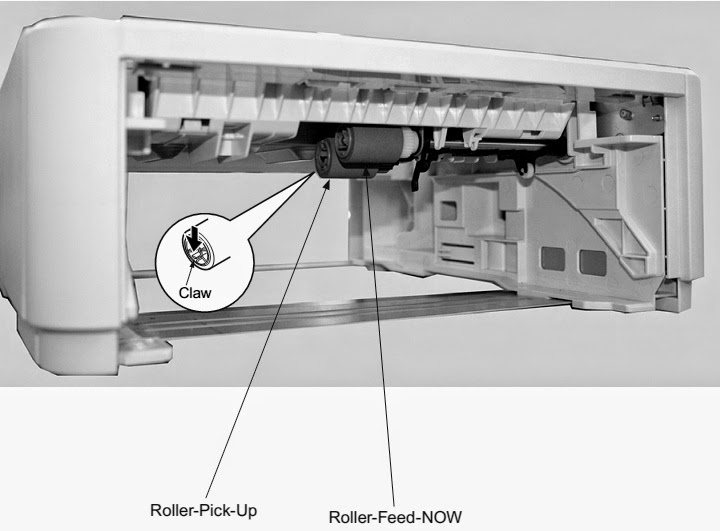

* Push the claw in the direction of the arrow to remove Roller-Pick-Up (1) .
* Push the claw in the direction of the arrow to remove Roller-Feed-NOW (2) .
* As for reinstalling, take the opposite sequence to removal sequence.
> When reinstalling Roller-Pick-Up (1) , push it until it clicks.
> When installing Roller-Feed-Now (2) , push it until it clicks.
Guard-Connector, Connector (9715S-08Z02-G4C)
* Turn off the printer and pull the AC cord. Remove the printer from the device.
* Remove two Screw-Shoulders (1).
* Remove the connector (2) to remove Guard-Connector(3) , Connector (9715S-08Z02-G4C)(4)
As for reinstalling, take the opposite sequence to removal sequence.
Roller-Feed
* Turn off the printer and pull the AC cord. Remove the printer from the device.
* Remove the 4 screws (Black) (1) , Remove the clamp of claw at the 2 places and remove CoverFront (2) .
* Slide the left side of Shaft-Roller-Feed (3) to the front, and remove three Roller-Feeds (4).
