SAMSUNG GT-i9100 HOW TO INSTALL FIRMWARE SOFTWARE - GSM TELEPHONE

HOW TO INSTALL FIRMWARE SOFTWARE - SAMSUNG GT-i9100 GSM TELEPHONE


FIRMWARE [Software] INSTALLATION

Required items in order to install S/W
  1. Installation program: Downloader Program (Odin3 v1.83.exe)
  2. GT-i9100 Mobile Phone
  3. Data Cable
  4. JIG BOX(GH99-36900B)
  5. JIG Cable(GH39-01339A)
  6. Adapter(GH99-38251A)
  7. Serial Cable
  8. Mobile device specific S/W:Binary files.
Settings

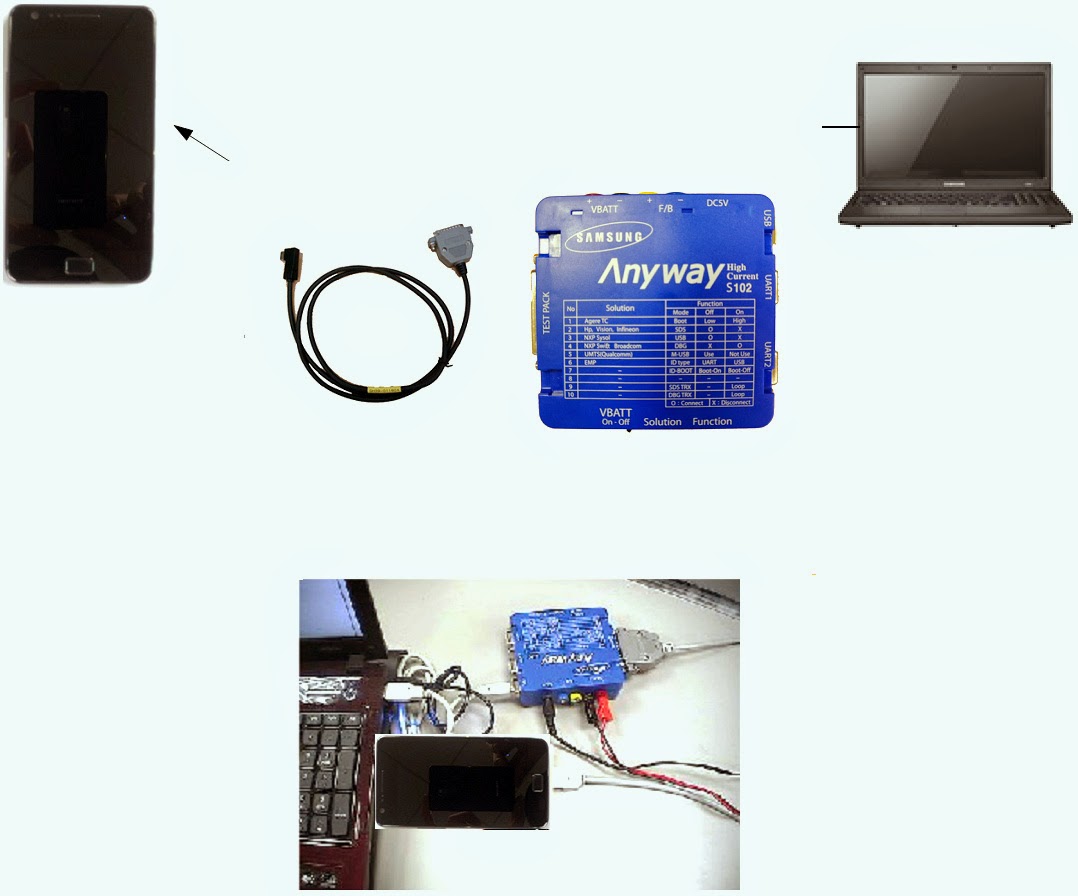

Connect ANYWAY JIG BOX with JIG CABLE (Phone to JIG) or PC to Phone Using Data Cable.
S/W Installation Program (Down-loader program)
Open up the S/W Installation Program by executing the"Odin3 v1.83.exe"
Enable the check mark by click on the following options,
Check Re-Partition, Auto Reboot, and F. Reset Time
Check PIT
Check PDA, PHONE, and CSC Files
S/W installation
Enter into Download Mode
Enter into Download Mode by pressing Volume Down button, OK button, and ON/OFF Button simultaneously.
Connect the device to PC via Data Cable.
Make sure that the one of communication port[ID:COM] box is highlighted in yellow. The device is now connected with the PC and ready to download the binary file into the device.
Start downloading binary file into the device by clicking Start Button on the screen.  the green colored "PASS!" sign will appear on the upper-left box if the binary file has been successfully downloaded into the device.
Disconnect the device from the Data cable.
Once the device boots up, you can check the version of the binary file or name by pressing the following code in sequence; [*#1234#]
You can perform full reset by pressing the following code in sequence; [*2767*3855#]
